EUROLITE Set 2x LED TSL-750 Scan + Case

The article is no longer in our assortment.

No. 20000264

Print product

Product badge

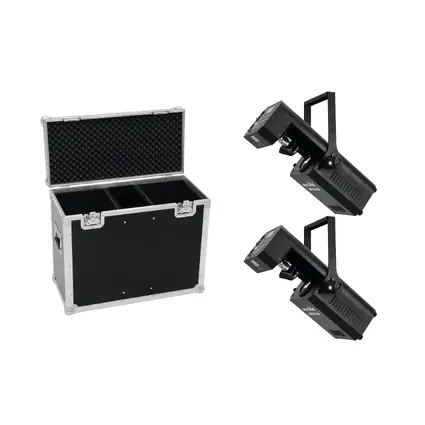

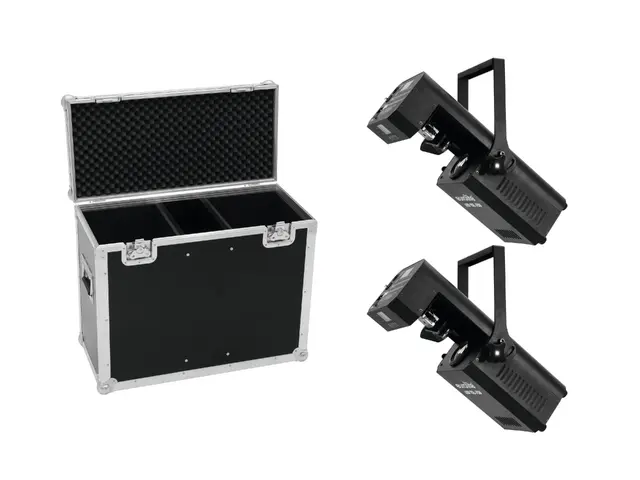

Set consisting of:

2 x EUROLITE LED TSL-750 Scan

1 x ROADINGER Flightcase 2x TSL-750/TSL-1200

Features

EUROLITE LED TSL-750 Scan

Scanner with 75 W LED, gobos, rotating prism, color wheel, motorized focus

Equipped with a 75 W LED
13 or 15 DMX channel mode selectable
DMX-controlled operation or stand-alone operation with Master/Slave function
Sound-controlled via built-in microphone
Internal programs
Color wheel with 8 dichroic color filters and white
Rainbow effect with adjustable speed
Gobo-wheel with 7 rotating gobos plus open
Gobo shake function
Rotating 3-facet prism
Exact positioning via 16 bit PAN/TILT movement resolution
Strobe effect with adjustable speed
Motorized focus
Electronic dimmer
Lightbeam with 14° radiation angle
Control board with graphic LC display and four operating buttons for adjusting the DMX starting address, PAN/TILT reverse
Switch-mode power supply for operation between 100 and 240 Volts
DMX control via every standard DMX controller
1 powerful LED 75 W COB (chip-on-board) cold white (CW)
Exact positioning (16 bit resolution)
Gobos
Gobo effect
Color wheel with 8 dichroic filters plus open
Gobo wheel with rotating gobos, 7 gobos and open
The device is cooled by cooling fan
Control via DMX; stand-alone; sound to light via microphone
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 14°

ROADINGER Flightcase 2x TSL-750/TSL-1200

Trunk case

With 2 device compartments
With accessory compartment
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
2 hinged, chromium plated case handles
Rugged carrying handle
2 chrome tip-over locks
2 high-quality butterfly locks
Made in Germany
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	27,40 kg
EUROLITE LED TSL-750 Scan
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	125 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	1 x 75 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	80° exact positioning (16 bit resolution)
Max. PAN movement:	175° exact positioning (16 bit resolution)
Flash rate:	0 - 18 Hz
Equipment:	Gobos
Color generation:	Color wheel with 8 dichroic filters plus open
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open
DMX channels:	13; 15
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; stand-alone; sound to light via microphone
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	14°
Beam angle (1/2 peak):	14°
Housing color:	Black
Dimensions:	Width: 26 cm Depth: 47,5 cm Height: 22,5 cm
Weight:	6,95 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x TSL-750/TSL-1200
Maximum load:	50 kg
Aluminum profile frames:	30 mm
Case handle:	2 pc/pcs
Carrying handle:	1 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Device compartment:	23 cm x 27 cm x 46 cm
Middle compartment:	10,5 cm x 29 cm x 46 cm
Inside dimensions:	64 cm x 29 cm x 46 cm
Dimensions:	Width: 68,5 cm Depth: 33,5 cm Height: 57 cm
Weight:	13,50 kg
