EUROLITE Set LED KLS-40 + SB-205 Soft Bag

svg
svg
12°
svg
svg
svg
EUROLITE

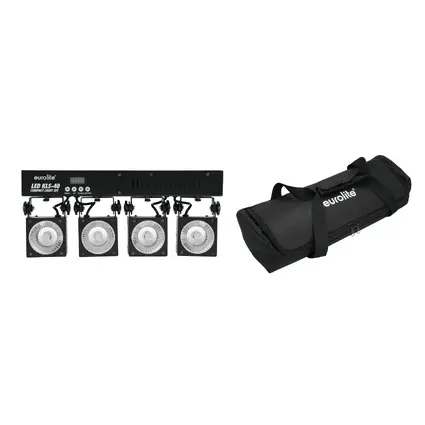

EUROLITE Set LED KLS-40 + SB-205 Soft Bag

Item no. 20000263

Features

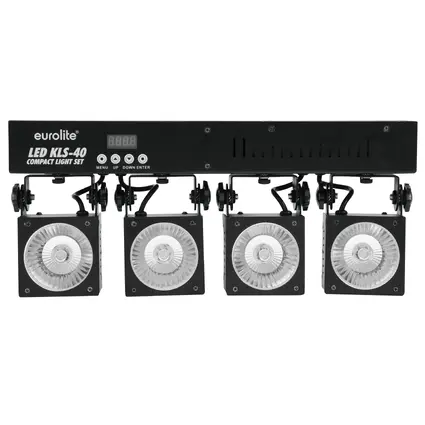

42109605 EUROLITE LED KLS-40 Compact Light Set

DMX LED spotlight set with COB LEDs for mobile use

  • Complete LED light set with four compact LED spots
  • Crossbar with integrated DMX control unit
  • Ultra-light ideally suited for mobile use
  • Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation
  • Comes pre-assembled
  • 1 four color LED per spot (RGBW)
  • Movable and tiltable spotlights
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 2, 3, 4, 6, 16, 20 or 24 DMX channels selectable
  • Sound-control via built-in microphone, microphone sensitivity adjustable
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom fed socket for QuickDMX receiver (see accessories)
  • DMX512 control via regular DMX controller
  • Via DMX, each spot can be individually controlled
  • Functions: RGBW color mixture, color presets, built-in programs, strobe effect with variable speed, dimmer, sound-control, Master/Slave operation
  • Addressing and setting via control panel with 4-digit LED display
  • Suited for installation on a speaker stand (not included) or truss
  • Black lacquered metal version with movable mounting bracket
  • Ideal for bands, stages or solo entertainers
  • Switch-mode power supply for operation between 100 and 240 volts
  • Control: QuickDMX built-in; Stand-alone; DMX
  • Projection: flicker-free

30130580 EUROLITE SB-205 Soft Bag

Universal softbag, 575 x 170 x 120 mm

  • Big universal compartment with divider
  • Ideal for e.g. LED bars with 50 cm length and accessories
  • Interior upholstery helps securing and safeguarding the fixtures during transportation
  • Made of easy-care nylon
  • Two handles with velcro fastener
Technical specifications
42109605 EUROLITE LED KLS-40 Compact Light Set
Power supply:100-240 V AC, 50/60 Hz
Power consumption:115 W
IP classification:IP20
Beam angle:12°
Control:QuickDMX built-in
Stand-alone
DMX
Case color:Black
Width:45 cm
Height:18,5 cm
Depth:12 cm
Weight:3,40 kg
DMX channels:2/3/4/6/16/20/24
DMX connection:3-pin XLR
QuickDMX connection:5-pin XLR
Sound control:via built-in microphone
LED type:COB 30 W
Number of LEDs:4
Beam angle:12°
Dimensions (L x W x H):450 x 120 x 185 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
30130580 EUROLITE SB-205 Soft Bag
Maximum load:25 kg
Color:Black
Material:Textile
Width:57,5 cm
Height:12 cm
Depth:17 cm
Weight:0,30 kg
Packaging units
PU EAN Weight Dimensions
1 4026397594706 4,80 kg 61cm x 31cm x 42cm
