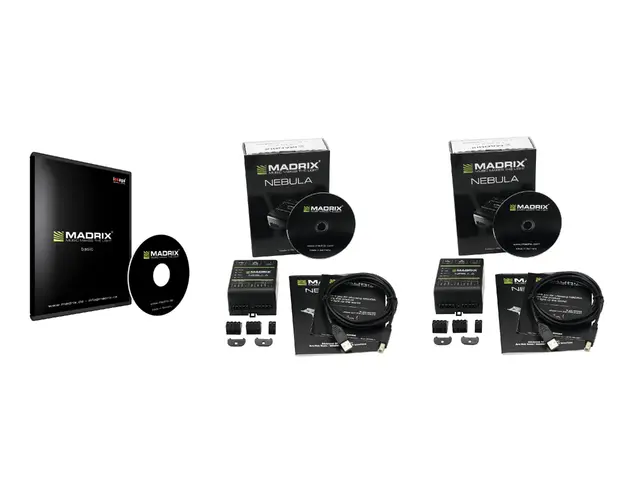

MADRIX Set Bundle 4 KEY basic + 2x NEBULA

MADRIX



MADRIX Set Bundle 4 KEY basic + 2x NEBULA

Item no. 20000232

svg
Features

51860346 MADRIX KEY basic

MADRIX 5 basic licence

  • MADRIX 5 is a powerful, easy-to-use, and award-winning LED lighting control software
  • Allows you to realize all kinds of different LED projects and lighting designs
  • A normal PC/laptop can be used for professional LED control
  • Includes 1x MADRIX KEY and 1x MADRIX 5 License basic
  • Activates output for up to 32x 512 DMX channels (16,384 DMX channels, or 32 DMX universes, for example) and up to 262,144 DVI voxels (512 x 512 voxels, for example)
  • The license is activated via a USB dongle and can be used flexibly on different computers as needed
  • Can be upgraded to higher licenses (up to MADRIX 5 KEY maximum)
  • Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers: Art-Net (I, II, 3, 4) (Unicast & Broadcast), DMX512, Philips Color Kinetics KiNET (V1 / V2), Philips Hue, SPI (via MADRIX NEBULA), Streaming ACN (sACN / E1.31) (Unicast & Multicast), ColourSmart Link, Colorlight A8, Colorlight 5A, Colorlight T9, DVI (VGA, HDMI, etc.), Eurolite T9
  • Even more options are available via converters or bridging tools
  • Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
  • The software generates unique effects, visuals, and animations live and in real time
  • No additional content is required
  • Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, and many more)
  • Analyzes incoming audio signals for Sound2Light and Music2Light in real time (WDM or ASIO)
  • TRI effect category for interactive performances
  • New lighting scenes can easily be created in seconds
  • Supports media server features also: Conveniently load and play back images, pictures, logos, and videos as well as live video signal capturing, screen capturing, scrolling text (ticker), and more
  • Supports audio playback for videos
  • Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
  • Clean and simple user interface with 2 themes (dark and light)
  • DJ-/VJ-like operation with 2 decks (A/B) and a crossfader
  • 256 x 256 Storage Places to organize and store effects
  • 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
  • 2 DVI outputs
  • Controls up to 4 color channels per pixel/voxel (1-channel, 2-channel, RGB, RGBW fixtures, for example)
  • Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
  • Supports Time Code (Art-Net, MIDI, SMPTE, and System Time)
  • Remote control available through industry standards: Art-Net (I, II, 3, 4), CITP, DMX512, GamePort, MA-Net 1 / MA-Net 2, MADRIX I/O, MIDI, Remote HTTP (Web Server), Streaming ACN (sACN / E1.31)
  • Even more options are available via converters or bridging tools
  • Accompanying Fixture Editor including large fixture library
  • Comfortable patching features (incl. Matrix Generator, graphical Patch Editor with background image support, DVI Patch, CSV Fixture List Import, Fixture List Export, and more)
  • Includes various other tools and features (Art-Net Time Code Sender, DMX Fader Tool, DMX Watcher, MIDI Watcher, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
  • Supports various 3rd-party interfaces via aforementioned standards as well as MADRIX hardware interfaces (sold separately)
  • Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0 (optimal system specifications will often be higher)
  • Supported operating systems: Microsoft Windows 7 | 8 | 8.1 | 10 (64 bit only)
  • Package contents: Beautiful, high-quality box including 1x MADRIX KEY, 1x USB flash drive incl. MADRIX 5 Software, 1x lanyard, and 1x quick start guide
  • Installation instructions and software available in English, German, Spanish, French, and Simplified Chinese
  • All user manuals are provided digitally and available in English
  • User manuals also available at help.madrix.com
  • Made in Germany
  • Free software demo mode and more information available at www.madrix.com
  • Made in Germany
  • Power connection: Mains input USB A (M) connectable version
  • Controller useable for: Matrix

51860360 MADRIX NEBULA

USB and Artnet interface to control pixels of LED strips, LED stripes, and LED tape

  • MADRIX NEBULA is a hardware interface to control your digital LED strips, LED stripes, and LED tape
  • It is an advanced SPI converter and LED pixel tape driver
  • Supports a wide range of LEDs: APA101 / APA102 / APA104 / APA106 / GW6201 / GW6205 / LPD1882S / LPD6803 / LPD8806 / MBI6120 / P9883 / SJ1221 / SK6812 / SK6822 / SM16703 / SM16716 / TLS3001 / TLS3008 / TM1804 / TM1809 / TM1812 / TM1814 / TM1829 / UCS1903 / UCS512B3, UCS8904, UCS9812S, WS2801 / WS2803 / WS2811 / WS2811S / WS2812 / WS2812B / WS2813 / WS2815 / WS2818 / WS2822S / WS2822S Addressing (As of July 2018)
  • Additional LED types will be supported with future firmware updates
  • Drives up to 1360 RGB pixels (8 DMX universes / 4096 DMX Channels / 4096 single-color pixels / 1024 RGBW pixels) distributed equally over 2 ports
  • Supports a signal frequency of up to 24 MHz
  • The output protocol can be set separately for each of the 2 ports
  • Directly connects to the LEDs via 4-pin screw terminals
  • Provides flexible power options: over USB (5 V) or via screw terminal (5 V to 24 V / 12 A) as well as routing through to LEDs with up to 6 A maximum load per port with various options on how to connect LEDs, power, and MADRIX NEBULA
  • Receives data over Ethernet network (Art-Net and/or Streaming ACN)
  • Can also be used as MADRIX USB interface
  • Works great with the MADRIX Software (sold separately) with quick and easy installation
  • Sync Mode: MADRIX Software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
  • Complies with the official specifications of Art-Net and Streaming ACN and can be used as regular network unit with other 3rd-party consoles, controllers, or software solutions
  • Automatic HTP merging for two Art-Net sources
  • 2 Ethernet ports with daisy chain support for the data connection without using a separate network switch or router
  • Useful settings for channels per universe, start channel, channel order, and output in case of connection loss, and more
  • 9 status LEDs, which can be turned off
  • Built-in web page for simple on-device configuration
  • Can be mounted on 35 mm DIN rails or walls via the provided wall mount brackets
  • Non-conductive enclosure with IP20 and UL94 V-O flammability rating
  • Fanless, noiseless, and low-energy design
  • Ready within seconds after startup
  • Recommended for any small or large project
  • Multiple devices can be used together without problems
  • The firmware is upgradable for future features
  • Quick start guide / technical manual available in English and German
  • User manuals also available at help.madrix.com
  • Made in Germany
  • More information available at www.madrix.com
  • Made in Germany
  • Power connection: Mains input USB, type B Power supply cord for USB A mains connection (provided)
  • Controller useable for: Matrix
Technical specifications
51860346 MADRIX KEY basic
Weight:0,06 kg
Power connection:Mains input USB A (M) connectable version
51860360 MADRIX NEBULA
Power supply:DC 5 V - 24 V, A) via 2-pin screw terminal (12 A max.), B) via 5 V USB, C) via Port 1 or 2 sourced from LEDs; 6 A max. load per port when supplying through to LEDs
Power consumption:< 1.5 W during normal operation (300 mA max.)
Data output:8x 512 channels SPI TTL (Maximum output per port: 680 RGB LEDs / 512 RGBW LEDs / 2048 1-channel LEDs)
Ports:2x ports (via 2x 4-pin screw terminals)
Supported LEDs:APA101, APA102, APA104, APA106, GW6201, GW6205, LPD1882S, LPD6803, LPD8806, MBI6120, P9883, SJ1221, SK6812, SK6822, SM16703, SM16716, TLS3001, TLS3008, TM1804, TM1809, TM1812, TM1814, TM1829, UCS1903, UCS512B3, UCS8904, UCS9812S, WS2801, WS2803, WS2811, WS2811S, WS2812, WS2812B, WS2813, WS2815, WS2818, WS2822S, WS2822S Addressing (As of July 2018 - see www.madrix.com for the latest information)
Ethernet:2x RJ45, Auto MDI-X, 10/100 MBit/s (compatible with 1 GBit/s)
USB:USB 2.0, type B port
Case:Non-conductive, IP20, UL94 V-0 flammability rating, designed for 35 mm DIN rails or wall mounting
Dimensions:92 mm x 70 mm x 45 mm (length x width x height)
Temperature range:- 10 °C to 70 °C (Operating) | - 20 °C to 85 °C (Storage)
Relative humidity:5 % to 80 %, non-condensing (Operating / Storage)
Weight:0,130 kg
Height:4,5 cm
Depth:9,2 cm
Width:7 cm
Power connection:Mains input USB, type B Power supply cord for USB A mains connection
Packaging units
PU EAN Weight Dimensions
1 4260263423046
1 4026397593334
