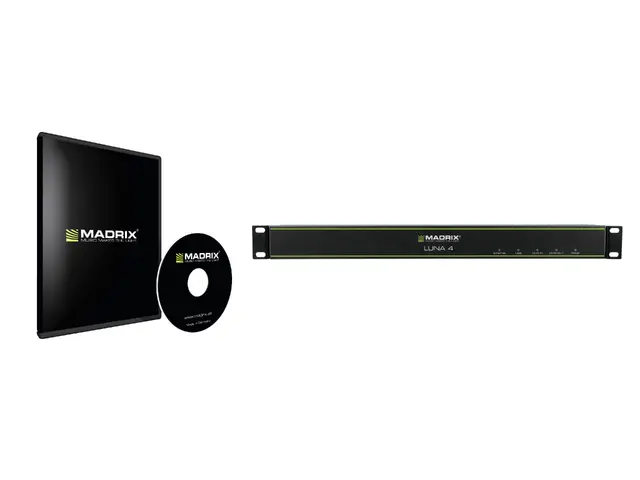

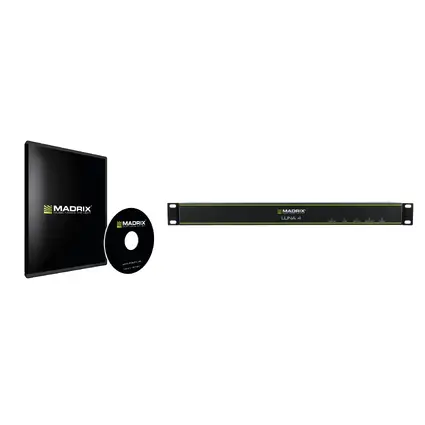

MADRIX Set Bundle 3 KEY entry + LUNA 4

Item no. 20000231

Features

51860344 MADRIX KEY entry

MADRIX KEY + MADRIX 5 License entry

  • Includes 1x MADRIX KEY and 1x MADRIX 5 License entry
  • MADRIX 5 is a powerful, easy-to-use, and award-winning LED lighting control software
  • Allows you to realize all kinds of different LED projects and lighting designs
  • A normal PC/laptop can be used for professional LED control
  • Activates output for up to 8x 512 DMX channels (4,096 DMX channels, or 8 DMX universes, for example) and up to 16,384 DVI voxels (a resolution of 128 x 128 pixels, for example)
  • The license is activated via a USB dongle and can be used flexibly on different computers as needed
  • Can be upgraded to higher licenses (up to MADRIX 5 KEY maximum)
  • Online activation is initially required one time
  • Only one MADRIX 5 License is possible per MADRIX KEY
  • Only one MADRIX 5 KEY can be connected to the software
  • Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers: Art-Net (I, II, 3, 4) (Unicast & Broadcast), DMX512, Philips Color Kinetics KiNET (V1 / V2), Philips Hue, SPI (via MADRIX NEBULA), Streaming ACN (sACN / E1.31) (Unicast & Multicast), ColourSmart Link, Colorlight A8, Colorlight 5A, Colorlight T9, DVI (VGA, HDMI, and more), Eurolite T9
  • Even more options are available via converters or bridging tools
  • Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
  • The software generates unique effects, visuals, and animations live and in real time
  • No additional content is required
  • Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, and many more)
  • Analyzes incoming audio signals for Sound2Light and Music2Light in real time (WDM or ASIO)
  • TRI effect category for interactive performances
  • New lighting scenes can easily be created in seconds
  • Supports media server features also: Conveniently load and play back images, pictures, logos, and videos as well as live video signal capturing, screen capturing, scrolling text (ticker), and more
  • Supports audio playback for videos
  • Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
  • Clean and simple user interface with 2 themes (dark and light)
  • DJ-/VJ-like operation with 2 decks (A/B) and a crossfader
  • 256 x 256 Storage Places to organize and store effects
  • 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
  • 2 DVI outputs
  • Controls up to 4 color channels per pixel/voxel (1-channel, 2-channel, RGB, RGBW fixtures, for example)
  • Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
  • Supports Time Code (Art-Net, MIDI, SMPTE, and System Time)
  • Input, interoperability, and remote control available through industry standards: Art-Net (I, II, 3, 4), Blackmagic Design (DeckLink, Intensity, and more), CITP, DMX512, GamePort, MA-Net 1 / MA-Net 2, MADRIX I/O, MIDI, NewTek NDI (Send & Receive), Remote HTTP (Web Server), Spout (Send & Receive), Streaming ACN (sACN / E1.31)
  • Even more options are available via converters or bridging tools
  • Accompanying Fixture Editor including large fixture library
  • Comfortable patching features (incl. Matrix Generator, graphical Patch Editor with background image support, DVI Patch, CSV Fixture List Import, Fixture List Export, and more)
  • Includes various other tools and features (Art-Net Time Code Sender, DMX Fader Tool, DMX Watcher, MIDI Watcher, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
  • Supports various 3rd-party interfaces via aforementioned standards as well as MADRIX hardware interfaces (sold separately)
  • Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0 (optimal system specifications will often be higher)
  • Supported operating systems: Microsoft Windows 7 | 8 | 8.1 | 10 (64 bit only)
  • Package contents: Beautiful, high-quality box including 1x MADRIX KEY, 1x USB flash drive incl. MADRIX 5 Software, 1x lanyard, and 1x quick start guide
  • Software and installation instructions available in English, German, Spanish, French, and Simplified Chinese
  • All user manuals are provided digitally and available in English
  • User manuals also available at help.madrix.com
  • Made in Germany
  • Free software demo mode and more information available at www.madrix.com

70064844 MADRIX LUNA 4 Port USB / Art-Net Node

Artnet and USB interface to issue 4 DMX universes

  • MADRIX LUNA 4 is an easy-to-use and reliable network node with unique features to control lighting fixtures
  • Supports Art-Net as well as Streaming ACN (sACN)
  • Can also be used as MADRIX USB interface
  • The device distributes DMX512 data over long or short distances using Ethernet network or USB
  • 4 XLR ports (5-pin, female) distribute 4 DMX universes per unit (2048 DMX channels)
  • 1 XLR port (5-pin, male) is always available for DMX input (512 DMX channels)
  • Works great with the MADRIX Software with quick and easy installation (sold separately)
  • Sync Mode: MADRIX Software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
  • Complies with the official specifications of Art-Net and Streaming ACN and can be used as regular network unit with other 3rd-party consoles, controllers, or software solutions
  • Fanless, noiseless, low-energy design
  • 19" metal case (1U) including brackets for rack mounting
  • Ready within seconds after startup
  • Automatic HTP merging for two Ethernet sources
  • 5 status LEDs, which can be turned off
  • Built-in web page for simple on-device configuration
  • Recommended for any small or large installation
  • Many LUNA 4/8/16 can be used together without problems
  • Quick start guide / technical manual available in English and German
  • User manuals also available at help.madrix.com
  • Made in Germany
  • More information available at www.madrix.com
  • PC connect: USB
  • Housing design: (19") 48.3 cm rack installation 1 U
  • Made in Germany
Technical specifications
70064844 MADRIX LUNA 4 Port USB / Art-Net Node
Power supply:100-240 V AC, 50/60 Hz
Power consumption:5,00 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
DMX channels:Input 512
Output 2048
DMX input:1 x 5-pin XLR (M) mounting version NEUTRIK
DMX output:4 x 5-pin XLR (F) mounting version NEUTRIK
USB port:)2.0, Typ B
Housing design:(19") 48.3 cm rack installation 1 U
Width:48,3 cm
Height:4,45 cm
Depth:7,6 cm
Weight:1,63 kg
Ethernet (Art-Net):RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON
Packaging units
PU EAN Weight Dimensions
1 4260263423039
