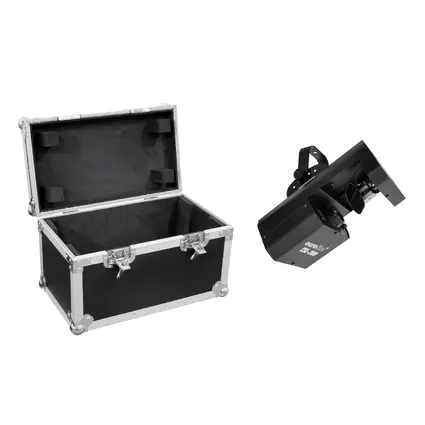

EUROLITE Set LED TSL-200 Scan COB + Case

svg
13°
svg
6 mm
svg
svg
svg
svg
EUROLITE



EUROLITE Set LED TSL-200 Scan COB + Case

only a few items available
249,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000216

Features

51786123 EUROLITE LED TSL-200 Scan COB

Scanner with 20 W COB LED, rotating gobos and color wheel

  • Equipped with a 20 W COB LED
  • Long LED life
  • Comparable to the light output of a 250 W halogen lamp
  • DMX-controlled operation or stand-alone operation with Master/Slave function (up to 4 slaves)
  • 14 motion macros can be called up via DMX controller
  • Sound-controlled via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control
  • Fuzzy sound control: program continues automatically during periods without music or bass-beat
  • 7 brilliant, dichroic colors plus white
  • Rainbow effect with adjustable speed
  • Gobo-wheel with 7 rotating gobos plus open
  • With gobo-shake function
  • Strobe effect with 1-18 flashes per second
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Manual focus
  • Dimmer
  • Fan-cooled
  • Small and portable
  • Lightbeam with 13° radiation angle
  • Control board with 4-digit display for adjusting the DMX-starting address, Pan/Tilt-Reverse
  • 6.3 mm jack socket for remote control
  • Blackout, gobos, colors and Auto/Manual Mode applicable in Stand Alone mode via optional EUROLITE RC-1 remote control
  • Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
  • DMX control via every standard DMX controller
  • LED: 1 x COB (chip-on-board) 20 W Color wheel
  • Control: Sound to light viaMicrophone; DMX; Stand-alone
  • Effect: Gobo effect

31000630 ROADINGER Flightcase TSL-100/200

Flightcase for 1 x TSL-100 or TSL-200

  • Suitable for one unit (with mounted TH-50 theatre hook at the mounting bracket)
  • Interior and cover (not removable) upholstered with foam
  • High-quality workmanship with 5 mm plywood multilayered glued, black laminated
  • Aluminum profile frames (22 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners (chrome)
  • 2 butterfly locks (chrome)
  • 1 hinged, chrome case handle
Technical specifications
51786123 EUROLITE LED TSL-200 Scan COB
Power supply:230 V AC, 50 Hz
Power consumption:70 W
LED:1 x COB (chip-on-board) 20 W Color wheel
Flash rate:0 - 18 Hz
Equipment:Focus manual
Gobos:rotating gobo wheel with 7 gobos and open
outside diameter 25mm
image diameter 20mm
Shake effect
DMX channels:9
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Cooling fan:Yes
Control:Sound to light via Microphone
DMX
Stand-alone
Beam angle:13°
Case color:Black
Width:20,5 cm
Height:30 cm
Depth:39 cm
Weight:6,20 kg
DMX connection:3-pin XLR
Color-wheel:7 colors and open
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31000630 ROADINGER Flightcase TSL-100/200
Maximum load:50 kg
Color:Black laminated
Material:Glued plywood 6 mm
Strength:6 mm
Width:48 cm
Height:27,5 cm
Depth:25,5 cm
Weight:4,60 kg
Inside dimensions (W x D x H):375 x 210 x 170 mm
Packaging units
PU EAN Weight Dimensions
1 4026397591507
