EUROLITE Set 4x LED BAR-252 RGB 10mm 20° white + Case

7 mm

20°

The article is no longer in our assortment.

No. 20000210

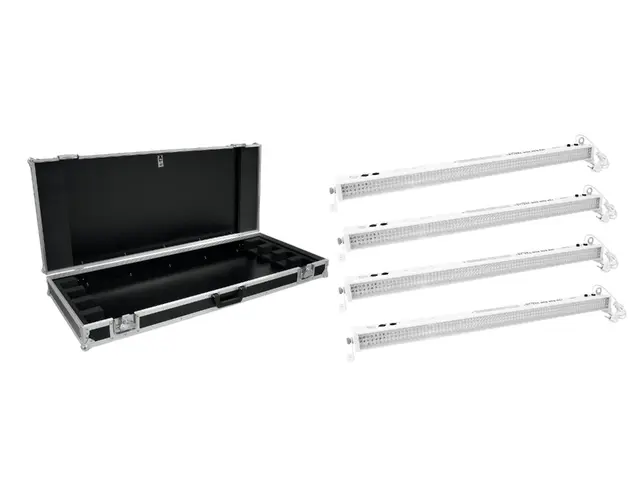

Set consisting of:

4 x EUROLITE LED BAR-252 RGB 10mm 20° white

1 x ROADINGER Flightcase 4x LED BAR-252 RGB

Features

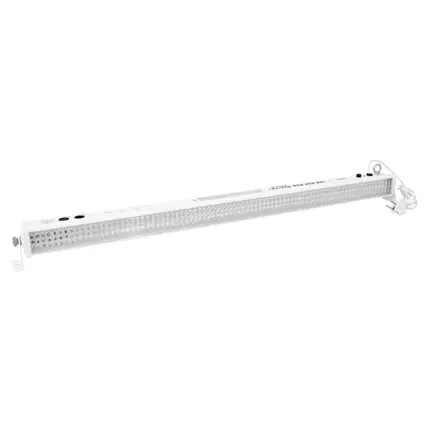

EUROLITE LED BAR-252 RGB 10mm 20° white

LED bar with 252 LEDs

DMX512 control via regular DMX controller
Sound-control via built-in microphone
Stand-alone mode functions adjustable via DIP switches
Color-change speed and strobe effect adjustable via DIP switches
Multi-color color-changes
Master/Slave function
Ideal for bands, stages or solo entertainers
Perfect in public places, main halls, lounges
Illuminants: 252 10 mm LEDs (48 x red, 108 x green and 96 x blue)
Available in 2 LED beam angles: 20° or 40°
Advantages of LED technology: long life of the LEDs, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
Strobe effect
Control via DMX
Preprogrammed in LED PC-Control 512
With a beam angle of 20°

ROADINGER Flightcase 4x LED BAR-252 RGB

Carrying case, PRO version

High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
Rugged carrying handle
2 chrome tip-over locks
2 high-quality butterfly locks
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	18,30 kg
EUROLITE LED BAR-252 RGB 10mm 20° white
Power supply:	230 V AC, 50 Hz
Power consumption:	50,00 W
IP classification:	IP20
Lamp type:	LED lamp
DMX channels:	12
Control:	DMX
Preprogrammed in:	LED PC-Control 512
Beam angle:	20°
Beam angle (1/2 peak):	20°
Housing color:	White
Dimensions:	Length: 107 cm Depth: 6,5 cm Height: 9 cm
Weight:	2,25 kg
DMX channels:	12
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED number:	252
Beam angle:	20°
Dimensions (L x W x H):	1070 x 65 x 90 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x LED BAR-252 RGB
Maximum load:	25 kg
Aluminum profile frames:	30 mm
Carrying handle:	1 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Inside dimensions:	106,5 cm x 44 cm x 7,5 cm
Device compartment:	106,5 cm x 6,5 cm x 7,5 cm
Dimensions:	Width: 114,5 cm Depth: 47,5 cm Height: 14,5 cm
Weight:	9,30 kg
