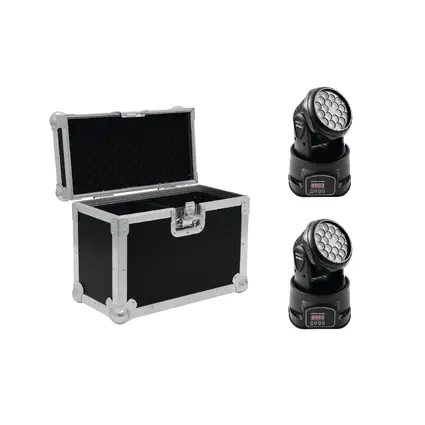

EUROLITE Set 2x LED TMH-7 + Case

svg
25°
svg
7 mm
svg
svg
svg
EUROLITE



EUROLITE Set 2x LED TMH-7 + Case

only a few items available
469,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000206

Features

51785973 EUROLITE LED TMH-7 Moving Head Wash

Compact washlight with 3 W tricolor LEDs and RGB color mixing

  • Equipped with 18 x 3 W tricolor LEDs with RGB colors
  • Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
  • Compact lightweight
  • Positioning within 540° PAN and 180° TILT
  • Stepless RGB color mixture
  • 6 color macros can be called up via DMX controller
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone
  • Control board with 4-digit LED display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
  • DMX control via every standard DMX controller
  • Control: Sound to light via Microphone; DMX; Stand-alone

31001062 ROADINGER Flightcase 2x TMH-6/7/8/9

PRO flightcase for 2 TMHs (6-9)

  • Compartments for two TMH Moving-Heads
  • Suitable for 51785962 EUROLITE LED TMH-6 Moving-Head Spot, 51785973 EUROLITE LED TMH-7 Moving-Head Wash, 51785963 EUROLITE LED TMH-8 Moving-Head Spot, 51785964 EUROLITE LED TMH-9 Moving-Head Wash, 51785959 EUROLITE LED TMH-PK Moving-Head Wash
  • Detachable compartments - case can also be used as universal transport case
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 1 butterfly lock
  • 1 case handles
  • Additional dimensions: Compartment dimensions 18x18x23,5 cm
  • Additional dimensions: Inside dimensions 37x18x23,5 cm
  • Made in Europe
Technical specifications
51785973 EUROLITE LED TMH-7 Moving Head Wash
Power supply:230 V AC, 50 Hz
Power consumption:75 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
LED:18 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Beam angle:25°
Max. TILT movement:Exact positioning (16 bit resolution) 180°
Max. PAN movement:Exact positioning (16 bit resolution) 540°
Flash rate:0 - 18 Hz
DMX channels:11
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling fan:Yes
Control:Sound to light via Microphone
DMX
Stand-alone
Housing color:Black
Width:17,5 cm
Height:24,5 cm
Depth:17,5 cm
Weight:3,10 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31001062 ROADINGER Flightcase 2x TMH-6/7/8/9
Maximum load:25 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Additional dimensions:Compartment dimensions 18x18x23,5 cm
Inside dimensions 37x18x23,5 cm
Strength:7 mm
Width:41 cm
Height:33,5 cm
Depth:22 cm
Weight:4,15 kg
