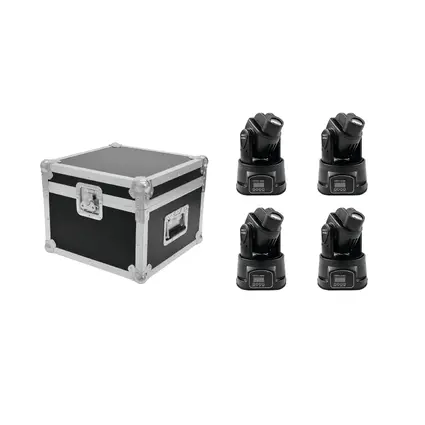

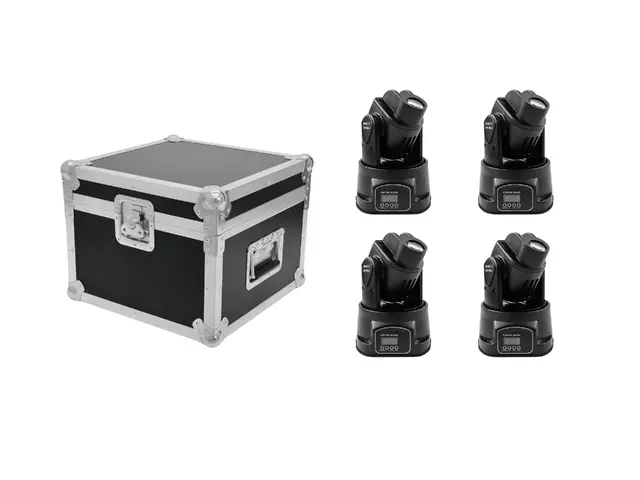

EUROLITE Set 4x LED TMH-8 + Case

svg
svg
svg
svg
7 mm
svg
svg
svg
13°
svg
svg
EUROLITE



EUROLITE Set 4x LED TMH-8 + Case

Item no. 20000203

Features

51785963 EUROLITE LED TMH-8 Moving Head Spot

Powerful QCL Moving Head with a 10 W CREE quadcolor LED with RGBW colors

  • Equipped with a 10 W CREE quadcolor LED with RGBW colors
  • Compact lightweight
  • 14 or 5 DMX channels selectable for numerous applications
  • Positioning within 540° PAN and 230° TILT
  • Stepless RGBW color mixture
  • Color-macro-function for an easy selection of possible color-combinations
  • Gobo-wheel with 9 static gobos plus open
  • With gobo-shake function
  • Rainbow-effect with adjustable speed
  • Programmable color-change speed and strobe effect
  • Strobe effect with 1-10 flashes per second
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN-angle switchable between 540°, 360° and 180° (in sound and auto mode)
  • TILT-angle switchable between 230°, 180° and 90° (in sound and auto mode)
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 8 motion macros can be called up via DMX controller
  • Sound-control via built-in microphone
  • Addressing via control panel with 4-digit LED display
  • DMX control via every standard DMX controller
  • LED: 1 x SMD 10 W 4in1 QCL RGBW (homogenous color mix)
  • Gobo wheel with static gobos, 9 gobos and open
    shake effect
  • Can be operated in 14; 5 CH mode
  • The device is cooled by cooling fan
  • Controling by Sound to light via Microphone; Sound to light via Microphone; Stand-alone; DMX
  • Effect: Gobo effect; Single Beam

31001064 ROADINGER Flightcase 4x TMH-6/7/8/9

PRO flightcase for 4 TMHs (6-9)

  • Compartments for four TMH Moving-Heads
  • Suitable for 51785962 EUROLITE LED TMH-6 Moving-Head Spot, 51785973 EUROLITE LED TMH-7 Moving-Head Wash, 51785963 EUROLITE LED TMH-8 Moving-Head Spot, 51785964 EUROLITE LED TMH-9 Moving-Head Wash, 51785959 EUROLITE LED TMH-PK Moving-Head Wash
  • Detachable compartments - case can also be used as universal transport case
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 1 butterfly lock
  • 2 case handles
  • Made in Europe
Technical specifications
Weight:19.55 kg
51785963 EUROLITE LED TMH-8 Moving Head Spot
Power supply:230 V AC, 50 Hz
Power consumption:35 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
LED:1 x SMD 10 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:Exact positioning (16 bit resolution) 230° Positioning switchable to 180° and 90°
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 360° and 180°
Flash rate:1 - 10 Hz
Equipment:Gobos; color wheel
Gobos:Gobo wheel with static gobos, 9 gobos and open
Shake effect
DMX channels:14; 5
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Sound to light via Microphone
Sound to light via Microphone
Stand-alone
DMX
Beam angle:13°
Beam angle (1/2 peak):13°
Housing color:Black
Width:17 cm
Height:24.5 cm
Depth:17.5 cm
Weight:3.20 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31001064 ROADINGER Flightcase 4x TMH-6/7/8/9
Maximum load:50 kg
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Additional dimensions:Compartment dimensions 18 cm x 17.5 cm x 20.5 cm
Inside dimensions 37 cm x 37 cm x 20.5 cm
Width:42.5 cm
Height:32.5 cm
Depth:42.5 cm
Weight:6.75 kg
