EUROLITE Set 4x LED TMH-7 + Case

EUROLITE

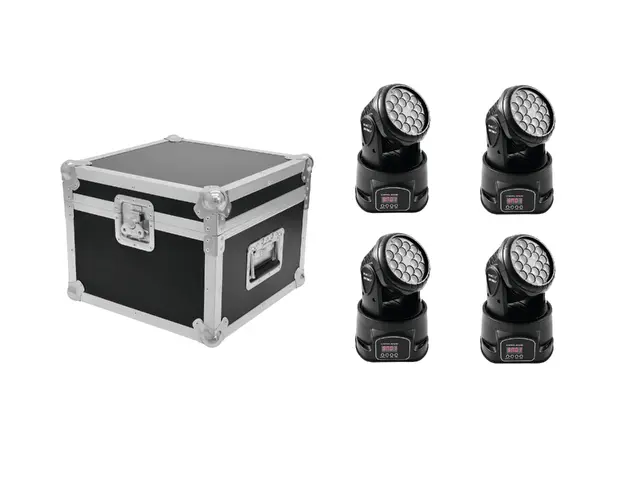

EUROLITE Set 4x LED TMH-7 + Case

Stock for approx. 12 wk(s)
799,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000202

Features

51785973 EUROLITE LED TMH-7 Moving Head Wash

Compact washlight with 3 W tricolor LEDs and RGB color mixing

  • Equipped with 18 x 3 W tricolor LEDs with RGB colors
  • Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
  • Compact lightweight
  • Positioning within 540° PAN and 180° TILT
  • Stepless RGB color mixture
  • 6 color macros can be called up via DMX controller
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone
  • Control board with 4-digit LED display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
  • DMX control via every standard DMX controller
  • LED: 18 x High power standard 3 W 3in1 TCL RGB Homogenous colormix
  • Control: Sound to light via microphone; DMX; Stand-alone
  • Power supply of device: Mains Input Socket (M) provided fehlt

31001064 ROADINGER Flightcase 4x TMH-6/7/8/9

PRO flightcase for 4 TMHs (6-9)

  • Compartments for four TMH Moving-Heads
  • Suitable for 51785962 EUROLITE LED TMH-6 Moving-Head Spot, 51785973 EUROLITE LED TMH-7 Moving-Head Wash, 51785963 EUROLITE LED TMH-8 Moving-Head Spot, 51785964 EUROLITE LED TMH-9 Moving-Head Wash, 51785959 EUROLITE LED TMH-PK Moving-Head Wash
  • Detachable compartments - case can also be used as universal transport case
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 1 butterfly lock
  • 2 case handles
  • Made in Europe
Technical specifications

51785973 EUROLITE LED TMH-7 Moving Head Wash

Power supply:230 V AC, 50 Hz
DMX channels:11
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Flash-rate:18 Hz
LED number:18
LED type:3 W RGB (3in1)
Beam angle:25°
Maximum PAN-movement:540°
Maximum TILT-movement:180°
Dimensions (L x W x H):175 x 175 x 245 mm
DMX channels:11
Power consumption:75 W
Max. TILT movement:Exact positioning (16 bit resolution) 180°
Max. PAN movement:Exact positioning (16 bit resolution) 540°
Weight:3 kg
Lamp type:LED lamp
Cooling fan:Yes
IP classification:IP20
Beam angle:25°
Height:24,5 cm
Depth:17,5 cm
Width:17,5 cm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting

31001064 ROADINGER Flightcase 4x TMH-6/7/8/9

Strength:7 mm
Outside dimensions (W x D x H):425 x 425 x 325 mm
Inside dimensions (W x D x H):370 x 370 x 205 mm
Compartment dimensions (W x D x H):180 x 175 x 205 mm
Maximum load:50 kg
Weight:6,75 kg
Width:42,5 cm
Color:Dark brown laminated
Depth:42,5 cm
Height:32,5 cm
Material:Birch multiplex 7 mm
Packaging units
PU EAN Weight Dimensions
1 4026397591330
