EUROLITE Set 6x LED TMH-9 + Case

svg
18°
svg
7 mm
svg
svg
svg
svg
EUROLITE

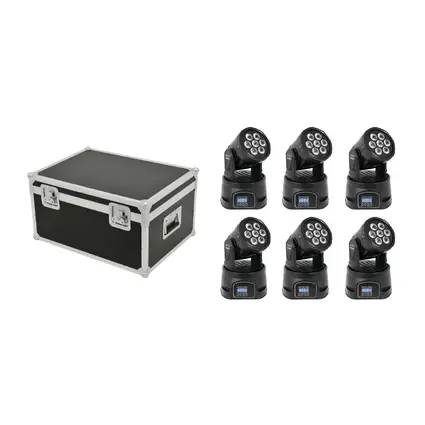

EUROLITE Set 6x LED TMH-9 + Case

Stock for approx. 12 wk(s)
1.199,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000200

Features

51785964 EUROLITE LED TMH-9 Moving Head Wash

Compact washlight with 8 W quadcolor LEDs and RGBW color mixing

  • Equipped with 7 x 8 W quadcolor LEDs with RGBW colors
  • Compact lightweight
  • 12 or 4 DMX channels selectable for numerous applications
  • Stepless RGBW color mixture
  • Color macros can be called up via DMX controller
  • Dimmer
  • Strobe effect with adjustable speed
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN-angle switchable between 540°, 360° and 180° (in sound and auto mode)
  • TILT-angle switchable between 180° and 90° (in sound and auto mode)
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone
  • Fan-cooled
  • Control board with 4-digit LED display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
  • DMX control via every standard DMX controller
  • LED: 7 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
  • Control: Sound to light viaMicrophone; DMX; Stand-alone

31001066 ROADINGER Flightcase 6x TMH-6/7/8/9

PRO flightcase for 6 TMHs (6-9)

  • Compartments for six TMH Moving-Heads
  • Suitable for 51785962 EUROLITE LED TMH-6 Moving-Head Spot, 51785973 EUROLITE LED TMH-7 Moving-Head Wash, 51785963 EUROLITE LED TMH-8 Moving-Head Spot, 51785964 EUROLITE LED TMH-9 Moving-Head Wash, 51785959 EUROLITE LED TMH-PK Moving-Head Wash
  • Detachable compartments - case can also be used as universal transport case
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 2 butterfly lock
  • 2 case handles
  • Made in Europe
Technical specifications
51785964 EUROLITE LED TMH-9 Moving Head Wash
Power supply:230 V AC, 50 Hz
Power consumption:50 W
LED:7 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:Exact positioning (16 bit resolution) 180° Positioning switchable to 90°
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 360° and 180°
DMX channels:4; 12
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Cooling fan:Yes
Control:Sound to light via Microphone
DMX
Stand-alone
Beam angle:18°
Case color:Black
Width:17,5 cm
Height:24,5 cm
Depth:17,5 cm
Weight:3,30 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31001066 ROADINGER Flightcase 6x TMH-6/7/8/9
Maximum load:50 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:61,5 cm
Height:33,5 cm
Depth:43 cm
Weight:10,40 kg
Inside dimensions (W x D x H):575 x 410 x 240 mm
Compartment dimensions (W x D x H):180 x 195 x 240 mm
Packaging units
PU EAN Weight Dimensions
1 4026397591316
