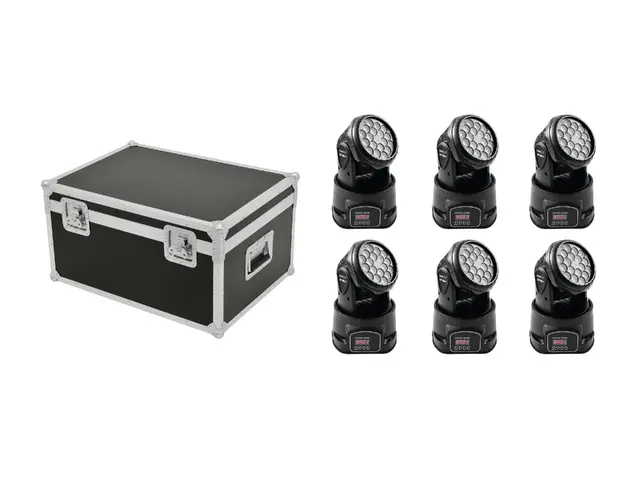

6x compact washlight with 3 W tricolor LEDs and RGB color mixing including PRO flightcase
EUROLITE Set 6x LED TMH-7 + Case

Name: EUROLITE Set 6x LED TMH-7 + Case
Brand: EUROLITE
SKU: 20000198
Price: 1099.00 EUR
Availability: LimitedAvailability

7 mm

25°

only a few items available

1.099,00 €

Find a dealer

Due to the dimensions of this article, different shipping conditions apply.

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000198

Features

6x compact washlight with 3 W tricolor LEDs and RGB color mixing including PRO flightcase

51785973 EUROLITE LED TMH-7 Moving Head Wash

Compact washlight with 3 W tricolor LEDs and RGB color mixing

Equipped with 18 x 3 W tricolor LEDs with RGB colors
Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
Compact lightweight
Positioning within 540° PAN and 180° TILT
Stepless RGB color mixture
6 color macros can be called up via DMX controller
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Exact positioning via 16 bit PAN/TILT movement resolution
DMX-controlled operation or stand-alone operation with Master/Slave function
Control board with 4-digit LED display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
DMX control via every standard DMX controller
LED: 18 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Can be operated in 11 CH mode
The device is cooled by cooling fan
Controlling by DMX; Stand-alone; Sound to light via Microphone
Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed

31001066 ROADINGER Flightcase 6x TMH-6/7/8/9

PRO flightcase for 6 TMHs (6-9)

Compartments for six TMH Moving-Heads
Suitable for 51785962 EUROLITE LED TMH-6 Moving-Head Spot, 51785973 EUROLITE LED TMH-7 Moving-Head Wash, 51785963 EUROLITE LED TMH-8 Moving-Head Spot, 51785964 EUROLITE LED TMH-9 Moving-Head Wash, 51785959 EUROLITE LED TMH-PK Moving-Head Wash
Detachable compartments - case can also be used as universal transport case
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Interior upholstered with foam
Three-leg, medium-sized steel ball corners
2 hinges
2 butterfly lock
2 case handles
Made in Europe

Technical specifications

Weight:	29.00 kg
51785973 EUROLITE LED TMH-7 Moving Head Wash
Power supply:	230 V AC, 50 Hz
Power consumption:	75 W
IP classification:	IP20
Lamp type:	LED lamp
LED:	18 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 180°
Max. PAN movement:	Exact positioning (16 bit resolution) 540°
Flash rate:	0 - 18 Hz
DMX channels:	11
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Control:	DMX; Stand-alone; Sound to light via Microphone; Light J Software; EUROLITE LED PC-Control 512 software
Beam angle:	25°
Beam angle (1/2 peak):	25°
Housing color:	Black
Display type:	4 digits 7-segment LED display
Dimension:	Width: 17.5 cm Depth: 17.5 cm Height: 24.5 cm
Weight:	3.10 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
31001066 ROADINGER Flightcase 6x TMH-6/7/8/9
Maximum load:	50 kg
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Additional dimensions:	Compartment dimensions: 18 cm x 19.5 cm x 24 cm Inside dimensions: 57.5 cm x 41 cm x 24.5 cm
Dimension:	Width: 61.5 cm Depth: 43 cm Height: 33.5 cm
Weight:	10.40 kg
