EUROLITE Set LED KLS-2500 + Case

7 mm

17.4°

The article is no longer in our assortment.

Features

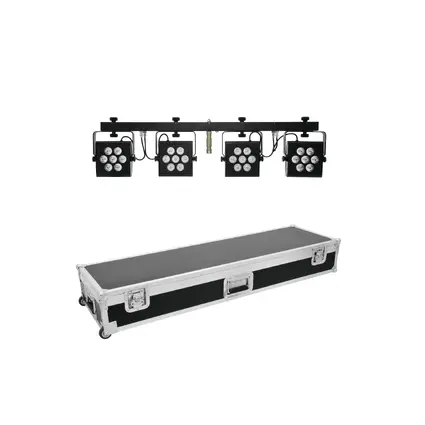

42109892 EUROLITE LED KLS-2500 Compact-Light-Set

Bar with 4 spots with 7 x 10 W 5in1 LED each, with 5-pin QuickDMX connector

Complete LED light set with four slimline LED spots
Crossbar with integrated DMX control unit
Installation via TV pin for tripods with 28 mm interior diameter
Ultra-light ideally suited for mobile use
7 PCL LEDs (RGBAW) per spot
Comes pre-assembled with practical transport bag
Movable and tiltable spotlights
Sound-control via built-in microphone with sensitivity control
DMX-controlled operation or stand-alone operation with processor-controlled color change
Supports QuickDMX - the wireless DMX-system from Eurolite
Built-in phantom fed socket for QuickDMX receiver (see accessories)
Master/Slave operation
Sound-control via built-in microphone with sensitivity control
Convenient control possible via optional foot pedal FP-1
DMX512 control via regular DMX controller (occupies 28 channels)
Via DMX, each spot can be individually controlled
DMX functions: dimmer, automatic mode, music control, strobe effect
Addressing and setting via control panel with OLED display
Suited for installation on a lighting stand (not included) or truss
Black lacquered metal version
Ideal for bands, stages or solo entertainers
Ready for connection with power cord and PowerCon input
4 IEC outputs for power supply of further devices
LED: 7 x high-power 10 W 5in1 PCL RGBWA (homogenous color mix)
Can be operated in 2; 3; 4; 7; 20; 23; 28 CH mode
The device is cooled by passive cooling by convection
Controling by QuickDMX built-in; Foot switch (optional); Stand-alone; DMX

31001070 ROADINGER Flightcase KLS Compact Light Sets

PRO flightcase for one KLS compact light set, with telescopic handle

Professional transport solution with extendable trolley for EUROLITE KLS compact light sets
Suitable for KLS-200, KLS-300, KLS-400, KLS-401, KLS-800, KLS-801, KLS-1001 and KLS-2001
Compartments for 1 KLS Compact Light Set, 1 foot controller and further accessories
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Interior upholstered with foam
Three-leg, medium-sized steel ball corners
3 hinges
2 high-quality butterfly locks
3 case handles
2 castors
Transport aid: Trolley
Made in Europe

Technical specifications

Weight:	27.70 kg
42109892 EUROLITE LED KLS-2500 Compact-Light-Set
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	190.00 W
IP classification:	IP20
Power connection:	Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
LED:	7 x high-power 10 W 5in1 PCL RGBWA (homogenous color mix)
DMX channels:	2; 3; 4; 7; 20; 23; 28
Cooling:	Passive cooling by convection
Control:	QuickDMX built-in Foot switch (optional) Stand-alone DMX
Beam angle:	17.4°
Beam angle (1/2 peak):	17.4°
Beam angle (1/10 peak):	30.4°
Housing color:	Black
Width:	120 cm
Height:	32 cm
Depth:	6 cm
Weight:	15.70 kg
DMX channels:	2/3/4/7/20/23/28
DMX connection:	3-pin XLR
QuickDMX connection:	5-pin XLR
Sound-control:	via built-in microphone
LED type:	10 W RGBAW (5in1)
Number of LEDs:	28
Beam angle:	28°
TV spigot:	D = 28 mm
Dimensions (L x W x H):	1160 x 60 x 320 mm
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
31001070 ROADINGER Flightcase KLS Compact Light Sets
Maximum load:	50 kg
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Additional dimensions:	Device compartment 18.5 cm
Width:	126.5 cm
Height:	22 cm
Depth:	37.5 cm
Weight:	12.00 kg
