EUROLITE Set 4x LED PMC-25x10W COB RGB + Case

svg
25°
svg
svg
7 mm
svg
svg
EUROLITE

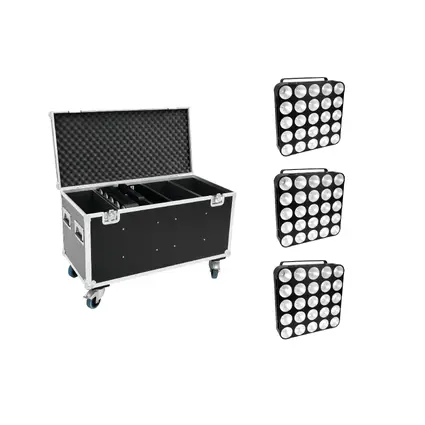

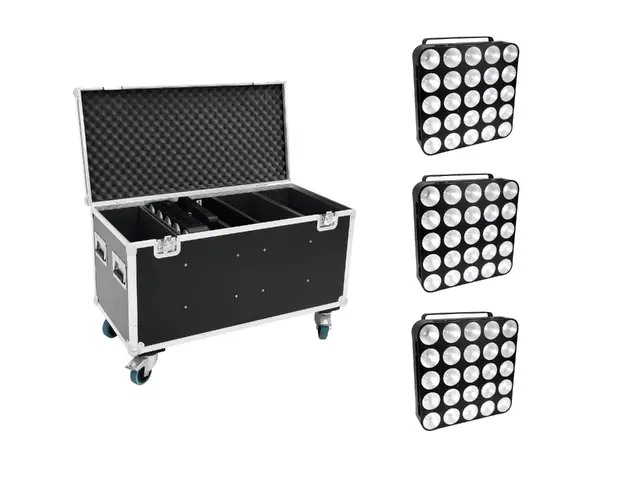

EUROLITE Set 4x LED PMC-25x10W COB RGB + Case

Item no. 20000188

Features

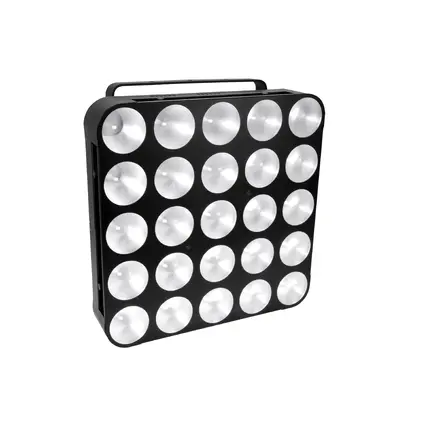

41606390 EUROLITE LED PMC-25x10W COB RGB 25°

Professional COB Perfomance Cluster with 5 x 5 matrix

  • Operable in stand-alone mode via control panel with LCD screen or in DMX mode via any commercial DMX controller (occupies max. 79 channels)
  • 3, 4, 5, 75, 78 or 79 DMX channels selectable for various applications
  • Supports RDM (Remote Device Management)
  • Equipped with 25 x 10 W COB LEDs in the colors red, green and blue
  • Each LED can be controlled individually
  • Functions: Static colors, RGB color mixture, automatic color change, internal programs, dimmer and strobe settings via DMX, Master/Slave
  • Dimmer speed (step response) controllable
  • Adjustable white balance
  • Various patterns via DMX allow for one-of-a-kind plays of light
  • Sound-control via built-in microphone; sensitivity adjustable via control panel
  • Comfortable addressing and setting via control panel with LC display and four operating buttons
  • Locking possibility at the mounting bracket
  • Feed-through output allows to power up to 8 devices
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power connection via Neutrik PowerCon jack and included power cable with safety plug
  • Control: Stand-alone; DMX

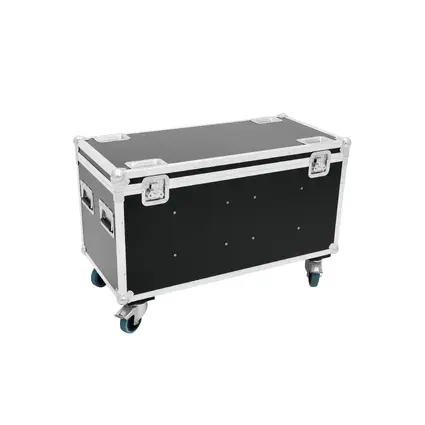

31001215 ROADINGER Flightcase 4x PMC-25

PRO flightcase

  • Compartments for 4 PMC-25
  • Suitable for EUROLITE LED PMC-25x10W COB RGB 25°
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 1 butterfly lock
  • 4 case handle
  • Transport aid: With wheels
Technical specifications
41606390 EUROLITE LED PMC-25x10W COB RGB 25°
Power supply:100-240 V AC, 50/60 Hz
Power consumption:290,00 W
IP classification:IP20
Beam angle:25°
Control:Stand-alone
DMX
Case color:Black
Width:43,1 cm
Height:44,8 cm
Depth:17,9 cm
Weight:11,45 kg
DMX channels:3/4/5/75/78/79
DMX connection:5-pin and 3-pin XLR
Flash-rate:18 Hz
Sound-control:via built-in microphone
LED number:25
LED type:Array Cluster 10 W, RGB
Beam angle:25°
Dimensions (W x D x H):431 x 178,8 x 448 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31001215 ROADINGER Flightcase 4x PMC-25
Maximum load:100 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:100 cm
Height:65,5 cm
Depth:50 cm
Outside dimensions (L x W x H):1000 x 500 x 655 mm
Inside dimensions (L x W x H):955 x 450 x 425 mm
Compartment dimensions (L x W x H):195 x 450 x 425 mm
Gewicht:26.6 kg
Packaging units
PU EAN Weight Dimensions
1 4026397590753
