EUROLITE Set 4x LED PMC-16x30W COB RGB WFL + Case

svg
60°
svg
svg
7 mm
svg
svg
EUROLITE

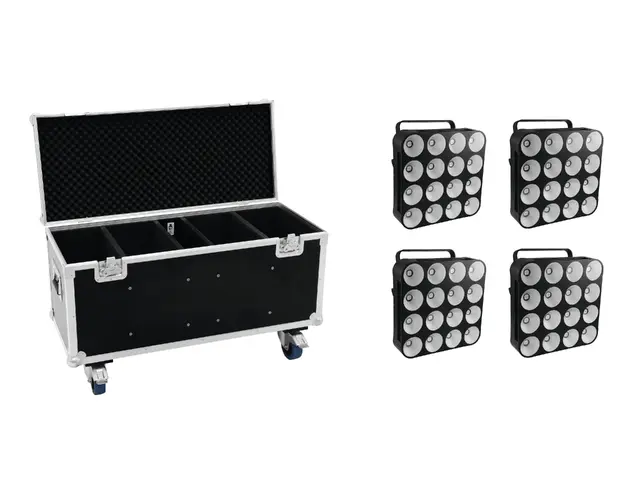

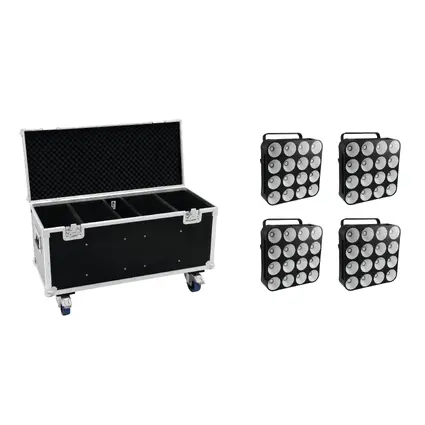

EUROLITE Set 4x LED PMC-16x30W COB RGB WFL + Case

Item no. 20000187

Features

41606400 EUROLITE LED PMC-16x30W COB RGB WFL

Professional COB Performance Cluster (4 x 4 matrix) with 60° beam angle

  • Equipped with 16 x 30 W COB LEDs in the colors red, green and blue
  • 3, 5, 48 or 51 DMX channels selectable for various applications
  • Each LED can be controlled individually
  • Sound-control via built-in microphone; sensitivity adjustable
  • Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
  • Functions: static colors; RGB color mixture, automatic color change, built-in programs and strobe effect with variable speed, dimmer, Master/Slave
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Comfortable addressing and setting via control panel with LC display and four operating buttons
  • Locking possibility at the mounting bracket
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power another device
  • After every 8 device the fixtures must have a renewed connection with the power mains
  • DMX control via every standard DMX controller
  • Control: Stand-alone; DMX; Sound to light via Microphone

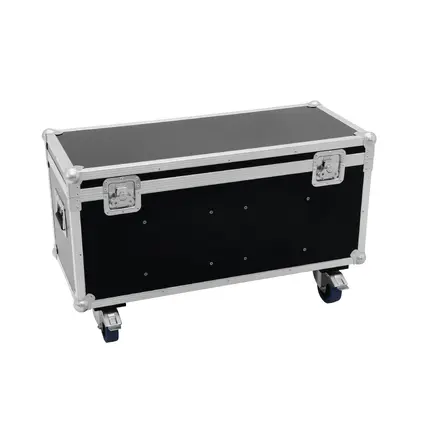

31001205 ROADINGER Flightcase 4x PMC-16

PRO flightcase for 4 PMC-16

  • Compartments for four PMC-16
  • Suitable for 41606200 EUROLITE LED PMC-16x20W COB 3200K and 41606400 EUROLITE LED PMC-16x30W COB RGB
  • Interior upholstered with foam
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (25 mm) with rounded edges
  • Three-leg, large steel ball corners
  • 2 x hinge
  • 2 high-quality butterfly locks
  • 2 case handles
  • Transport aid: With wheels
Technical specifications
41606400 EUROLITE LED PMC-16x30W COB RGB WFL
Power supply:100-240 V AC, 50/60 Hz
Power consumption:470 W
IP classification:IP20
Power output:1 x Powercon (gray), mounting version
Beam angle:60°
Flash rate:1 - 20 Hz
DMX channels:3
Control:Stand-alone
DMX
Sound to light via Microphone
Housing color:Black
Width:18 cm
Height:35 cm
Depth:37 cm
Weight:8,5 kg
DMX channels:3/5/48/51
DMX connection:5-pin and 3-pin XLR
Flash-rate:20 Hz
Sound-control:via built-in microphone
LED number:16
LED type:Cluster 30 W, RGB
Beam angle:60°
Dimensions (W x D x H):350 x 180 x 370 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31001205 ROADINGER Flightcase 4x PMC-16
Maximum load:50 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:100 cm
Height:56 cm
Depth:39,5 cm
Weight:20,10 kg
Strength:7 mm
Outside dimensions (W x D x H):1000 x 395 x 560 mm
Inside dimensions (W x D x H):960 x 355 x 390 mm
Compartment dimensions (W x D x H):195 x 355 x 390 mm
Accessory compartment (W x D x H):95 x 355 x 315 mm
