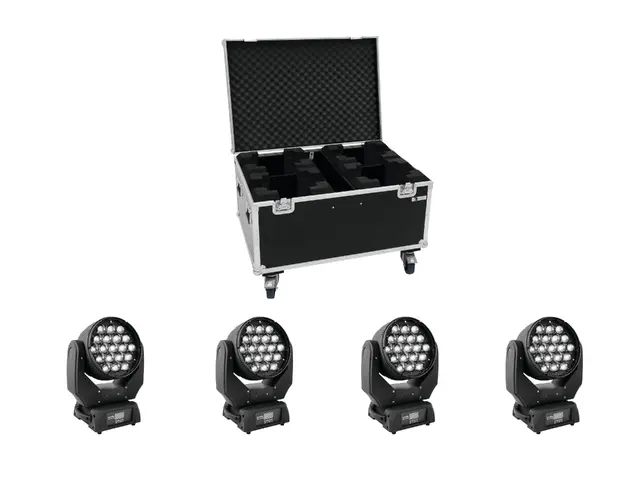

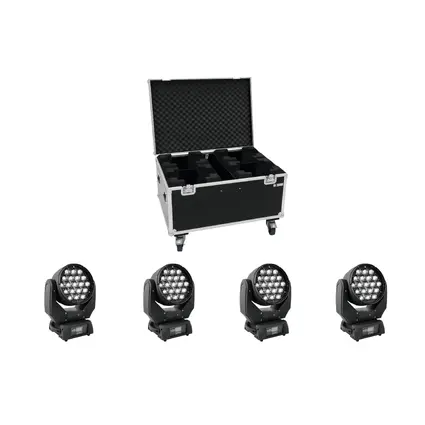

EUROLITE Set 4x LED TMH-X5 + Case

svg
svg
svg
svg
1 - 28°
svg
7 mm
svg
svg
svg
svg
svg
svg
EUROLITE



EUROLITE Set 4x LED TMH-X5 + Case

this item is not in stock.
3.699,00
add to cart
Find a dealer
Due to the dimensions of this article, different shipping conditions apply.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000174

Features

51785990 EUROLITE LED TMH-X5 Moving Head Wash Zoom

Washlight with 12 W COB LEDs, RGBW color mixing and large zoom range

  • Equipped with 19 x 12 W COB LED with RGBW colors, distributed in 3 segments
  • Each segment can be controlled individually via DMX
  • 20 or 28 DMX channels selectable
  • Positioning within 540° PAN and 270° TILT
  • Stepless RGBW color mixture
  • Dimmer
  • Dimmer speed (step response) adjustable
  • Motorized zoom with 1-28° beam angle
  • Sound-controlled via built-in microphone
  • Color presets
  • Different patterns and movements can be selected via DMX
  • Strobe effect with adjustable speed
  • Automatic position correction
  • Fan-cooled
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with LCD display for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
  • P-Con terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • Control: DMX; Sound to light via Microphone; Stand-alone
  • Projection: flicker-free

31005108 ROADINGER Flightcase 4x TMH-X5 with wheels

PRO flightcase for 4 TMH-X5 with castors

  • Fitted for 4 devices and accessory
  • Additional accessory compartment
  • Interior upholstered with foam
  • High-quality workmanship with birch multiplex, dark brown laminated
  • Aluminum profile frames (25 mm) with rounded edges
  • Three-leg, big steel ball corners
  • Lid with 2 tip-over locks
  • 4 castors (100 mm), 2 of which with locking brakes
  • 2 chrome butterfly locks
  • 4 chrome case handles
  • 4 stacking dishes for stacking the cases
  • Transport aid: With wheels
  • Made in Europe
Technical specifications
51785990 EUROLITE LED TMH-X5 Moving Head Wash Zoom
Power supply:100-240 V AC, 50/60 Hz
Power consumption:220 W
IP classification:IP20
Power connection:Mains input Powercon (blue), mounting version via Power supply cord with safety plug (provided)
Power output:1 x Powercon (gray)
LED:19 x high-power 12 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Equipment:Zoom motor-driven
DMX channels:20; 28
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling fan:Yes
Control:DMX
Sound to light via Microphone
Stand-alone
Case color:Black
Width:32 cm
Height:44 cm
Depth:22 cm
Weight:11,10 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31005108 ROADINGER Flightcase 4x TMH-X5 with wheels
Maximum load:100 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:93 cm
Height:61 cm
Depth:65 cm
Weight:27,70 kg
Packaging units
PU EAN Weight Dimensions
1 4026397590128
