EUROLITE Set LED KLS Laser Bar PRO FX + M-3 Speaker-system stand

svg
13°
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

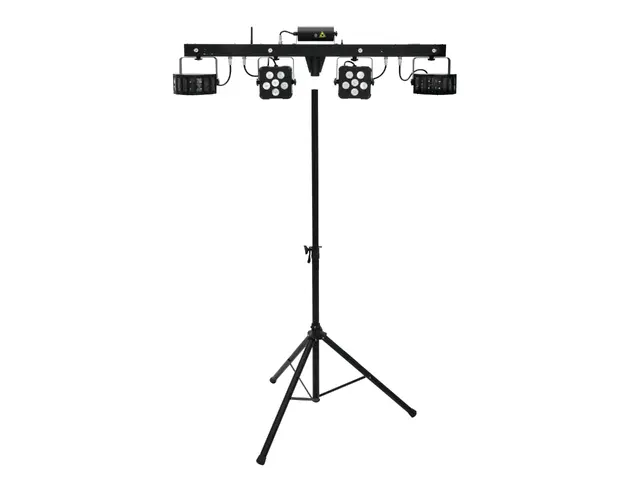

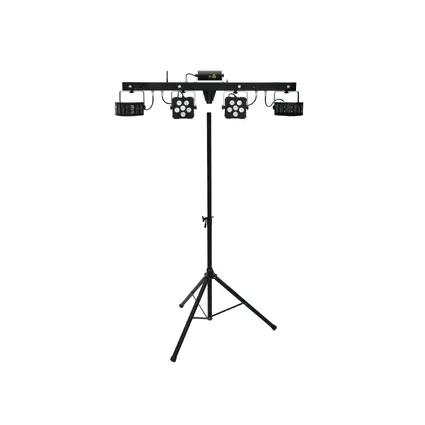

EUROLITE Set LED KLS Laser Bar PRO FX + M-3 Speaker-system stand

Item no. 20000173

Features

51741091 EUROLITE LED KLS Laser Bar PRO FX Light Set

Bar with 2 strong derbies and spots, white/UV strobe LEDs, laser (RG, 2M)

  • 4-in-1 DMX light effect bar with laser, 2 rotating LED derbies, 2 LED spots and strobe LEDs in white and UV
  • Enhanced version with very high brightness and additional UV LEDs
  • Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
  • Ultra-light ideally suited for mobile use
  • Crossbar with integrated DMX control unit and stand sleeve
  • Comes pre-assembled with practical transport bag
  • Convenient control via wireless foot switch and IR remote control
  • 2 laser diodes project hundreds of red and green laser beams
  • 2 rotating derbies for mirror ball effects with 6 bright LEDs (red, green and blue) each
  • 2 spots with 6 bright 3in1 LEDs (red, green and blue) each
  • Strobe effect with 4 bright 2in1 LEDs (white and UV)
  • Auto, music, master/slave and DMX mode
  • 39 built-in auto and music show programs that include all 4 effect units
  • Addressing and setting via control panel with 4-digit LED display
  • Sound-control via built-in microphone with sensitivity control
  • Swivel mounting brackets for truss mounting
  • When fog is used, this effect becomes especially attractive
  • IEC terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • Control: Sound to light via Microphone; Wireless footswitch; IR remote control; Stand-alone; DMX
  • Effect: Multi beam effect; Strobe effect

Foot control

  • Battery: 1 x 9.0 V E block 6LR61 alkaline manganese included

Remote control

  • Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

60004183 OMNITRONIC M-3 Speaker-System Stand

Speaker stand, extendible up to 170 cm, max. load 30 kg

  • Stable speaker stand
  • Black lacquered steel version
  • Telescopic tube with locking pin
Technical specifications
51741091 EUROLITE LED KLS Laser Bar PRO FX Light Set
Power supply:100-240 V AC, 50/60 Hz
Power consumption:150 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version via Power supply cord with safety plug (provided)
Power output:1 x IEC connector (F) mounting version
Fuse:5 x 20 mmT time-lag, 3,15 A
LED:Spot 4 x high-power 2 W 2in1 BCL CW/UV (homogenous color mix)
Multi beam effect 6 x high-power 2 W RGB
Strobe effect 6 x high-power 6 W 3in1 TCL RGB (homogenous color mix)
Beam angle:13°
Flash rate:0 - 30 Hz
DMX channels:3; 5; 10; 28
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cable construction:3 x 1,0 mm² H05VV-F
Cooling fan:Yes
Control:Sound to light via Microphone
Wireless footswitch
IR remote control
Stand-alone
DMX
Case color:Black
Width:132 cm
Height:32 cm
Depth:14,5 cm
Weight:10,75 kg
laser
Laser class:Class 2M
Laser module:R red 100 mW 650nm
G green 30 mW 532nm
Foot control
Battery:1 x 9.0 V E block 6LR61 alkaline manganese included
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
60004183 OMNITRONIC M-3 Speaker-System Stand
Maximum carrying capacity:30 kg
Height:maximum: 1,70 m
minimum: 1 m
Color:Black
Attachment:Flange system 35mm
Material:Steel
Weight:2,90 kg
Packaging units
PU EAN Weight Dimensions
1 4026397556742
