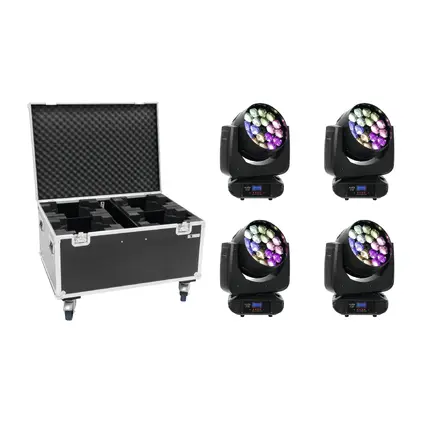

EUROLITE Set 4x LED TMH FE-1800 + Case

svg
7 mm
svg
svg
svg
svg
6,5°
svg
svg
svg
svg
svg
svg
svg
EUROLITE



EUROLITE Set 4x LED TMH FE-1800 + Case

No. 20000154
Set consisting of:
mpn51785957
4 x EUROLITE LED TMH FE-1800 Beam/Flower Effect
mpn31005102
1 x ROADINGER Flightcase 4x TMH FE-1800 with wheels
Features

EUROLITE LED TMH FE-1800 Beam/Flower Effect

RGBW moving head flower with large zoom range and 18 x 12 W LED

  • Equipped with 18 x 12 W COB LED with RGBW colors, distributed in 6 segments
  • Each segment can be controlled individually via DMX
  • 20 or 40 DMX channels selectable
  • Functions: colored beams in R, G, B and W, preset colors, built-in program, strobe effect with variable speed, dimmer, sound-control, Master/Slave operation
  • Adjustable zoom movement - from narrow single beam to room-filling beams - via rotating lens
  • Different patterns and movements can be selected via DMX
  • Stepless RGBW color mixture
  • Positioning within 540° PAN and 190° TILT
  • PAN-angle switchable between 540° and 360°
  • Dimmer speed (step response) adjustable
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone
  • Control board with LC display for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • Neutrik powerCON terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • 18 powerful LEDs 12 W COB (chip-on-board) 4in1 QCL RGBW
  • PAN angle switchable between 540° and 360°
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Multi beam effect; beam effect
  • The device is cooled by cooling fan
  • Control via DMX; sound to light via microphone
  • Preprogrammed in Light´J; LED PC-Control 512; Light Captain
  • Flicker-free
  • With a beam angle of 6,5°

Package contents

  • 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x XLR cable

ROADINGER Flightcase 4x TMH FE-1800 with wheels

Trunk case with castors

  • Fitted for 4 devices and accessory
  • Additional accessory compartment
  • Interior upholstered with foam
  • High-quality workmanship with birch multiplex, dark brown laminated
  • Aluminum profile frames (25 mm) with rounded edges
  • Three-leg, big steel ball corners
  • Lid with 2 tip-over locks
  • 4 castors (100 mm), 2 of which with locking brakes
  • 2 chrome butterfly locks
  • 4 chrome case handles
  • 4 stacking dishes for stacking the cases
  • Castors
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
EUROLITE LED TMH FE-1800 Beam/Flower Effect
Power supply:100-240 V AC, 50/60 Hz
Power consumption:310 W
IP classification:IP20
Power connection:Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x PowerCON (gray)
Lamp type:LED lamp
LED type:18 x 12 W COB (chip-on-board) 4in1 QCL RGBW
Max. TILT movement:190° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:540°, 360° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:0 - 18 Hz
DMX channels:20; 40
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX; sound to light via microphone
Preprogrammed in:Light´J; LED PC-Control 512; Light Captain
Projection:Flicker-free
Beam angle:6,5°
Beam angle (1/2 peak):6,5°
Housing color:Black
Dimensions:Width: 33 cm
Depth: 24 cm
Height: 43 cm
Weight:10,45 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 4x TMH FE-1800 with wheels
Maximum load:100 kg
Transport aid:Castors
Use of brands:Branded hardware
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Dimensions:Width: 92 cm
Depth: 66 cm
Height: 61 cm
Weight:26,05 kg
