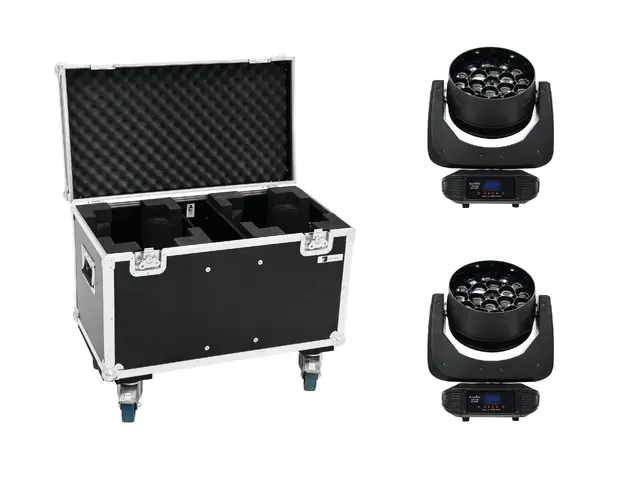

EUROLITE Set 2x LED TMH FE-1800 + Case

EUROLITE



EUROLITE Set 2x LED TMH FE-1800 + Case

this item is not in stock.
1.899,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000153

svg
6.5°
svg
svg
7 mm
svg
svg
svg
svg
svg
svg
Features

51785957 EUROLITE LED TMH FE-1800 Beam/Flower Effect

RGBW Moving Flower with large zoom range and 18 x 12 W LEDs

  • Equipped with 18 x 12 W COB LED with RGBW colors, distributed in 6 segments
  • Each segment can be controlled individually via DMX
  • 20 or 40 DMX channels selectable
  • Functions: colored beams in R, G, B and W, preset colors, built-in program, strobe effect with variable speed, dimmer, sound-control, Master/Slave operation
  • Adjustable zoom movement - from narrow single beam to room-filling beams - via rotating lens
  • Different patterns and movements can be selected via DMX
  • Stepless RGBW color mixture
  • Positioning within 540° PAN and 190° TILT
  • PAN-angle switchable between 540° and 360°
  • Dimmer speed (step response) adjustable
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone
  • Control board with LC display for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • Switch-mode power supply for operation between 100 and 240 volts
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • DMX512 control possible via any commercial DMX controller
  • LED: 18 x COB (chip-on-board) 12 W 4in1 QCL RGBW
  • Power output: 1 x Powercon (gray)
  • Control: Stand-alone; Sound to light viaMicrophone; DMX
  • Projection: flicker-free
  • Effect: Multi beam effect; Single Beam

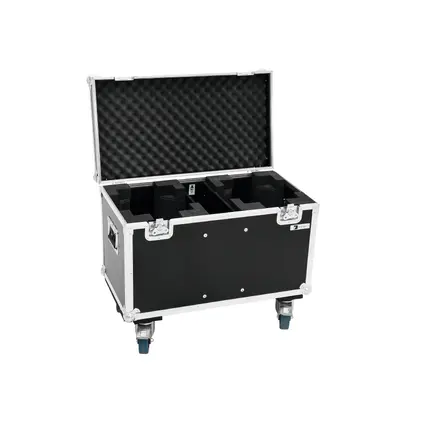

31005088 ROADINGER Flightcase 2x TMH FE-1800

PRO flightcase for 2 TMH FE-1800

  • Interior seperated in three compartments, two for TMH FE-1800 and one for accessories
  • High-quality workmanship with wood, dark brown laminated
  • Aluminum profile frames (25 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 x hinges
  • 2 high-quality butterfly locks
  • 2 case handles
  • 4 x BlueWheels, 75 mm diameter, 2 with brakes
  • Transport aid: With wheels
  • Made in Europe
Technical specifications
51785957 EUROLITE LED TMH FE-1800 Beam/Flower Effect
Power supply:110-240 V AC, 50/60 Hz
Power consumption:310 W
LED:18 x COB (chip-on-board) 12 W 4in1 QCL RGBW
Max. TILT movement:Exact positioning (16 bit resolution) 190° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 360° Auto position correction (feedback)
Flash rate:0 - 18 Hz
DMX channels:20; 40
IP classification:IP20
Power connection:Mains input Powercon (blue), mounting version Power supply cord with safety plug (provided)
Power output:1 x Powercon (gray)
Cooling fan:Yes
Control:Stand-alone
Sound to light via Microphone
DMX
Beam angle:6,5°
Case color:Black
Width:33 cm
Height:43 cm
Depth:24 cm
Weight:10,45 kg
DMX connection:5-pin and 3-pin XLR
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31005088 ROADINGER Flightcase 2x TMH FE-1800
Maximum load:50 kg
Color:Dark brown laminated
Material:Glued plywood 7 mm
Strength:7 mm
Width:76 cm
Height:62 cm
Depth:42 cm
Weight:18,60 kg
Inside dimensions (W x D x H):720 x 380 x 370 mm
Compartment dimensions (W x D x H):380 x 300 x 350 mm
Accessory compartment (W x D x H):115 x 380 x 350 mm
Packaging units
PU EAN Weight Dimensions
1 4026397586138
