Technical specifications

Weight:	19.20 kg
EUROLITE TMH XB-230 Moving-Head Beam
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	300 W
Lamp type:	Discharge lamp
Equipment:	Gobos
Cooling:	Cooling fan
Control:	DMX; stand-alone
Fixtures available for:	LED PC-Control 512
Beam angle (1/2 peak):	3°
Housing color:	Black
Dimensions:	Width: 39.5 cm Depth: 32 cm Height: 51 cm
Weight:	19.14 kg
DMX channels:	16
DMX connection:	5-pin and 3-pin XLR
Flash-rate:	18 Hz
Color-wheel:	14 dichroic filters plus open
Static gobo-wheel:	17 gobos and open
Maximum PAN-movement:	540°
Maximum TILT-movement:	250°
Beam angle:	3°
Dimensions (L x W x H):	395 x 320 x 510 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
OMNILUX OSD 7 Reflector 230W Discharge Lamp
Operating voltage:	75
Nominal wattage:	230 W
Base:	Special
Lamp type:	Discharge lamp
Lamp specification:	Dimmable
Color temperature:	8000K
Burning position:	S180 (universal)
Lamp life:	2000 h
Luminous flux:	10500 lm
Lamp current:	3.3 A
Dimensions (LxD):	61.5x51 mm
Weight:	0.06 kg
EPREL-Nr:	2033771

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000151-Images-.zip

Video link

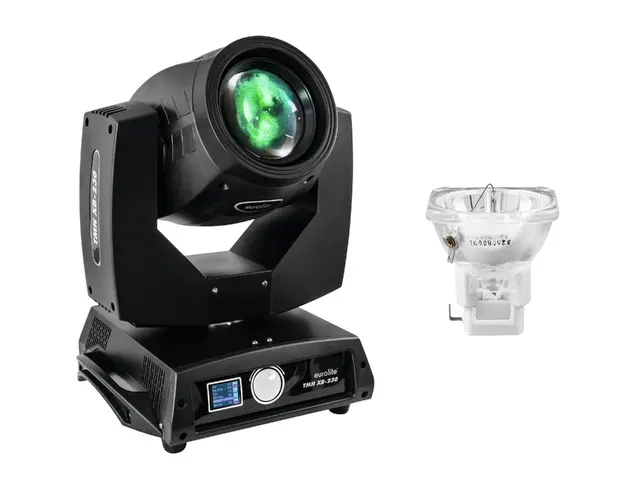

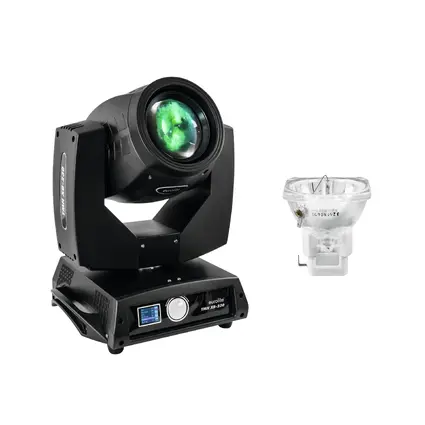

EUROLITE Set TMH XB-230 Moving-Head-Beam + OSD 7

The article is no longer in our assortment.

No. 20000151

3°

Set consisting of:

1 x EUROLITE TMH XB-230 Moving-Head Beam

1 x OMNILUX OSD 7 Reflector 230W Discharge Lamp

EUROLITE TMH XB-230 Moving-Head Beam

High performance beam for 230 W discharge lamp

Very narrow beam angle with 3°
With electronic ballast
Color wheel with 14 different dichroic color filters plus white
Switchable color change (mode 1: only full colors, mode 2: half colors)
Rainbow effect with adjustable speed
8-facet prism
Frost-filter
Gobo wheel with 17 static gobos plus open
With gobo shake function
Motorized focus
Strobe effect with adjustable speed
Random strobe effect
Dimmer
Exact positioning via 16 bit PAN/TILT movement resolution
Automatic position correction
Switch-mode power supply for operation between 100 and 240 volts
Control board with graphic LC display and encoder for adjusting the DMX-starting address, PAN/TILT reverse, reset, lamp on/off, operating hours
DMX-controlled operation or stand-alone operation with master/slave function
For OSD 7 Reflector 230 W discharge lamp
Power connection via Neutrik PowerCon socket and included power cable
DMX-control via every standard DMX-controller
Gobos
Beam effect
The device is cooled by cooling fan
Control via DMX; stand-alone
With a beam angle of 3°

OMNILUX OSD 7 Reflector 230W Discharge Lamp

Very short arc
Compact design
Reflector lamp
Long life
High beam intensity
Freedom to create smaller and lighter fixtures
Perfect alignment and placing with lamp replacements in seconds
Renewed optical system with maximum light output
High perceived brightness
Dimmable
For further information about this product, please refer to the Data Sheet under "Downloads"
