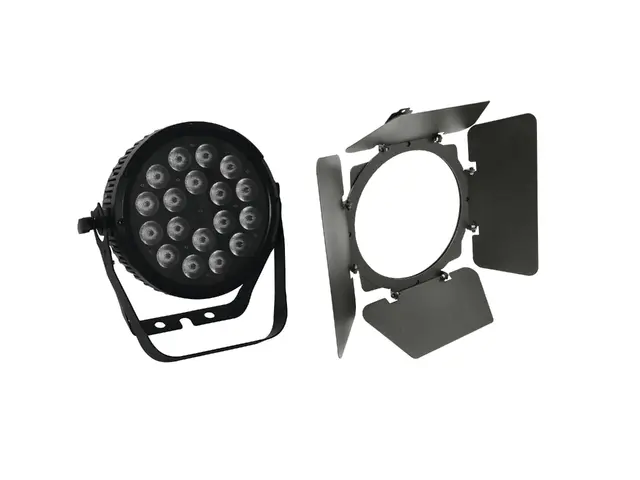

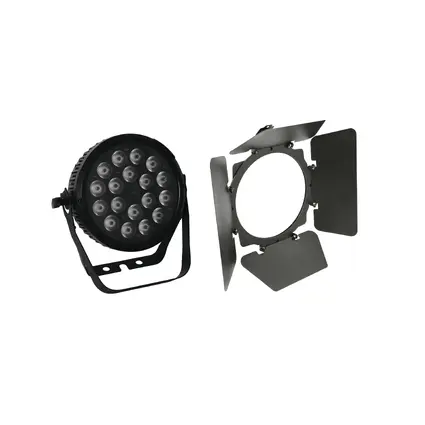

EUROLITE Set PRO Slim PAR-18 QCL RGBA + Barndoors

EUROLITE



EUROLITE Set PRO Slim PAR-18 QCL RGBA + Barndoors

Item no. 20000145

Features

51842580 FUTURELIGHT PRO Slim PAR-18 QCL RGBA

Professional slimline LED spot with 5 W QCLs

  • Equipped with 18 x 4in1 quadcolor LEDs in the colors red, green, blue and amber
  • Flat housing form requires minimal space when rigging
  • Extremely compact housing in a beautiful design
  • Second mounting bracket for safe standing installation
  • Locking possibility at the brackets with large metal butterfly screws
  • Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation
  • Functions: static colors, RGBA color mixture, 11 preset color temperatures, automatic color change, built-in programs, dimmer, strobe effect, sound-control, Master/Slave operation
  • 4, 6 or 10 DMX channels selectable
  • Dimmer speed (step response) adjustable
  • Sound-control via built-in microphone
  • Microphone-sensitivity adjustable via rotary-control on the top panel
  • Comfortable addressing and setting via Control Board with four operating buttons and LED display with four-digit 14-segment display
  • Operable in stand-alone mode or via DMX
  • Master/Slave for parallel operation of several devices
  • DMX512 control via regular DMX-controller
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power another device
  • After every 8 devices the fixtures must have a renewed connection with the power mains
  • Color generation: RGBA
Technical specifications

51842580 FUTURELIGHT PRO Slim PAR-18 QCL RGBA

Power supply:230 V AC, 50 Hz
DMX channels:4/6/10
DMX connection: 3-pin XLR
Sound-control:via built-in microphone
LED type:5 W QCL
LED number:18
Beam angle:17°
Dimensions (W x D x H):298 x 107 x 323 mm
Weight:5 kg
Power consumption:130 QC sample report W
Fuse speed:Slow-blow
Lamp type:LED lamp
IP classification:IP20
Beam angle:17 °
Cooling fan:No, cooling by convection
Laser class:Without laser
Height:32,3 cm
Depths:10,7 cm
Width:29,8 cm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting

51840990 FUTURELIGHT Barndoors for Pro Slim Par-18

Color:Black
Slot for spot length:241 mm
Slot for spot width:241 mm
Packaging units
PU EAN Weight Dimensions
1 4026397585247 7,70 kg 61cm x 31cm x 42cm
