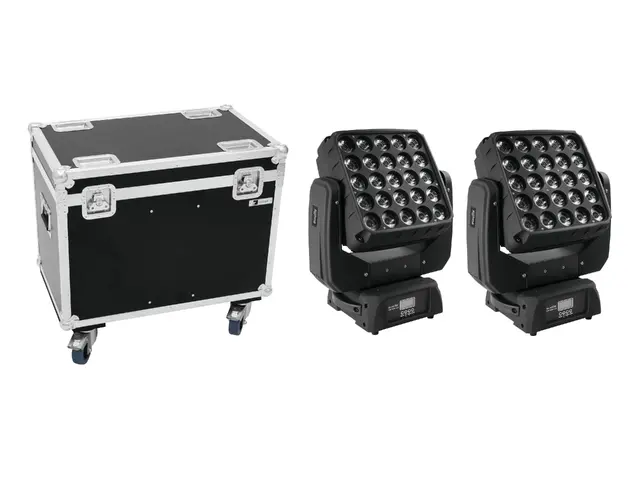

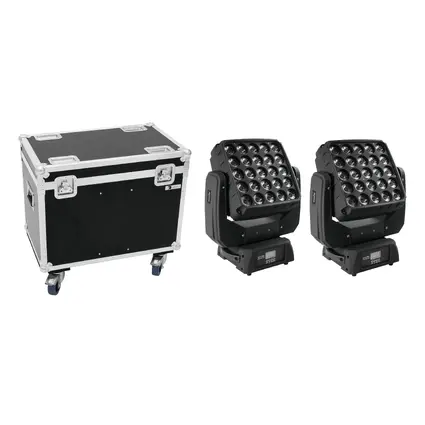

EUROLITE Set 2x LED TMH-X25 Moving-Head + Case

No. 20000129
Set consisting of:
mpn51785991
2 x EUROLITE LED TMH-X25 Moving Head
mpn31005082
1 x ROADINGER Flightcase 2x TMH-X25
Features

EUROLITE LED TMH-X25 Moving Head

5x5 Matrix Panel, bright 12 W RGBW LEDs, narrow beam angle

  • Equipped with 25 x 12 W COB LED in the colors red, green, blue and white
  • Each LED can be controlled individually
  • Suitable for pixel mapping applications
  • Narrow illumination angle
  • 16 or 116 DMX channels selectable
  • Functions: RGBW color mixture, automatic color change, built-in programs, figure and letter patterns, strobe effect with variable speed, random strobe effect, dimmer, sound-control, Master/Slave operation
  • Dimmer speed (step response) adjustable
  • Sound-control via built-in microphone; sensitivity adjustable
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN angle switchable between 540° and 360°
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with LC display for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • Neutrik powerCON terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • 25 powerful LEDs 12 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
  • PAN angle switchable between 540° and 360°
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Multi beam effect
  • The device is cooled by cooling fan
  • Control via DMX; stand-alone; sound to light via microphone
  • Preprogrammed in Light´J; LED PC-Control 512; Light Captain; GDTF (GrandMA3)
  • Flicker-free
  • With a beam angle of 3°

Package contents

  • 1 x omega bracket

ROADINGER Flightcase 2x TMH-X25

PRO flightcase for 2 x TMH-X25

  • With accessory compartment
  • With 2 device compartments
  • High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Interior with foam padding
  • Aluminum profile frames 25mm with rounded edges
  • 2 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • 4 x castors with 2 locking brakes
  • 4 x built-in stacking trays in the cover
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
EUROLITE LED TMH-X25 Moving Head
Power supply:100-240 V AC, 50/60 Hz
Power consumption:245 W
IP classification:IP20
Power connection:Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x PowerCON (gray)
Lamp type:LED lamp
LED type:25 x 12 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:540°, 360° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:0 - 18 Hz
DMX channels:16; 116
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX; stand-alone; sound to light via microphone
Preprogrammed in:Light´J; LED PC-Control 512; Light Captain; GDTF (GrandMA3)
Projection:Flicker-free
Beam angle:
Beam angle (1/2 peak):
Beam angle (1/10 peak):
Illuminance in Lux (lx):Red (R) 3m: 6597 lx, 6m: 1918 lx
Green (G) 3m: 10086 lx, 6m: 2933 lx
Blue (B) 3m: 2058 lx, 6m: 635 lx
Cold white (CW) 3m: 14638 lx, 6m: 4258 lx
All 3m: 31569 lx, 6m: 9253 lx
Housing color:Black
Dimensions:Width: 37 cm
Depth: 22 cm
Height: 47 cm
Weight:11,60 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 2x TMH-X25
Maximum load:50 kg
Aluminum profile frames:25 mm
Case handle:2 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Use of brands:Branded hardware
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Compartment dimensions:22 cm x 41 cm x 38,5 cm
Accessory compartment:11 cm x 41 cm x 38,5 cm
Inside dimensions:73 cm x 41 cm x 38,5 cm
Dimensions:Width: 73 cm
Depth: 45 cm
Height: 68 cm
Weight:20,60 kg
