EUROLITE Set 2x LED TMH FE-300 Beam/Flower effect + Case

Name: EUROLITE Set 2x LED TMH FE-300 Beam/Flower effect + Case
Brand: EUROLITE
SKU: 20000127
Price: 999999.00 EUR
Availability: Discontinued

mpn20000127-eurolite-set-2x-led-tmh-fe-300-beam-flower-effect-+-case-MainBild

mpn20000127-eurolite-set-2x-led-tmh-fe-300-beam-flower-effect-+-case-Bild-1

6,5°

7 mm

EUROLITE Set 2x LED TMH FE-300 Beam/Flower effect + Case

The article is no longer in our assortment.

Item no. 20000127

Print product

Product badge

Features

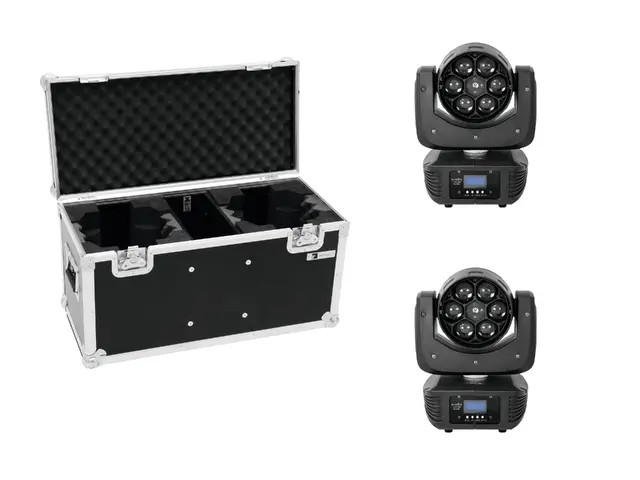

Set consisting of:
2x 51785956: EUROLITE LED TMH FE-600 Beam/Flower Effect
1x 31005085: ROADINGER Flightcase 2x TMH FE-600

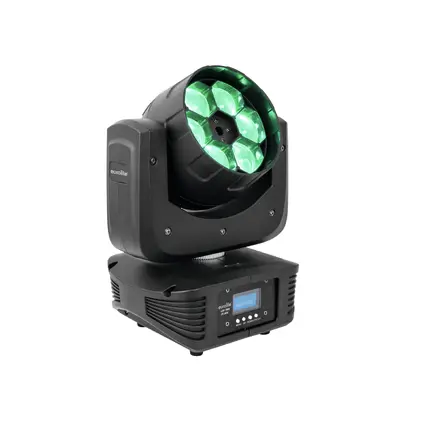

51785956 EUROLITE LED TMH FE-600 Beam/Flower Effect

RGBW Moving Head flower with large zoom range and 6 x 12 W LEDs

Equipped with 6 x 12 W COB LED in the colors red, green, blue and white
Compact lightweight
Functions: colored beams in R, G, B and W, preset colors, built-in program, strobe effect with variable speed, dimmer, sound-control, Master/Slave operation
Adjustable zoom movement - from narrow single beam to room-filling beams - via rotating lens
Stepless RGBW color mixture
Positioning within 540° PAN and 190° TILT
PAN-angle switchable between 540° and 360°
Dimmer speed (step response) adjustable
Automatic position correction
Exact positioning via 16 bit PAN/TILT movement resolution
DMX-controlled operation or stand-alone operation with Master/Slave function
Sound-controlled via built-in microphone
Control board with LC display for adjusting the DMX-starting address, PAN/TILT reverse, reset
Switch-mode power supply for operation between 100 and 240 volts
Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power up to 8 devices
DMX512 control possible via any commercial DMX controller
Control: Stand-alone; Sound to light via Microphone; DMX
Projection: flicker-free
Effect: Multi beam effect; Single Beam

31005085 ROADINGER Flightcase 2x TMH FE-600

PRO flightcase for 2 TMH FE-600

Interior seperated in three compartments, two for TMH FE-600 and one for accessories
High-quality workmanship with wood, dark brown laminated
Aluminum profile frames (25 mm) with rounded edges
Interior upholstered with foam
Three-leg, medium-sized steel ball corners
2 hinges
2 high-quality butterfly locks
2 case handles
Additional dimensions: Compartment dimensions 24x29x30 cm
Additional dimensions: Accessory compartment 11,5x29x30 cm
Additional dimensions: Inside dimensions 67x29x30 cm
Made in Europe

Technical specifications

51785956 EUROLITE LED TMH FE-600 Beam/Flower Effect
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	90 W
IP classification:	IP20
Power connection:	Mains input Powercon (blue), mounting version Power supply cord with safety plug (provided)
Power output:	1 x Powercon (gray)
LED:	6 x COB (chip-on-board) 12 W 4in1 QCL RGBW
Beam angle:	6,5°
Max. TILT movement:	Exact positioning (16 bit resolution) 190° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Positioning switchable to 360° Auto position correction (feedback)
Flash rate:	0 - 18 Hz
DMX channels:	15
Cooling fan:	Yes
Control:	Stand-alone
	Sound to light via Microphone
	DMX
Housing color:	Black
Width:	24,5 cm
Height:	33 cm
Depth:	19 cm
Weight:	5,09 kg
DMX connection:	3-pin XLR
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
31005085 ROADINGER Flightcase 2x TMH FE-600
Maximum load:	50 kg
Color:	Dark brown laminated
Material:	Glued plywood 7 mm
Additional dimensions:	Compartment dimensions 24x29x30 cm
	Accessory compartment 11,5x29x30 cm
	Inside dimensions 67x29x30 cm
Strength:	7 mm
Width:	71,5 cm
Height:	33 cm
Depth:	33 cm
Weight:	10,40 kg

Support

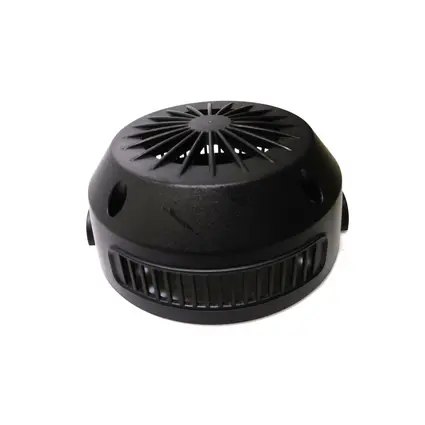

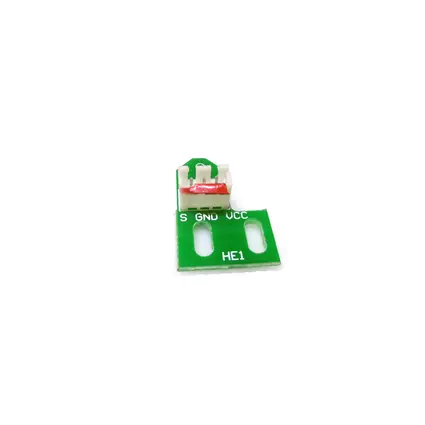

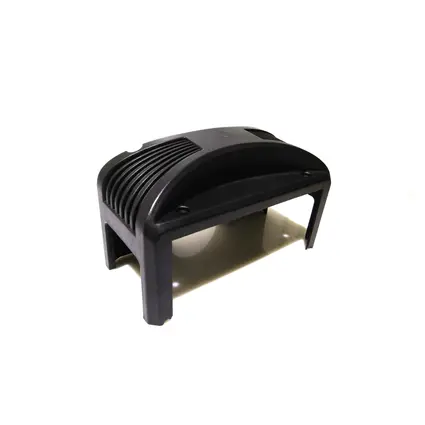

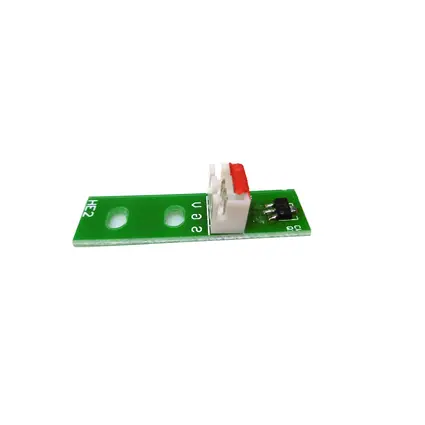

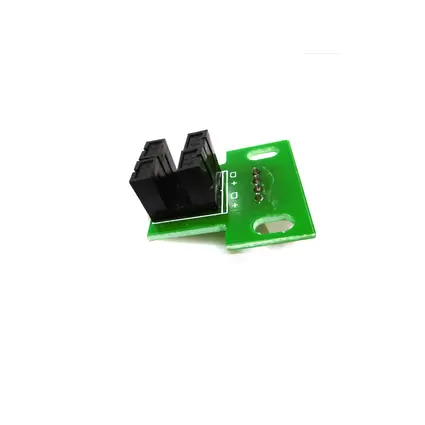

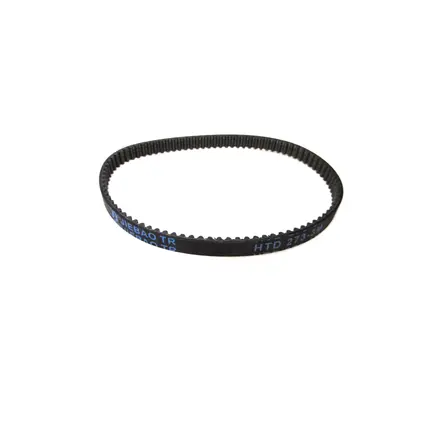

Spare parts

Loading spareparts. Please wait...

Downloads

All images

Name	Version	Language
20000127-Images.zip
