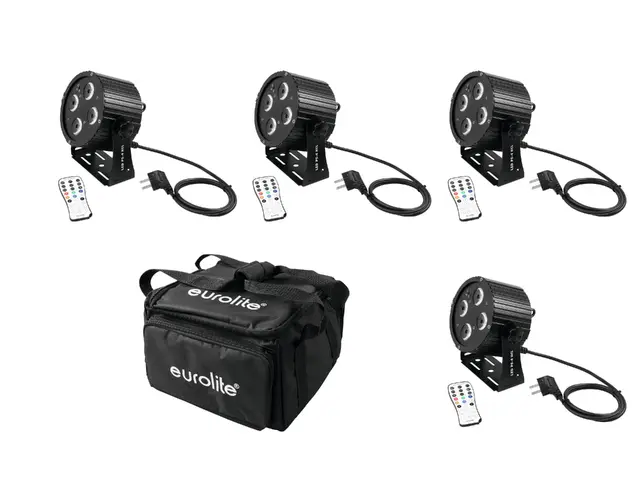

EUROLITE Set 4x LED PS-4 HCL Spot + SB-4 Soft-Bag

Name: EUROLITE Set 4x LED PS-4 HCL Spot + SB-4 Soft-Bag
Brand: EUROLITE

Stock for approx. 12 wk(s)

439,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

23°

Features

51913503 EUROLITE LED PS-4 HCL Spot

Compact, fanless spot with 12 W 6in1 LEDs (RGBAW+UV)

Operable in stand-alone mode or via DMX
DMX512 control possible via any commercial DMX controller (occupies max.10 channels)
4 or 10 DMX channels selectable for various applications
Sound-control via built-in microphone
Adjustable microphone sensitivity via control board
Functions: Static colors, RGBAW+UV color mixture, UV effects, auto mode, sound control, internal programs, dimmer and strobe settings via DMX, Master/Slave
Equipped with 4 x 12 W LEDs in red, green, blue, amber, white and UV
Designed for hanging or standing installation
Comfortable addressing and setting via control board with LED display and four operating buttons
Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
Switch-mode power supply for operation between 100 and 240 volts
Feed-through output allows to power up to 8 devices
Ready for connection via included IEC power cord with safety power plug
Case color: Black
Effect: Strobe effect; UV
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Power output: 1 x IEC connector (F) mounting version
Control: IR remote control (provided); Stand-alone; DMX
LED: 4 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)

Remote control

30130501 EUROLITE SB-4 Soft Bag M

Black softbag for up to four devices (Akku UP-4/TL-3 TCL)

Practical transport bag offers enough space for several lighting effects and accessories
Large interior, four times divisible and adaptable with foam dividers and pads
Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
Interior upholstery helps securing and safeguarding the fixtures during transportation
External pocket stores accessories like cables, clamps, lamps and tape
Made of easy-care nylon
Carrying handles

Technical specifications

51913503 EUROLITE LED PS-4 HCL Spot
DMX control channels:	4/10
DMX512 connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	12 W RGBAW+UV (6in1)
LED number:	4
Beam angle:	23°
Dimensions (L x W x H):	117 x 189 x 196 mm
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
IP classification:	IP20
Beam angle:	23°
Weight:	1,78 kg
Cooling fan:	No, cooling by convection
Power consumption:	33 W
Laser class:	Without laser
Height:	19,6 cm
Depth:	11,7 cm
Width:	18,9 cm
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (M)
Power output:	IEC connector (F) mounting version
DMX channels:	4; 10
LED:	4 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)
Power supply:	110-240 V AC, 50/60 Hz
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
30130501 EUROLITE SB-4 Soft Bag M
Outside dimensions (W x D x H):	300 x 300 x 200 mm
Internal measurements (total):	290 x 290 x 190 mm
Internal measurements (compartment):	140 x 140 x 190 mm
Color:	Black
Weight:	0,5 kg
Maximum load:	25 kg
Width:	30 cm
Depth:	30 cm
Height:	20 cm
Material:	Textile

Packaging units

PU	EAN	Weight	Dimensions
1	4026397583977	8,60 kg	82cm x 41cm x 30cm
