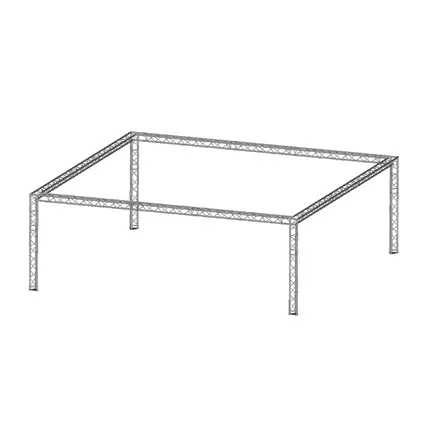

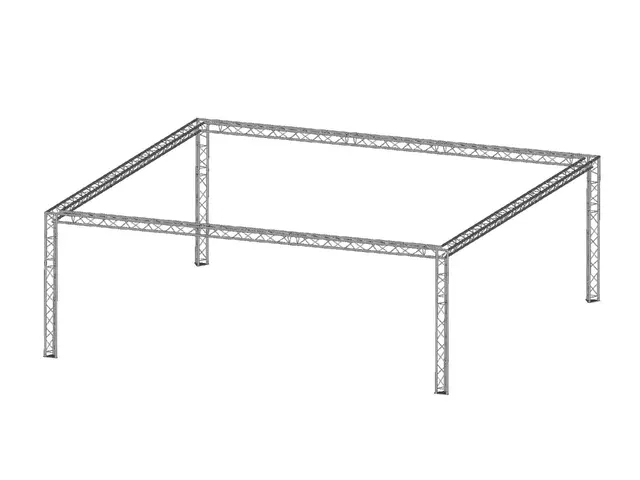

ALUTRUSS Truss set TRILOCK 6082 tip down 5x4x3m (WxDxH)

ALUTRUSS



ALUTRUSS Truss set TRILOCK 6082 tip down 5x4x3m (WxDxH)

Item no. 20000072

svg
svg

60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam

TRILOCK 6082 3-point truss system
TRILOCK 6082 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps. With 290 and 257 mm outer dimensions, TRILOCK QTTR is a stable truss system for higher loads and extended durability.

This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres. Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities. The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!

60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam

TRILOCK 6082 3-point truss system
TRILOCK 6082 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps. With 290 and 257 mm outer dimensions, TRILOCK QTTR is a stable truss system for higher loads and extended durability.

This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres. Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities. The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!

60302364 ALUTRUSS TRILOCK 6082-3000 3-Way Cross Beam

TRILOCK 6082 3-point truss system
TRILOCK 6082 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enought space for installing couplers, hooks and clamps. With 290 and 257 mm outer dimensions, TRILOCK 6082 is a stable truss system for higher loads and extended durability.

This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres. Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities. The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!
Features

60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam

3-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: horizontal 240 mm, vertical 207 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Trusspipe diameter: 50 mm
  • Made in Europe; TÜV Süd

60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam

3-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: horizontal 240 mm, vertical 207 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Trusspipe diameter: 50 mm
  • Made in Europe; TÜV Süd

60302364 ALUTRUSS TRILOCK 6082-3000 3-Way Cross Beam

3-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: horizontal 240 mm, vertical 207 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Trusspipe diameter: 50 mm
  • Made in Europe; TÜV Süd

60302400 ALUTRUSS TRILOCK 6082AL-33 3-Way Corner \/ right

3-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: horizontal 240 mm, vertical 207 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 2 x Connection set included
  • Trusspipe diameter: 50 mm
  • Corner angle: 90°
  • Made in Europe

60302402 ALUTRUSS TRILOCK 6082AL-34 3-Way Corner \/ left

3-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: horizontal 240 mm, vertical 207 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 2 x Connection set included
  • Trusspipe diameter: 50 mm
  • Corner angle: 90°
  • Made in Europe

6030189A ALUTRUSS TRILOCK Base Plate QTG-male

  • Trusspipe diameter: 50 mm
  • Made in Europe

60301902 ALUTRUSS QUICK-LOCK Spare Pivot

QUICK-LOCK spare pivot

  • Accessories for the robust truss system with Quick-Lock
  • For use with TRI/QUAD/E-GL33/QL-ET34 system
  • Trusspipe diameter: 50 mm
  • Made in Europe

60301903 ALUTRUSS QUICK-LOCK Spare Pin

QUICK-LOCK spare pin

  • Accessories for the robust truss system with Quick-Lock
  • For use with TRI/QUAD/E-GL33/QL-ET34 system
  • Trusspipe diameter: 50 mm
  • Made in Europe
Technical specifications
60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam
Main chords:50 x 2 mm
Braces:16 x 2 mm
Alloy:EN-AW 6082 T6 (AlMgSi1 T6)
Welding material:AlMg 5
Welding technique:TIG-welding
Outer dimensions:
Width:290 mm
Height:257 mm
Length:2000 mm
Trusspipe:50 mm x 2 mm
Strut diameter x thickness:16 x 2mm
Color:Alu colored
Weight:7,7 kg
Length:2000 mm
60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam
Main chords:50 x 2 mm
Braces:16 x 2 mm
Alloy:EN-AW 6082 T6 (AlMgSi1 T6)
Welding material:AlMg 5
Welding technique:TIG-welding
Outer dimensions:
Width:290 mm
Height:257 mm
Length:2500 mm
Trusspipe:50 mm x 2 mm
Strut diameter x thickness:16 x 2mm
Color:Alu colored
Weight:9,2 kg
Length:2500 mm
60302364 ALUTRUSS TRILOCK 6082-3000 3-Way Cross Beam
Main chords:50 x 2 mm
Braces:16 x 2 mm
Alloy:EN-AW 6082 T6 (AlMgSi1 T6)
Welding material:AlMg 5
Welding technique:TIG-welding
Outer dimensions:
Width:290 mm
Height:257 mm
Length:3000 mm
Trusspipe:50 mm x 2 mm
Strut diameter x thickness:16 x 2mm
Color:Alu colored
Weight:10,7 kg
Length:3000 mm
60302400 ALUTRUSS TRILOCK 6082AL-33 3-Way Corner \/ right
Trusspipe:50 mm x 2 mm
Strut diameter x thickness:16 x 2mm
Color:Alu colored
Weight:6,4 kg
Length:500 mm
60302402 ALUTRUSS TRILOCK 6082AL-34 3-Way Corner \/ left
Trusspipe:50 mm x 2 mm
Strut diameter x thickness:16 x 2mm
Color:Alu colored
Weight:6,5 kg
Length:500 mm
6030189A ALUTRUSS TRILOCK Base Plate QTG-male
Color:Alu colored
Weight:1,8 kg
60301902 ALUTRUSS QUICK-LOCK Spare Pivot
Color:Alu colored
Weight:0,044 kg
60301903 ALUTRUSS QUICK-LOCK Spare Pin
Color:Alu colored
Weight:0,004 kg
Packaging units
PU EAN Weight Dimensions
1 4026397580136
