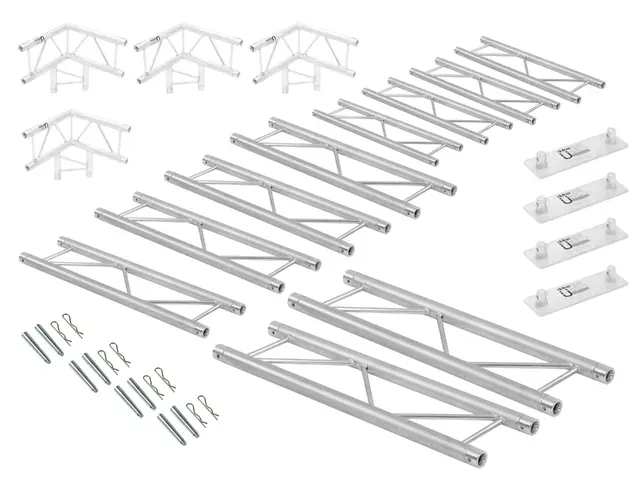

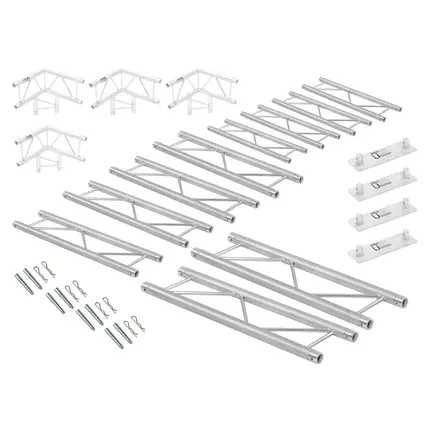

ALUTRUSS Truss set BILOCK BQ2 vertical 5x4x3m (WxDxH)

ALUTRUSS



ALUTRUSS Truss set BILOCK BQ2 vertical 5x4x3m (WxDxH)

Item no. 20000069

60210216 ALUTRUSS BILOCK BQ2-2000 2-way Cross Beam

BILOCK BQ2 2-point truss system
BILOCK BQ2 is a 2-point truss system made of aluminum. The individual elements are connected via two cones, pivots and pins.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The two main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.

With 290 mm outer dimensions, BILOCK BQ2 is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.

Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!

60210218 ALUTRUSS BILOCK BQ2-2500 2-way Cross Beam

BILOCK BQ2 2-point truss system
BILOCK BQ2 is a 2-point truss system made of aluminum. The individual elements are connected via two cones, pivots and pins.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The two main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.

With 290 mm outer dimensions, BILOCK BQ2 is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.

Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!

60210220 ALUTRUSS BILOCK BQ2-3000 2-way Cross Beam

BILOCK BQ2 2-point truss system
BILOCK BQ2 is a 2-point truss system made of aluminum. The individual elements are connected via two cones, pivots and pins.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The two main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.

With 290 mm outer dimensions, BILOCK BQ2 is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.

Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!
Features

60210216 ALUTRUSS BILOCK BQ2-2000 2-way Cross Beam

2-point truss system

  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 50 mm

60210218 ALUTRUSS BILOCK BQ2-2500 2-way Cross Beam

2-point truss system

  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 50 mm

60210220 ALUTRUSS BILOCK BQ2-3000 2-way Cross Beam

2-point truss system

  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 50 mm

60210245 ALUTRUSS BILOCK BQ2-PAL31V 3-way Corner 90°

2-point truss system

  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • For exhibition and shop installers, discotheque and theatre installations
  • 2 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 50 mm
  • Corner angle: 90 °

60210302 ALUTRUSS BILOCK Base Plate BLB male

  • Made in Europe
  • Trusspipe diameter: 50 mm

60301900 ALUTRUSS QUICK-LOCK Spare Pivot with Pin

QUICK-LOCK Set

  • Accessories for the robust truss system with Quick-Lock
  • For use with TRI/QUAD system
  • Made in Europe
  • Trusspipe diameter: 50 mm
Technical specifications

60210216 ALUTRUSS BILOCK BQ2-2000 2-way Cross Beam

Main chords:50 x 2 mm
Braces:16 x 2 mm
Alloy:AlMgSi 0.5
Welding material:AlMg 5
Welding technique:TIG-welding
Dimensions:240 mm (center - center)
Length:2000 mm
Trusspipe:50 mm x 2 mm
Strut:16 x 2mm
Color:Alu colored
Weight:4.4 kg

60210218 ALUTRUSS BILOCK BQ2-2500 2-way Cross Beam

Main chords:50 x 2 mm
Braces:16 x 2 mm
Alloy:AlMgSi 0.5
Welding material:AlMg 5
Welding technique:TIG-welding
Dimensions:240 mm (center - center)
Length:2500 mm
Trusspipe:50 mm x 2 mm
Strut:16 x 2mm
Color:Alu colored
Weight:5.3 kg

60210220 ALUTRUSS BILOCK BQ2-3000 2-way Cross Beam

Main chords:50 x 2 mm
Braces:16 x 2 mm
Alloy:AlMgSi 0.5
Welding material:AlMg 5
Welding technique:TIG-welding
Dimensions:240 mm (center - center)
Length:3000 mm
Trusspipe:50 mm x 2 mm
Strut:16 x 2mm
Color:Alu colored
Weight:6.2 kg

60210245 ALUTRUSS BILOCK BQ2-PAL31V 3-way Corner 90°

Trusspipe:50 mm x 2 mm
Strut:16 x 2mm
Color:Alu colored
Weight:3.2 kg

60210302 ALUTRUSS BILOCK Base Plate BLB male

Strut:16 x 2mm
Color:Alu colored
Weight:0.7 kg

60301900 ALUTRUSS QUICK-LOCK Spare Pivot with Pin

Color:Alu colored
Packaging units
PU EAN Weight Dimensions
1 4026397580105
