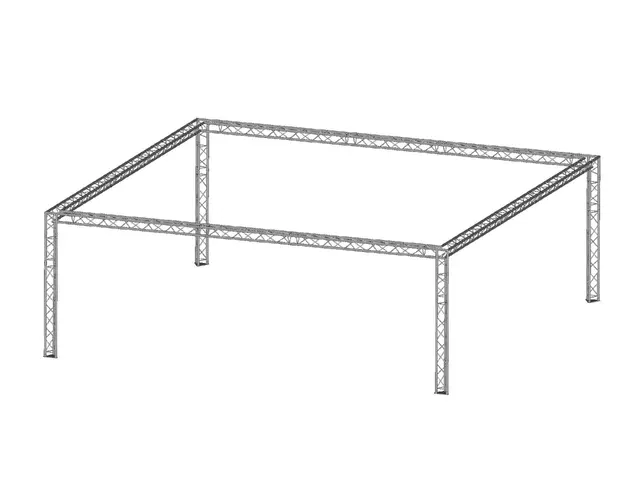

ALUTRUSS Truss set DECOLOCK DQ3 tip top 3.8x2.8x2.4m (WxDxH)

ALUTRUSS



ALUTRUSS Truss set DECOLOCK DQ3 tip top 3.8x2.8x2.4m (WxDxH)

Item no. 20000066

60301612 ALUTRUSS DECOLOCK DQ3-1000 3-Way Cross Beam

DECOLOCK DQ3 3-point truss system
DECOLOCK DQ3 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The three main chords are made of 35 mm aluminum tube with 2 mm wall thickness and offer sufficient strength at a low weight. The braces have a diameter of 10 mm with 2 mm wall thickness and provide the system with a decorative appearance.

With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.

DECOLOCK is primarily designed for decorative installations and can be used for permanent or temporary installations due to its highly aestethic appearance. The advantages of this system are the compact construction with 220 and 195 mm outer dimensions, low weight, optimum strength along with easy and quick assembly.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!

60301616 ALUTRUSS DECOLOCK DQ3-2000 3-Way Cross Beam

DECOLOCK DQ3 3-point truss system
DECOLOCK DQ3 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The three main chords are made of 35 mm aluminum tube with 2 mm wall thickness and offer sufficient strength at a low weight. The braces have a diameter of 10 mm with 2 mm wall thickness and provide the system with a decorative appearance.

With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.

DECOLOCK is primarily designed for decorative installations and can be used for permanent or temporary installations due to its highly aestethic appearance. The advantages of this system are the compact construction with 220 and 195 mm outer dimensions, low weight, optimum strength along with easy and quick assembly.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!
Features

60301612 ALUTRUSS DECOLOCK DQ3-1000 3-Way Cross Beam

3-point truss system

  • High-quality aluminum-tubes with 35 mm in diameter
  • Easy installation due to Quick-Lock connectors
  • Low weight
  • For exhibition and shop installers
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 35 mm

60301616 ALUTRUSS DECOLOCK DQ3-2000 3-Way Cross Beam

3-point truss system

  • High-quality aluminum-tubes with 35 mm in diameter
  • Easy installation due to Quick-Lock connectors
  • Low weight
  • For exhibition and shop installers
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 35 mm

60301644 ALUTRUSS DECOLOCK DQ3-PAL31 3-Way Corner 90°

3-point truss system

  • High-quality aluminum-tubes with 35 mm in diameter
  • Easy installation due to Quick-Lock connectors
  • Low weight
  • For exhibition and shop installers
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 35 mm
  • Corner angle: 90 °

60301646 ALUTRUSS DECOLOCK DQ3-PAL32 3-Way Corner 90°

3-point truss system

  • High-quality aluminum-tubes with 35 mm in diameter
  • Easy installation due to Quick-Lock connectors
  • Low weight
  • For exhibition and shop installers
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 35 mm
  • Corner angle: 90 °

60301684 ALUTRUSS DECOLOCK DQ3-BPM Base Plate MALE

  • Made in Europe
  • Trusspipe diameter: 35 mm

60301792 ALUTRUSS DECOLOCK Single Pin

  • Made in Europe
  • Trusspipe diameter: 35 mm

60301793 ALUTRUSS DECOLOCK Safety Pin

  • Made in Europe
  • Trusspipe diameter: 35 mm
Technical specifications

60301612 ALUTRUSS DECOLOCK DQ3-1000 3-Way Cross Beam

Main chords: 35 x 2 mm
Braces: 10 x 2 mm
Alloy:AlMgSi 0.5
Welding material:AlMg 5
Welding technique:TIG-welding
Dimensions: 185 mm (center - center)
Length: 1000 mm
Color:Alu colored
Trusspipe:35 mm x 2 mm
Strut:10 x 2mm
Weight:2.4 kg

60301616 ALUTRUSS DECOLOCK DQ3-2000 3-Way Cross Beam

Main chords: 35 x 2 mm
Braces: 10 x 2 mm
Alloy:AlMgSi 0.5
Welding material:AlMg 5
Welding technique:TIG-welding
Dimensions: 185 mm (center - center)
Length: 2000 mm
Color:Alu colored
Trusspipe:35 mm x 2 mm
Strut:10 x 2mm
Weight:4.6 kg

60301644 ALUTRUSS DECOLOCK DQ3-PAL31 3-Way Corner 90°

Color:Alu colored
Trusspipe:35 mm x 2 mm
Strut:10 x 2mm
Weight:2.6 kg

60301646 ALUTRUSS DECOLOCK DQ3-PAL32 3-Way Corner 90°

Color:Alu colored
Trusspipe:35 mm x 2 mm
Strut:10 x 2mm
Weight:2.6 kg

60301684 ALUTRUSS DECOLOCK DQ3-BPM Base Plate MALE

Color:Alu colored
Weight:0,545 kg

60301792 ALUTRUSS DECOLOCK Single Pin

Color:Alu colored
Weight:0,012 kg

60301793 ALUTRUSS DECOLOCK Safety Pin

Color:Alu colored
Weight:0,003 kg
Packaging units
PU EAN Weight Dimensions
1 4026397121407
