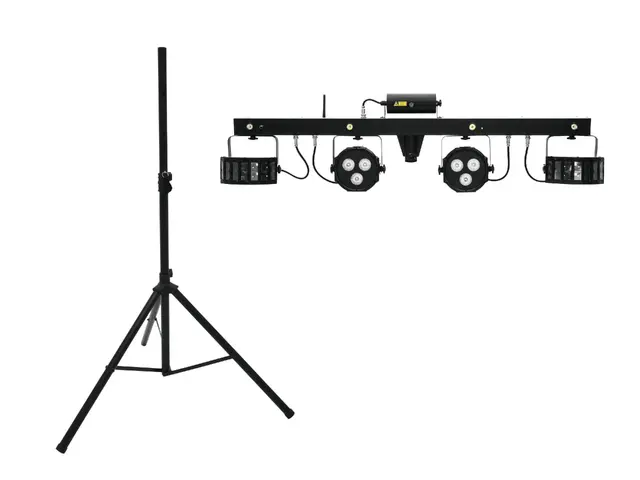

EUROLITE Set LED KLS Laser Bar FX + M-2 Speaker-system stand

EUROLITE



EUROLITE Set LED KLS Laser Bar FX + M-2 Speaker-system stand

Item no. 20000054

svg
13°
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
Features

51741090 EUROLITE LED KLS Laser Bar FX Light Set

Bar with 2 derbies, 2 spots, white strobe LEDs, laser (RG, 2M), foot switch

  • 4in1 DMX light effect bar with laser, 2 rotating LED derbies, 2 LED spots and white strobe LEDs
  • Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
  • Ultra-light ideally suited for mobile use
  • Crossbar with integrated DMX control unit and stand sleeve
  • Comes pre-assembled with practical transport bag
  • Convenient control via wireless foot switch and IR remote control
  • 2 laser diodes project hundreds of red and green laser beams
  • 2 rotating derbies for mirror ball effects with three bright LEDs (red, green and blue) each
  • 2 spots three bright RGB LEDs (3in1) each
  • 4 white strobe LEDs
  • Auto, music, master/slave and DMX mode
  • 37 built-in auto and music show programs that include all 4 effect units
  • Addressing and setting via control panel with 4-digit LED display
  • Sound-control via built-in microphone with sensitivity control
  • LED derbies and LED spots individually adjustable and interchangeable
  • Swivel mounting brackets for truss mounting
  • When fog is used, this effect becomes especially attractive
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Feed-through output allows to power up to 8 devices
  • LED: 4 x high-power 1 W CW
  • LED: 3 x high-power 3 W 3in1 TCL RGB
  • LED: 3 x high-power 1 W RGB (homogenous color mix)
  • Power output: 1 x IEC connector (F) mounting version
  • Control: Wireless footswitch; Sound to light viaMicrophone; IR remote control; Stand-alone; DMX
  • Effect: Multi beam effect; Strobe effect

laser

  • Laser color: 2in1 BCL RG

Foot control

  • Battery: 1 x battery 12 V 23AE alkaline manganese (provided)

Remote control

  • Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

60004182 OMNITRONIC M-2 Speaker-System Stand

Simple speaker stand, extendible up to 170 cm, max. load 30 kg

  • Stable steel version
  • Height adjustable, with locking pin
  • Height: 100-170cm
  • Tube diameter: Ø 35 mm
  • Centric load: 30 kg
  • Scratch-resistant black finish
Technical specifications
51741090 EUROLITE LED KLS Laser Bar FX Light Set
Power supply:110-240 V AC, 50/60 Hz
Power consumption:50 W
LED:4 x high-power 1 W CW
3 x high-power 3 W 3in1 TCL RGB
3 x high-power 1 W RGB (homogenous color mix)
Flash rate:0 - 30 Hz
DMX channels:3; 5; 9; 27
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:1 x IEC connector (F) mounting version
Cooling fan:Yes
Control:Wireless footswitch
Sound to light via Microphone
IR remote control
Stand-alone
DMX
Beam angle:13°
Case color:Black
Width:132 cm
Height:32 cm
Depth:14,5 cm
Weight:9,65 kg
laser
Laser class:Class 2M
Laser module:R red 100 mW 650nm
G green 30 mW 532nm
Foot control
Battery:1 x battery 12 V 23AE alkaline manganese (provided)
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
60004182 OMNITRONIC M-2 Speaker-System Stand
Maximum carrying capacity:30 kg
Height:maximum: 1,70 m
minimum: 1 m
Color:Black
Attachment:Flange system 35mm
Material:Steel
Weight:2,50 kg
Packaging units
PU EAN Weight Dimensions
1 4026397579482
