EUROLITE Set 8x AKKU UP-4 HCL Spot WDMX wh + Case

svg
svg
22°
svg
7 mm
svg
svg
svg
svg
svg
svg
svg
EUROLITE

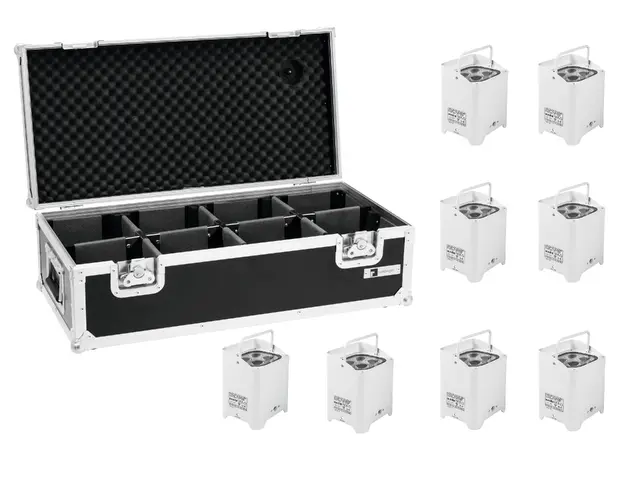

EUROLITE Set 8x AKKU UP-4 HCL Spot WDMX wh + Case

Item no. 20000043

Features

41700561 EUROLITE AKKU UP-4 HCL Spot WDMX wh

Uplight with 4 x 12 W 6in1 LED & wireless DMX receiver (Wireless Solution)

  • Compact and bright
  • Equipped with 4 x 12 W HCL LED in red, green, blue, amber, white and UV
  • With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
  • Operation via mains connection or built-in rechargeable lithium-ion battery with up to 8.5 hours operating time
  • Integrated automatic charging of the battery with indicator
  • Controllable via EUROLITE IR-7 remote control; included in the delivery
  • With integrated folding foot for angled placement by floor installation
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 6, 8 or 12 DMX channels selectable
  • Functions: static colors, stepless RGBAW+UV color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
  • Dimmer speed (step response) adjustable
  • Adjustable microphone sensitivity
  • Addressing via control panel with 4-digit LED display
  • Switch-mode power supply for operation between 100 and 240 volts
  • Ready for connection via included power cable with safety power plug
  • Feed-through output allows to power up to 8 devices
  • DMX control via any standard DMX controller
  • Available in 2 housing colors: black and white
  • Control: IR remote control included; DMX; Stand-alone; Sound to light via Microphone; W-DMX by wireless solution built-in
  • Projection: flicker-free

Remote control

  • Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

31005075 ROADINGER Flightcase 8x AKKU UP-4

PRO transport case for 8x AKKU UP-4

  • Fitted for eight EUROLITE AKKU UP-4
  • High-quality workmanship with birch multiplex, dark brown laminated
  • Aluminum profile frames with rounded edges
  • Interior upholstered with foam
  • Three-leg, big steel ball corners
  • Cable conduit allows recharging the devicex inside the case
  • 2 hinges
  • 1 chrome butterfly lock
  • 1 chrome case handles
  • 4 rubber feet
  • Additional dimensions: Compartment dimensions 16x15x19,5 cm
  • Additional dimensions: Inside dimensions 66,5x31x19,5 cm
  • Made in Europe
Technical specifications
41700561 EUROLITE AKKU UP-4 HCL Spot WDMX wh
Power supply:100-240 V AC, 50/60 Hz
Power consumption:37 W
IP classification:IP20
Power connection:Battery/battery pack
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:1 x IEC connector (F) mounting version
LED:4 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)
Beam angle:22°
DMX channels:6; 8; 12
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling fan:No, cooling by convection
Control:IR remote control included
DMX
Stand-alone
Sound to light via Microphone
W-DMX by wireless solution built-in
Housing color:White
Carrier frequency:2,4 GHz
Width:13,8 cm
Height:19,1 cm
Depth:14,5 cm
Weight:2,90 kg
Device
Battery pack type:1 x Lithium ion 14,8 V, 6600 mAh, 97,68 Wh
Accumulator:battery operation up to 8,5h depending on program used
recharging time 4,5h
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31005075 ROADINGER Flightcase 8x AKKU UP-4
Maximum load:50 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Additional dimensions:Compartment dimensions 16x15x19,5 cm
Inside dimensions 66,5x31x19,5 cm
Strength:7 mm
Width:70,5 cm
Height:25,5 cm
Depth:35 cm
Weight:8,60 kg
