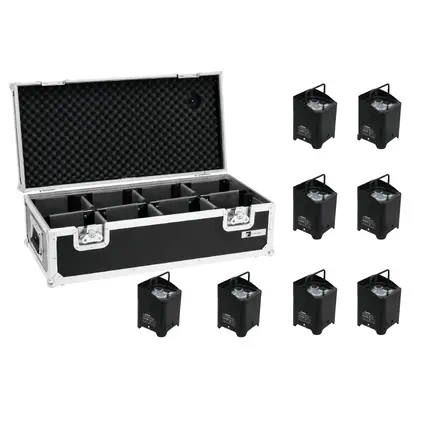

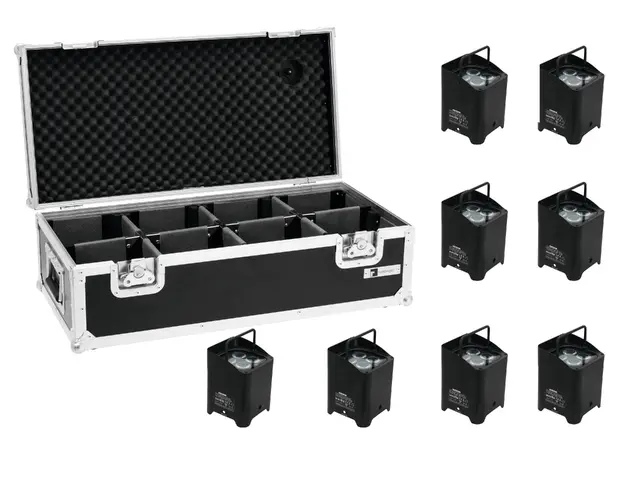

EUROLITE Set 8x AKKU UP-4 QCL Spot + Case

EUROLITE



EUROLITE Set 8x AKKU UP-4 QCL Spot + Case

Stock for approx. 12 wk(s)
2.465,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000035

svg
13°
svg
7 mm
svg
svg
svg
svg
svg
svg
svg
Features

41700550 EUROLITE AKKU UP-4 QCL Spot

Bright Uplight with 4 x 8 W 4in1 LED

  • Compact and bright
  • Equipped with 4 x 8 W QCL LED in red, green, blue and white
  • Operation via mains connection or built-in rechargeable lithium-ion battery with up to 8.5 hours operating time
  • Integrated automatic charging of the battery with indicator
  • Controllable via EUROLITE IR-7 remote control; included in the delivery
  • With integrated folding foot for flexible placement
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 4, 6 or 10 DMX channels selectable
  • Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
  • Dimmer speed (step response) adjustable
  • Adjustable microphone sensitivity
  • Addressing via control panel with 4-digit LED display
  • Switch-mode power supply for operation between 100 and 240 volts
  • Ready for connection via included power cable with safety power plug
  • Feed-through output allows to power up to 8 devices
  • DMX control via any standard DMX controller
  • LED: 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
  • Power output: 1 x IEC connector (F) mounting version
  • Control: IR remote control included; DMX; Sound to light viaMicrophone; Stand-alone
  • Projection: flicker-free

Remote control

  • Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

31005075 ROADINGER Flightcase 8x AKKU UP-4

PRO transport case for 8x AKKU UP-4

  • Fitted for eight EUROLITE AKKU UP-4
  • High-quality workmanship with birch multiplex, dark brown laminated
  • Aluminum profile frames with rounded edges
  • Interior upholstered with foam
  • Three-leg, big steel ball corners
  • Cable conduit allows recharging the devicex inside the case
  • 2 hinges
  • 1 chrome butterfly lock
  • 1 chrome case handles
  • 4 rubber feet
  • Made in Europe
Technical specifications
41700550 EUROLITE AKKU UP-4 QCL Spot
Power supply:110-240 V AC, 50/60 Hz
Power consumption:45,00 W
LED:4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
DMX channels:4; 6; 10
IP classification:IP20
Power connection:Battery/battery pack
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:1 x IEC connector (F) mounting version
Cooling fan:No, cooling by convection
Control:IR remote control included
DMX
Sound to light via Microphone
Stand-alone
Beam angle:13°
Case color:Black
Width:13,8 cm
Height:19,1 cm
Depth:14,5 cm
Weight:2,90 kg
Device
Battery pack type:1 x Lithium ion 14,8 V, 6600 mAh, 97,68 Wh
Accumulator:battery operation up to 8,5h depending on program used
recharging time 5h
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
DMX connection:3-pin XLR
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31005075 ROADINGER Flightcase 8x AKKU UP-4
Maximum load:50 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:70,5 cm
Height:25,5 cm
Depth:35 cm
Weight:8,60 kg
Inside dimensions (W x D x H):665 x 310 x 195 mm
Compartment dimensions (W x D x H):160 x 150 x 195 mm
Packaging units
PU EAN Weight Dimensions
1 4026397576900
