EUROLITE Set 4x AKKU UP-4 QCL Spot + Case

7 mm

13°

EUROLITE Set 4x AKKU UP-4 QCL Spot + Case

The article is no longer in our assortment.

No. 20000034

Print product

Product badge

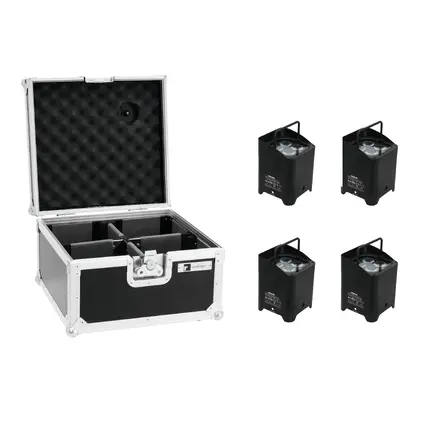

Set consisting of:

4 x EUROLITE AKKU UP-4 QCL Spot

1 x ROADINGER Flightcase 4x AKKU UP-4

Features

EUROLITE AKKU UP-4 QCL Spot

Bright Uplight with 4 x 8 W 4in1 LED

Compact and bright
Equipped with 4 x 8 W QCL LED in red, green, blue and white
Operation via mains connection or built-in rechargeable lithium-ion battery with up to 8.5 hours operating time
Integrated automatic charging of the battery with indicator
Controllable via EUROLITE IR-7 remote control; included in the delivery
With integrated folding foot for flexible placement
DMX-controlled operation or stand-alone operation with Master/Slave function
4, 6 or 10 DMX channels selectable
Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
Dimmer speed (step response) adjustable
Adjustable microphone sensitivity
Addressing via control panel with 4-digit LED display
Switch-mode power supply for operation between 100 and 240 volts
Ready for connection via included power cable with safety power plug
Feed-through output allows to power up to 8 devices
DMX control via any standard DMX controller
4 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
The device is cooled by passive convection cooling
Control via DMX; stand-alone; sound to light via microphone
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 13°

device

Cordless, flexible and versatile
Battery operation up to 8,5h depending on program used

Package contents

1 x device, 1 x remote control

ROADINGER Flightcase 4x AKKU UP-4

Trunk case, PRO version

Cable bushing allows loading the devices inside
With 4 device compartments
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 25mm with rounded edges
Hinged, chromium plated case handle
2 chrome tip-over locks
1 high-quality butterfly lock
Rubber feet
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	16,19 kg
EUROLITE AKKU UP-4 QCL Spot
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	45,00 W
IP classification:	IP20
Power connection:	Battery/battery pack Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED type:	4 x 8 W high-power 4in1 QCL RGBW (homogenous color mix)
DMX channels:	4; 6; 10
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; sound to light via microphone
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	13°
Beam angle (1/2 peak):	13°
Beam angle (1/10 peak):	28,5°
Housing color:	Black
Dimensions:	Width: 13,8 cm Depth: 14,5 cm Height: 19,1 cm
Weight:	2,90 kg
Device
Battery pack type:	1 x lithium ion 14,8 V, 6600 mAh, 97,68 Wh
Battery pack:	Battery operation up to 8,5h depending on program used Recharging time 5h
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x AKKU UP-4
Maximum load:	25 kg
Aluminum profile frames:	25 mm
Case handle:	1 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 1 pc/pcs
Transport aid:	Rubber feet
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Compartment dimensions:	16 cm x 15 cm x 15,5 cm
Inside dimensions:	33 cm x 31 cm x 15,5 cm
Dimensions:	Width: 37 cm Depth: 35 cm Height: 25,5 cm
Weight:	4,59 kg
