Technical specifications

Weight:	15.02 kg
EUROLITE AKKU UP-4 QCL Spot QuickDMX
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Protection class:	Protection class I
Power connection:	Battery/battery pack Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length:	Approx. 1 m
Power output:	1 x P-Con (gray), mounting version
Battery pack type:	1 x lithium ion 14.8 V, 7800 mAh, 115.44 Wh
Battery pack:	Battery operation up to 9.5h depending on program used Recharging time 3h
Lamp type:	LED lamp
LED type:	4 x 8 W SMD 9080 4in1 RGBW (homogenous color mix)
DMX channels:	3; 4; 6; 8; 10
DMX input:	1 x 3-pin XLR (M) mounting version IP
DMX output:	1 x 3-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; QuickDMX; IR remote control; sound to light via microphone
Fixtures available for:	Light´J; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Projection:	Flicker-free
Carrier frequency:	2.4 GHz
Beam angle (1/2 peak):	22°
Beam angle (1/10 peak):	32°
Housing color:	Black
Attachment system:	Bracket for floor use
Dimensions:	Width: 16.7 cm Depth: 13.8 cm Height: 18.8 cm
Weight:	3.59 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE SB-4 Soft Bag M
Maximum load:	25 kg
Material:	Textile
Color:	Black
Compartment dimensions:	14 cm x 14 cm x 19 cm
Inside dimensions:	29 cm x 29 cm x 19 cm
Dimensions:	Width: 30 cm Depth: 33 cm Height: 20 cm
Weight:	0.51 kg
EUROLITE QuickDMX Wireless Transmitter
Power supply:	100-240 V AC, 50/60 Hz 5V DC 1000 mA
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
DMX channels:	Output 512
DMX input:	1 x 3-pin XLR (M)
Control:	QuickDMX; DMX; plug and play
Range:	Range up to 400m
Carrier frequency:	2.4 GHz
Parallel mode:	Max. 6 transmitter
RF power output:	19 dBm
Modulation:	GFSK
Color:	Silver
Dimensions:	Length: 21.2 cm Diameter: Ø 1.8 cm
Weight:	0.15 kg

Spare parts

Pcb (Control) AKKU UP-4 QCL Spot Quick DMX (SL-MAIN-BAT)

Antenna QuickDMX (RP SMA plug)

Pcb (Power supply) 16,8V/2,5A AKKU UP-4 QCL Spot (HS1680250)

IC SN 75176 SOIC-8 SMD

Pcb (IR sensor) AKKU UP QCL Spot Quick DMX (SL-IR)

Pcb (Power indicator) AKKU UP QCL Spot Quick DMX (SL-BAT-DISP)

Cable USB - Barrel plug QuickDMX

Akku 14,8V/7800mAh Li-ion (18650) AKKU UP-4 QCL Spot QuickDMX

Power Supply 5V/0,7A DC (STC-A220501700USBA-A) QuickDMX

IC RFX2401C SMD

Pcb (LED) AKKU UP-4 QCL Spot Quick DMX (20160122)

IC nRF24L01+ (2,4GHz transceiver) SMD

Pcb (DMX) AKKU UP-4 QCL Spot Quick DMX (RX-XLR-3/5)

Spannungsregler S2PC 3,3V/100mA

Lens AKKU UP-4 QCL Spot QuickDMX

Power Supply 5V/1000mA DC (AED09-050GQAU-2) QuickDMX

LED QCL 8W RGBW (TX-BRWG2B140)

Pcb (QuickDMX) AKKU UP-4 QCL Spot Quick DMX (LC-512M)

FUTURELIGHT Switch ON/OFF 3A small black 2-pin

Pcb (DMX/XLR 3-pol) AKKU UP-1 QCL

Screen (Glass/Display) AKKU UP-4 QCL Spot QuickDMX

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000032-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/0aEad52apk0

https://www.youtube-nocookie.com/embed/pWi46QICJ-o

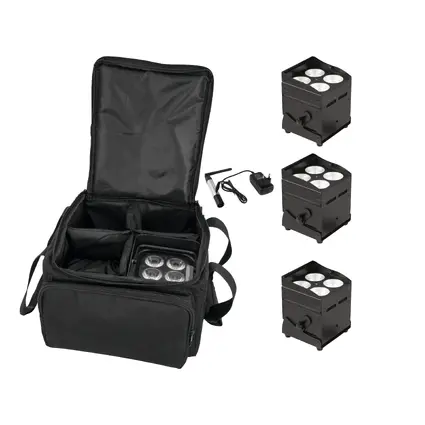

EUROLITE Set 4x AKKU UP-4 QCL Spot QuickDMX + SB-4 Soft Bag + QuickDMX Wireless transmitter

The article is no longer in our assortment.

No. 20000032

22°

1.8 cm

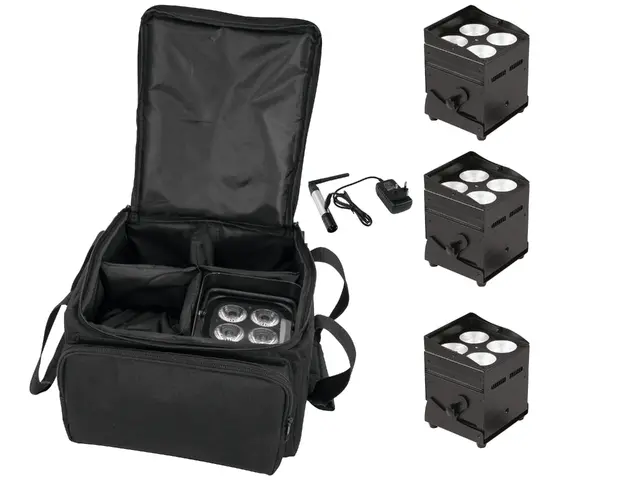

Set consisting of:

4 x EUROLITE AKKU UP-4 QCL Spot QuickDMX

1 x EUROLITE SB-4 Soft Bag M

1 x EUROLITE QuickDMX Wireless Transmitter

EUROLITE AKKU UP-4 QCL Spot QuickDMX

Bright Uplight with 4 x 8 W 4in1 LED and QuickDMX transceiver

Integrated QuickDMX transceiver for wireless DMX control
Cordless, flexible and versatile
Battery operation up to 9.5h depending on program used
Integrated automatic charging of the battery and status indicator
4 LEDs 8 W SMD 9080 4in1 RGBW (homogenous color mix)
Dimmer speed (step response) adjustable; Dimmer electronic; color blend stepless; color change adjustable
Strobe effect
The device is cooled by passive convection cooling
Control via DMX; stand-alone; QuickDMX; IR remote control; sound to light via microphone
Flicker-free
With a beam angle of 22°
With bracket for floor use
Mains input and output for power linking up to 8 units
For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; small rental
Silent operation
Application possibility: Standing

EUROLITE SB-4 Soft Bag M

Black soft bag for up to four devices (AKKU UP-4/TL-3 TCL)

Practical transport bag offers enough space for several lighting effects and accessories
Large interior, four times divisible and adaptable with foam dividers and pads
Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
Interior upholstery helps securing and safeguarding the fixtures during transportation
External pocket stores accessories like cables, clamps, lamps and tape
Made of easy-care nylon
Carrying handles

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

User-friendly 3-pin XLR adapter (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
1 to 512 QuickDMX receivers can be controlled by each transmitter
LED indication for functions
Transceiver, to be used as transmitter or receiver
Can transmit up to 512 DMX channels
Control via QuickDMX; DMX; plug and play
Operating range up to 400m
Up to 6 transmitters can be operated in parallel without interference
