EUROLITE Set 4x LED TMH-12 + Controller + Cases

No. 20000029

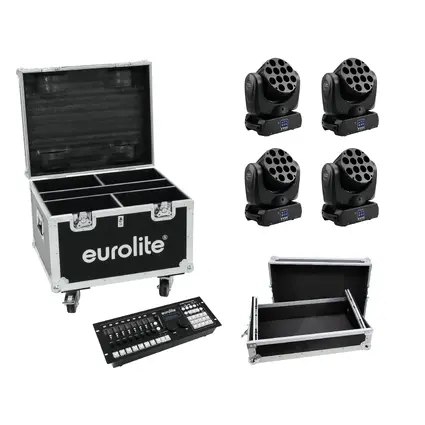

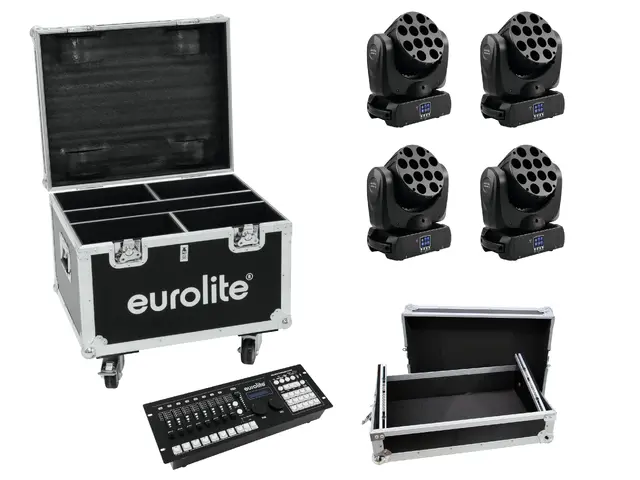

Set consisting of:
mpn51785967
4 x EUROLITE LED TMH-12 Moving Head Beam
mpn31001075
1 x ROADINGER Flightcase 4x TMH-12
mpn3022785N
4 x EUROLITE DMX Cable XLR 3-pin 10m bk
mpn70064516
1 x EUROLITE DMX Move Controller 512 PRO
mpn3011151A
1 x ROADINGER Mixer Case Pro MCB-19, sloping, bk, 6U
Features

EUROLITE LED TMH-12 Moving Head Beam

4in1 moving head with narrow beam angle

  • Equipped with 12 high-power 10 W RGBW CREE LEDs (4in1)
  • Compact lightweight
  • Narrow beam angle
  • Positioning within 630° PAN and 200° TILT
  • Stepless RGBW color mixture
  • Different dimmer speeds (step response) adjustable
  • Masterdimmer
  • 8 internal programs can be called up via Control board
  • Color-macro-function for an easy selection of possible color-combinations
  • Strobe effect with 1-18 flashes per second
  • Random strobe effect
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Automatic position correction
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-control via built-in microphone
  • Control board with graphic LCD for adjusting the DMX-starting address, PAN/TILT reverse, program, reset, operating hours
  • Switch-mode power supply
  • Automatic power supply adaption between 100 and 240 Volts without power selector
  • DMX control via every standard DMX controller
  • 12 powerful LEDs 10 W high-power 4in1 QCL RGBW (homogenous color mix)
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Gobo effect
  • The device is cooled by cooling fan
  • Control via DMX; stand-alone; sound to light via microphone
  • Preprogrammed in Light´J; LED PC-Control 512
  • With a beam angle of 9°

Package contents

  • 1 x omega bracket

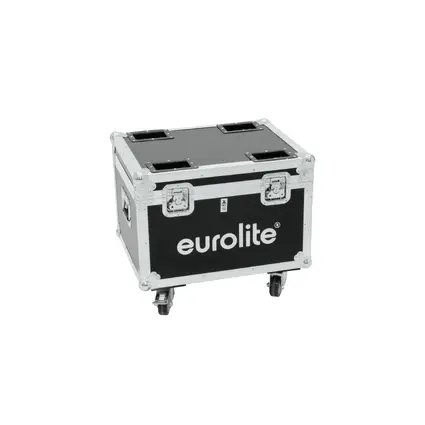

ROADINGER Flightcase 4x TMH-12

Flightcase for four TMH-12 spots

  • Interior suitable for four TMH-12 Moving-Heads
  • With two additional storage compartments
  • Interior and cover (not removable) upholstered with foam
  • High-quality workmanship with 8 mm multiplex birch wood, black laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • 4 castors (100 mm), 2 of which with locking brakes
  • 4 stacking dishes for stacking the cases
  • Three-leg, medium-sized steel ball corners (chrome)
  • 2 hinges
  • 2 high-quality butterfly locks
  • 2 case handles
  • Castors
  • For further information about this product, please refer to the Data Sheet under "Downloads"

EUROLITE DMX Cable XLR 3-pin 10m bk

High-quality DMX cable

  • Adheres to the DMX standard USITT DMX-512/1990/-A
  • Very flexible cable
  • Electric cable with good shielding
  • Robust version
  • For building DMX controlled lighting systems, LED spotlights etc.

Package contents

  • 1 x XLR cable

EUROLITE DMX Move Controller 512 PRO

Console with motorized faders, color & motion effects (24 devices/34 channels)

  • DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
  • 512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
  • For 24 fixtures with max. 34 control channels each
  • USB port for storing program data
  • Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
  • Several movement patterns and color effects can be used simultaneously
  • Manual, time-controlled or sound-controlled chase running mode
  • 3 DMX fixture levels can be controlled
  • 8 motorized DMX channel faders for user-friendly control
  • The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes
  • 2 jog wheels for pan/tilt
  • Master fader for color and dimmer channels
  • Blackout function
  • Color-illuminated buttons provide easy orientation
  • Can transmit up to 512 DMX channels
  • (19") 48.3 cm rack installation 4 U
  • Programmable 30 scenes/chases each with 485 cues distributed over 2 page/s
  • Control via DMX; RDM
  • Firmware can be updated
  • Desktop console housing
  • For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer
  • Silent operation

Package contents

  • 1 x controller, 1 x user manual, 1 x power cord

ROADINGER Mixer Case Pro MCB-19, sloping, bk, 6U

Rack case

  • Upward tilted profile rails for top-operated units
  • 6 U
  • High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
  • Interior with foam padding
  • Removable cover
  • Aluminum profile frames 25mm with rounded edges
  • Rugged carrying handle
  • 2 high-quality butterfly locks with shut-off function
  • Rubber feet
  • With profile rails suitable for 19" units
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Weight:49,68 kg
EUROLITE LED TMH-12 Moving Head Beam
Power supply:100-240 V AC, 50/60 Hz
Power consumption:150 W
IP classification:IP20
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:LED lamp
LED type:12 x 10 W high-power 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:200° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:630° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:0 - 18 Hz
DMX channels:12
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX; stand-alone; sound to light via microphone
Preprogrammed in:Light´J; LED PC-Control 512
Beam angle:
Beam angle (1/2 peak):
Housing color:Black
Dimensions:Width: 25,5 cm
Depth: 15,5 cm
Height: 31 cm
Weight:5,10 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 4x TMH-12
Maximum load:50 kg
Transport aid:Castors
Material:Plywood multi-layer glued, 8 mm
Color:Black, laminated
Dimensions:Width: 60 cm
Depth: 49,5 cm
Height: 52 cm
Weight:17,25 kg
Strength:8 mm
Outside dimensions (W x D x H):600 x 495 x 520 mm
Inside dimensions (W x D x H):550 x 440 x 300 mm
Compartment dimensions (W x D x H):265 x 150 x 300 mm
Accessory compartment (W x D x H):90 x 550 x 300 mm
EUROLITE DMX Cable XLR 3-pin 10m bk
Cable length:10 m
Plug A:1 x 3-pin XLR (M)
Plug B:1 x 3-pin XLR (F)
Color:Black
Weight:0,48 kg
EUROLITE DMX Move Controller 512 PRO
Power supply:100-240 V AC, 50/60 Hz
Power consumption:20 W
IP classification:IP20
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Programs:Programmable 30 scenes/chases each with 485 cues distributed over 2 page/s
DMX channels:Output 512
DMX output:1 x 3-pin XLR (F) mounting version
Control:DMX; RDM
Housing color:Black
Available storage media:USB devices (FAT 32)
USB port:Type A
Color:Black
PC connect:, firmware can be updated
Housing design:(19") 48.3 cm rack installation 4 U
Desktop console housing
Dimensions:Width: 48,3 cm
Depth: 17 cm
Height: 8,9 cm
Weight:3,82 kg
Noise classification:Class 0 (no noise at all)
ROADINGER Mixer Case Pro MCB-19, sloping, bk, 6U
Maximum load:25 kg
Removable covers:1 pc/pcs
Aluminum profile frames:25 mm
Carrying handle:1 pc/pcs
Lock:Butterfly lock: 2 pc/pcs with shut-off function
Transport aid:Rubber feet
Material:Plywood multi-layer glued, 7 mm
Color:Black, laminated
Inside dimensions:31 cm x 10 cm
Front panel width:19"
Mounting height:Approx. 26.5 cm (6 U)
Mounting depth:100 mm - 180 mm
Housing design:6 U
Dimensions:Width: 54,5 cm
Depth: 35 cm
Height: 24 cm
Weight:6,30 kg
