Complete wireless PA system
OMNITRONIC W.A.M.S-04A Wireless PA system

OMNITRONIC

Complete wireless PA system

OMNITRONIC W.A.M.S-04A Wireless PA system

Item no. 13106981

Features
  • Easy-to-use complete system with wireless microphone, CD player, cassette deck, amplifier and speaker-system
  • Ideal for all mains independent and wireless applications like seminars, conferences, presentations, tradeshows, fashion shows, solo entertainers, weddings, sales booths, aerobics etc.
  • Playback from CD or cassette with adjustable playback level
  • Connection of up to three cabled mics (wireless mic and MIC 1 on channel 1)
  • Switchable and adjustable echo effect for mic channels
  • Connection of further Line signals via adjustable AUX IN socket, e.g. for playing multi-media applications from PC, laptop or portable MP3 player
  • Switchable voice priority function for automatic attenuation of mic and aux channels
  • Tone control
  • Line ouput for connecting further PA systems
  • Recording output and aux ouptput socket for connecting further recording devices (PC, laptop, MD recorder)

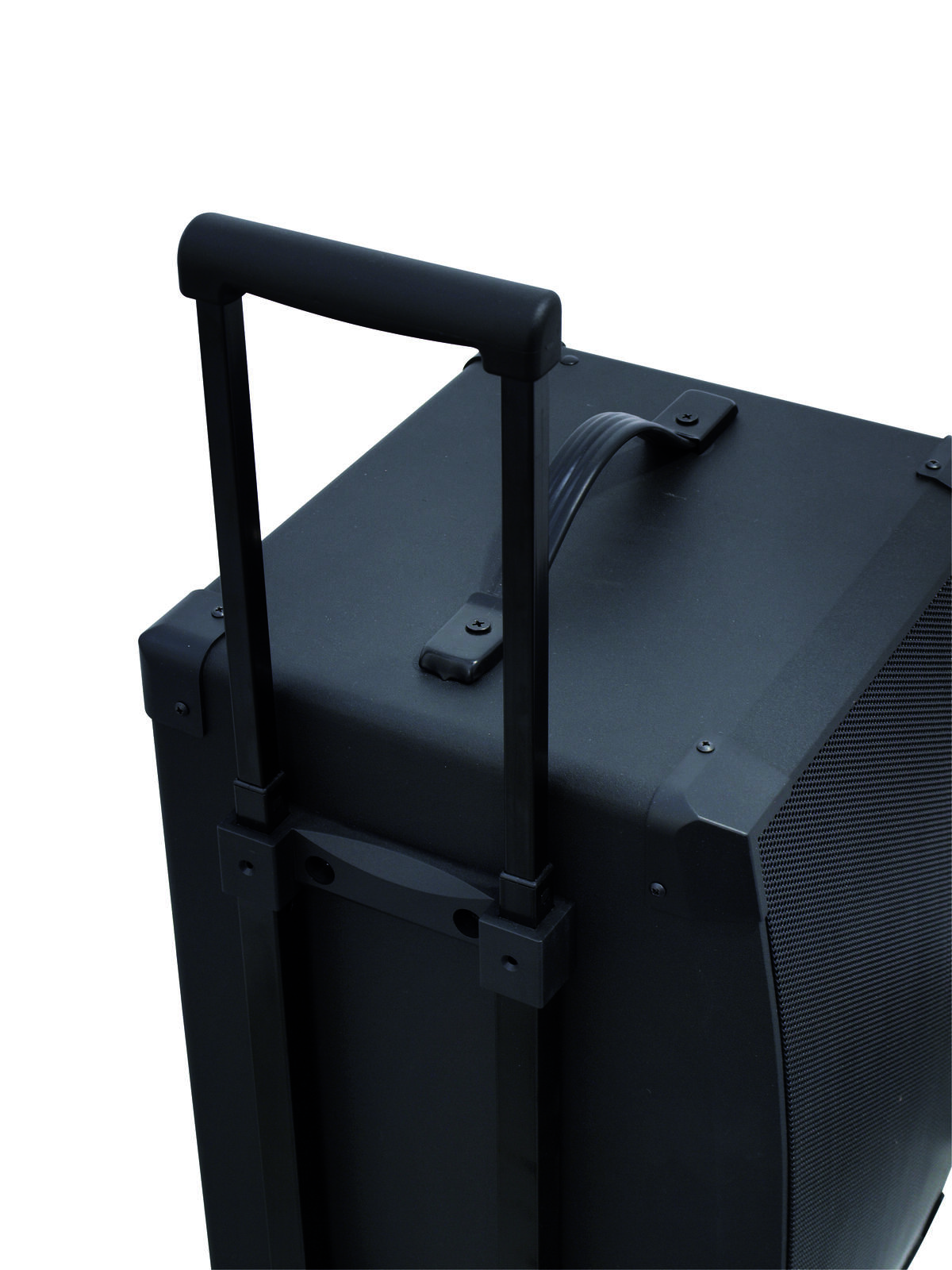

  • Easy transportation via telescopic trolley-handle, 2 wheels and transport handle
  • CD player:
  • Pitch function
  • MP3 support
  • Comfortable track selection via skip buttons
  • Auto cue function: the player automatically jumps to where the music starts
  • Up to 20 tracks can be programmed
  • Random playback (shuffle)
  • Repeat 1 or Repeat All function
  • Cassette deck:
  • Automatic stop at tape end
  • Recording level depends on control settings
  • Speaker system:
  • Balanced frequency range
  • With bass-reflex system
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille
  • With flange for speaker stand installation etc.
  • Wireless mic & receiver:
  • Stationary receiver with built-in telescope antenna
  • Operation with fixed frequency (VHF 202.950 MHz)
  • LED indicator for signal input
  • Adjustable mic sensitivity
  • Set includes wireless microphone
  • License required in Germany
Technical specifications
General:
Power supply:230 V AC, 50 Hz
18 V DC via rechargeable battery
or optional power-unit
Battery type:3 x 6 V/7 Ah removable
Operating time:
Battery operation:2-4 hours
Recharging time:7-10 hours
Dimensions (H x W x D):575 x 350 x 300 mm
Weight:19 kg

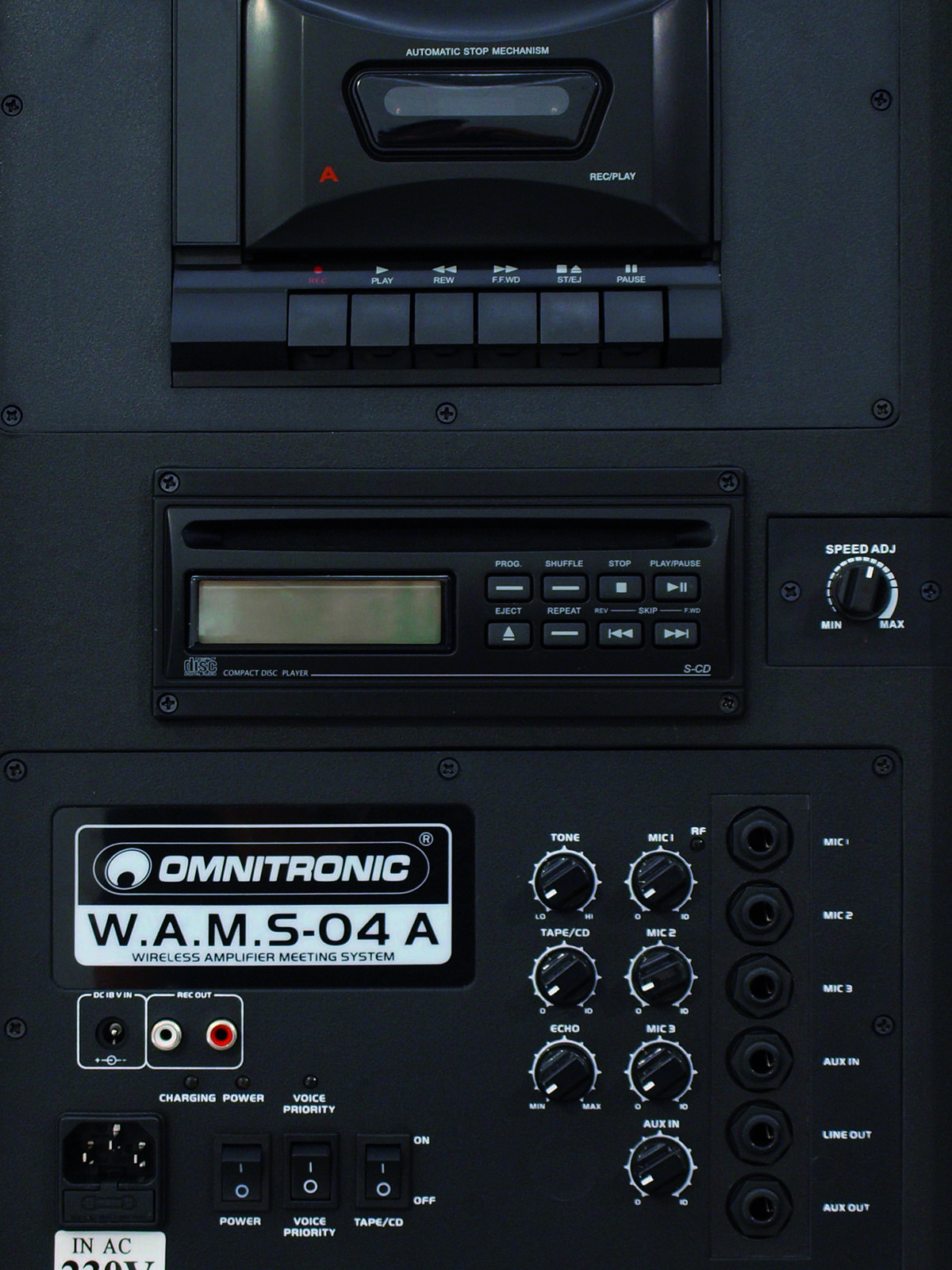

Control unit:
Inputs:
3 MicBalanced or unbalanced 6.3 mm jacks
1 AuxBalanced or unbalanced 6.3 mm jack
Outputs:
Line OutBalanced or unbalanced 6.3 mm jack
Aux OutBalanced or unbalanced 6.3 mm jack
Rec OutRCA
CD-player:
Type:Single Compact Disc Player
Available disc:Standard CDs 12 cm
Quantisation:D/A-converter: 1 Bit
Sampler frequency:44.1 kHz
Program memory:Up to 20 songs
Distortion:<0.1 %
S/N-ratio:>80 dB
Channel seperation:>60 dB
Frequency range:20-20000 Hz, ±1 dB
Cassette deck:
Motor:1 x DC servo motor
Wow & Flutter:0.25 %
Fast Forward Time:approx. 120 seconds (C60 tape)
S/N-ratio:>50 dB
Tape speed:4.8 cm/sec.
Recording Bias:approx. 92 kHz
Speaker-system:
Rated power:2 x 30 W RMS
Program power:100 W
Components:2 x 20 cm woofer (2 x 8")
Sensitivity:90 dB
Maximum SPL:95 dB
Impedance:4 ohms
Frequency range:80-13000 Hz
Amplifier:
Nominal power output:60 W RMS / 4 ohms
Maximum power output:100 W / 4 ohms
Min. input sensitivity:0.775 V
Distortion:0.5 %
Wireless receiver:
System:Non-diversity, one channel
Carrier frequency:VHF 202.950 MHz
Frequency stability:±0.005 %
S/N-ratio:>60 dB
Input sensitivity:10 dB
Dynamic range:>100 dB
Modulation method:FM
Coverage:approx. 50 m (with line-of-sight)
Frequency range:50-18000 Hz (±3 dB)
Wireless microphone:
Sensitivity:-100 dB to -6 dB
Power supply:1 standard 9 V battery
Current consumption:approx. 40 mA
Battery life:6-8 hours
Dimensions:60 x 225 mm
Weight:250 g
Power consumption:110.00 W
Packaging units
PU EAN Weight Dimensions
1 4026397303704 21,35 kg 47cm x 47cm x 74cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00043641.pdf 1.10 de/en
Service document
Name Version Language
00052156.pdf 0.00 de
All images
Name Version Language
13106981.zip
