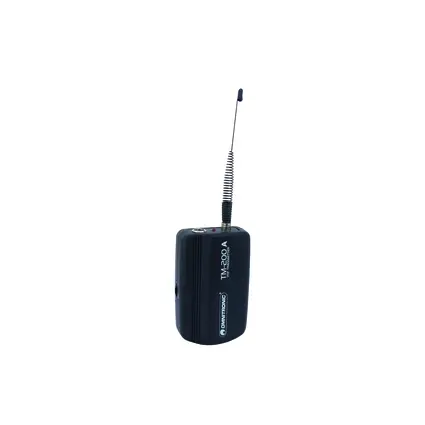

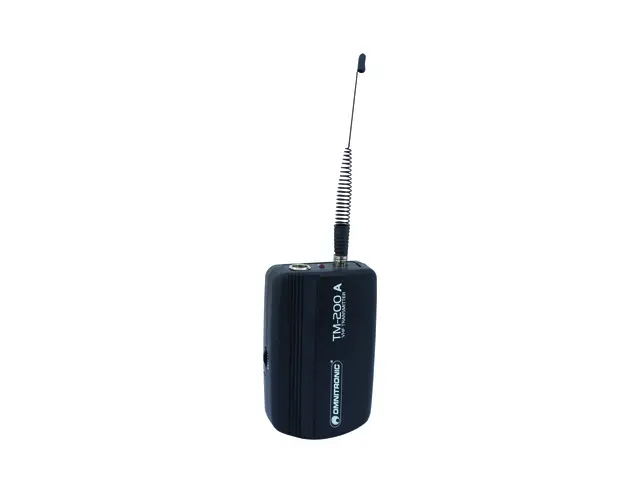

Transmitter set for W.A.M.S.-04
OMNITRONIC TM-200A Transmitter set WAMS-04

OMNITRONIC

Transmitter set for W.A.M.S.-04

OMNITRONIC TM-200A Transmitter set WAMS-04

Item no. 13075002

Features
  • Set includes transmitter, headset and lavalier microphone
  • Transmitter suitable for W.A.M.S.-04 system
  • Operation with fixed VHF frequency 202.950 MHz
  • On/Off operation selector
  • LED indicator for battery capacity
  • Adjustable sensitivity
  • Transmitting power 8.5 mW
  • Connection via mini XLR socket
  • Power supply via 2 x 1.5 V mignon batteries (type AA) (not included)
  • Licence required in Germany
Technical specifications
Modulation:FM
Carrier frequency:VHF 202.950 MHz
RF power output:10 mW
Coverage:25 m (with line-of-sight)
Frequency stability:±0.005 %
Power supply:2 x 1.5 V mignon batteries (type AA)
Power consumption: 20 mA
Battery life:approx. 4 hours
Audio input: mini XLR socket
Dimensions (L x W x H):98 x 68 x 23 mm
Frequency band:VHF
Weight:0.12 kg
Frequency range:80 - 8000 Hz
Height:2,3 cm
Depths:6,8 cm
Width:9,8 cm
Packaging units
PU EAN Weight Dimensions
1 4026397307061 0,37 kg 22cm x 17cm x 9cm
16 4026397372823
24 4026397307344 10,00 kg 59cm x 43cm x 33cm
