2-channel UHF PLL microphone system
OMNITRONIC UHF-102 Wireless Mic System 830.3/863.8MHz

Name: OMNITRONIC UHF-102 Wireless Mic System 830.3/863.8MHz
Brand: OMNITRONIC

Stock for approx. 12 wk(s)

99,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Microphone 5.4 cm

1 U

Features

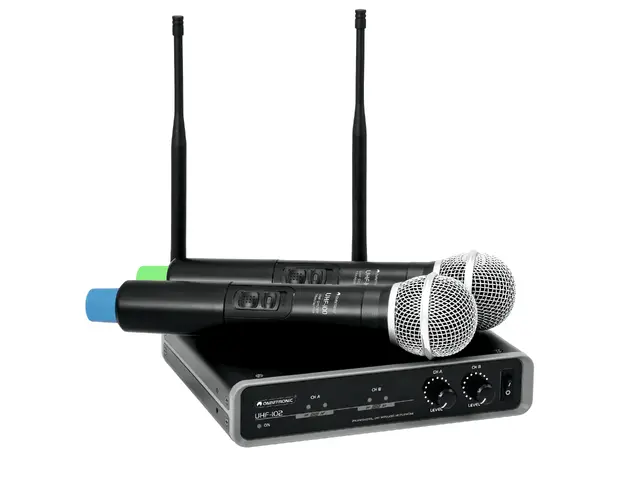

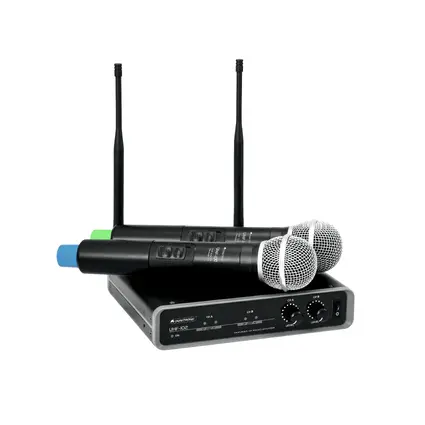

2-channel UHF PLL microphone system

2-channel receiver units and 2 hand-held microphones with UHF PLL technology
Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
Parallel operation of up to 8 transmission channels is possible without any interference
2 separate channels with volume controls and LEDs for carrier signal and audio signal
Balanced XLR output per channel
6.3 mm jack for mixed signal output
Jack cable included
Microphones with color indication
Matching pocket transmitters can be ordered separately
483 mm rack installation possible with optional mounting brackets
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Housing design: (19") 48.3 cm rack installation possible 1 U

Microphone

Technical specifications

Type:	Wireless set
Frequency range:	40 - 18000 Hz
Number of channels:	2
Range:	60 m with line of sight
Carrier frequency:	830,300 MHz; 863,800 MHz
Housing design:	(19") 48.3 cm rack installation possible 1 U
Weight:	1,40 kg
Receiver
Power supply:	110-240 V AC, 50/60 Hz 12 V DC 500 mA
Power consumption:	5 W
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Material:	Metal
Width:	20,5 cm
Height:	4,6 cm
Depth:	22,5 cm
Microphone
Power supply:	3 V DC
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Material:	Plastic
Length:	26 cm
Diameter:	5,4 cm
Weight:	0,23 kg
System:	Non-diversity, 2 channels
Carrier frequency:	830.300 MHz, 863.800 MHz
RF power output:	5 mW
Modulation method:	F3F
S/N ratio:	>105 dB
Selectivity:	>85 dB
T.H.D.:	<0.5 % at 1 kHz
Audio outputs:	400 mV, 2.2 kohms (XLR, bal.)
	200 mV, 2.2 kohms (6.3 mm jack, unbal.)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397603774	1,70 kg	34cm x 34cm x 7,5cm
10	4026397613742	18,20 kg	72cm x 37cm x 41cm
