Wireless microphone system with UHF PLL technology
OMNITRONIC UHF-101 Wireless Mic System 825.3MHz

Name: OMNITRONIC UHF-101 Wireless Mic System 825.3MHz
Brand: OMNITRONIC

Microphone 5,4 cm

1 U

Stock for approx. 12 wk(s)

59,90 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

Wireless microphone system with UHF PLL technology

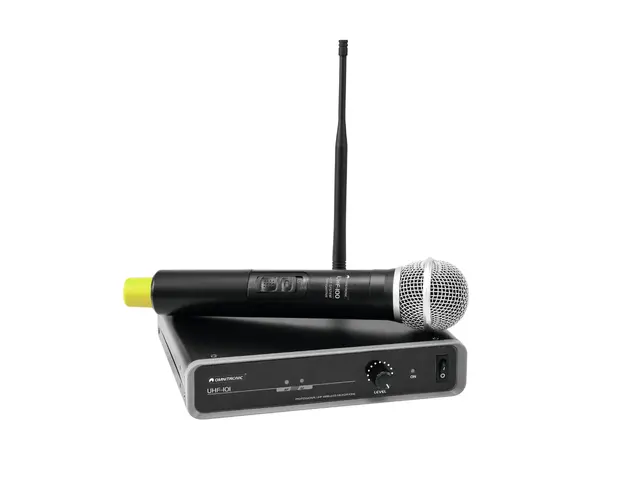

Receiver unit and hand-held microphone with UHF PLL technology
Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
Parallel operation of up to 8 transmission channels is possible without any interference
Volume control
XLR and 6.3 mm output
Jack cable included
LEDs for power, carrier and audio signal
Microphone with color indication
Matching pocket transmitter can be ordered separately
483 mm rack installation possible with optional mounting brackets
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Housing design: (19") 48.3 cm rack installation possible 1 U

Microphone

Technical specifications

Type:	Wireless set
Frequency range:	40 - 18000 Hz
S/N ratio:	>105 dB
Number of channels:	1
Range:	60 m with line of sight
Carrier frequency:	825,300 MHz
Housing design:	(19") 48.3 cm rack installation possible 1 U
Weight:	1,10 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 350 mA
Power consumption:	5 W
Power connection:	Mains input Coaxial power connector (M) via Power supply cord with AC adapter (provided)
Material:	Metal
Width:	20,5 cm
Height:	4,6 cm
Depth:	22,5 cm
Microphone
Power supply:	3 V DC
Power connection:	Battery/battery pack
Polar pattern:	Cardioid
Battery:	2 xMignon (AA) (not included)
Capsule type:	Dynamic
Material:	Plastic
Length:	26 cm
Diameter:	5,4 cm
Weight:	0,23 kg
System:	Non-diversity
Carrier frequency:	825.300 MHz
RF power output:	5 mW
Modulation method:	F3F
Selectivity:	>85 dB
T.H.D.:	<0.5 % at 1 kHz
Audio outputs:	400 mV, 2.2 kohms (XLR, bal.)
	200 mV, 2.2 kohms (6.3 mm jack, unbal.)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397603712	1,40 kg	34cm x 34cm x 7cm
10	4026397613681	15,01 kg	72cm x 36cm x 42cm
