Wireless microphone system with UHF PLL technology

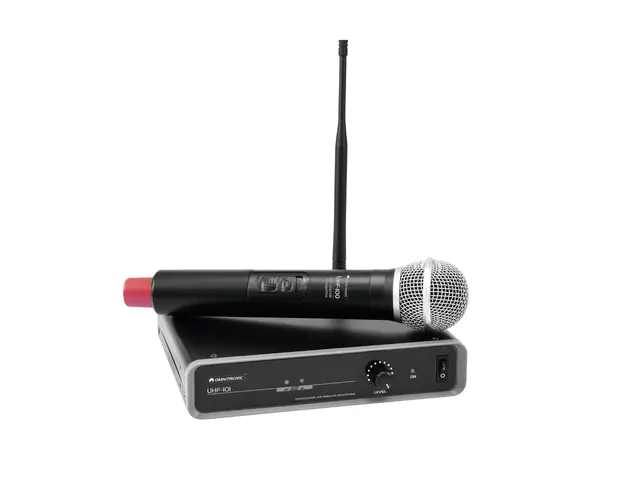

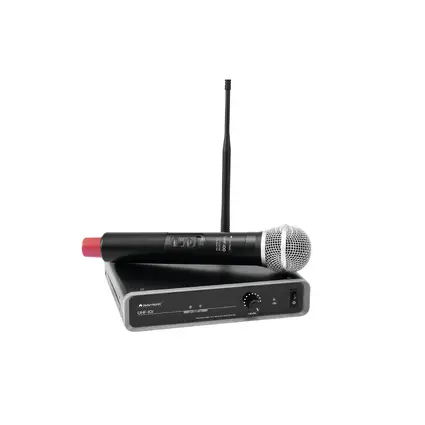

OMNITRONIC UHF-101 Wireless Mic System 828.1MHz

OMNITRONIC

Wireless microphone system with UHF PLL technology

OMNITRONIC UHF-101 Wireless Mic System 828.1MHz

Stock for approx. 12 wk(s)
59,90
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 13063265

Features
  • Receiver unit and hand-held microphone with UHF PLL technology
  • Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
  • Parallel operation of up to 8 transmission channels is possible without any interference
  • Volume control
  • XLR and 6.3 mm output
  • Jack cable included
  • LEDs for power, carrier and audio signal
  • Microphone with color indication
  • Matching pocket transmitter can be ordered separately
  • 483 mm rack installation possible with optional mounting brackets
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Mute function: On/off/mute switch Microphone
  • Polar pattern: Unidirectional
  • Housing design: (19") 48,3 cm rack installation possible
  • Power supply of device: Mains Input Socket (M) provided fehlt
Technical specifications
System:Non-diversity
Carrier frequency:828.100 MHz
Coverage:60 m (with line-of-sight)
RF power output:5 mW
Modulation method:F3F
S/N ratio:>105 dB
Selectivity:>85 dB
T.H.D.:<0.5 % at 1 kHz
Audio outputs:400 mV, 2.2 kohms (XLR, bal.)
200 mV, 2.2 kohms (6.3 mm jack, unbal.)
Power supply
Receiver:100-240 V AC, 50/60 Hz via supplied power unit
Microphone:2 x 1.5 V battery, type AA
Battery life:approx. 10 hours
Dimensions, weight:
Receiver:225 x 205 x 46 mm (W x D x H), 0.7 kg
Microphone:50 x 260 mm (D x L), 230 g
Frequency band:UHF 823 - 832 MHz
Power consumption:5 W
Polar pattern:Unidirectional
Frequency range:40 - 18000 Hz
Weight:1,1 kg
Height:4,6 cm
Depth:22,5 cm
Width:20,5 cm
Material:Metal
Packaging units
PU EAN Weight Dimensions
1 4026397603705 1,40 kg 34cm x 34cm x 7cm
10 4026397613674 15,05 kg 72cm x 36cm x 42cm
