Wireless microphone system with UHF PLL technology

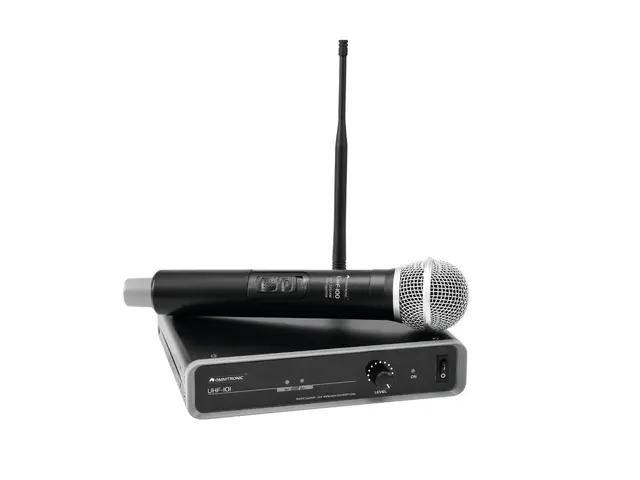

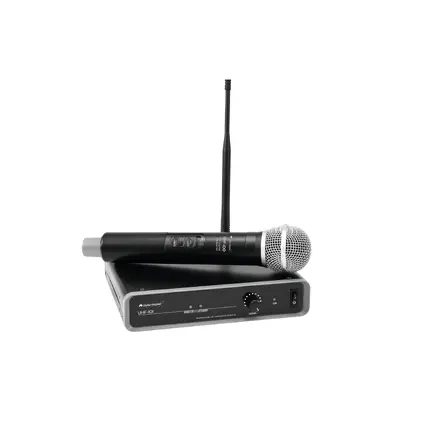

OMNITRONIC UHF-101 Wireless Mic System 864.1MHz

Name: OMNITRONIC UHF-101 Wireless Mic System 864.1MHz
Brand: OMNITRONIC

Stock for approx. 12 wk(s)

59,90 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Microphone 5.4 cm

1 U

Features

Wireless microphone system with UHF PLL technology

Receiver unit and hand-held microphone with UHF PLL technology
Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
Parallel operation of up to 8 transmission channels is possible without any interference
Volume control
XLR and 6.3 mm output
Jack cable included
LEDs for power, carrier and audio signal
Microphone with color indication
Matching pocket transmitter can be ordered separately
483 mm rack installation possible with optional mounting brackets
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Housing design: (19") 48,3 cm rack installation possible 1 U

Microphone

Technical specifications

Frequency range:	40 - 18000 Hz
Number of channels:	1
Range:	60 m with line of sight
Carrier frequency:	864,100 MHz
Type:	Wireless set
Housing design:	(19") 48,3 cm rack installation possible 1 U
Weight:	1,10 kg
Receiver
Power supply:	110-240 V AC, 50/60 Hz 12 V DC 350 mA
Power consumption:	5 W
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Material:	Metal
Width:	20,5 cm
Height:	4,6 cm
Depth:	22,5 cm
Microphone
Power supply:	3 V DC
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Power connection:	Battery/battery pack
Microphone-Type:	Dynamic
Material:	Plastic
Length:	26 cm
Diameter:	5,4 cm
Weight:	0,23 kg
System:	Non-diversity
Carrier frequency:	864.100 MHz
RF power output:	5 mW
Modulation method:	F3F
S/N ratio:	>105 dB
Selectivity:	>85 dB
T.H.D.:	<0.5 % at 1 kHz
Audio outputs:	400 mV, 2.2 kohms (XLR, bal.)
	200 mV, 2.2 kohms (6.3 mm jack, unbal.)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397603675	1,40 kg	34cm x 34cm x 7cm
10	4026397613643	15,05 kg	72cm x 36cm x 42cm
