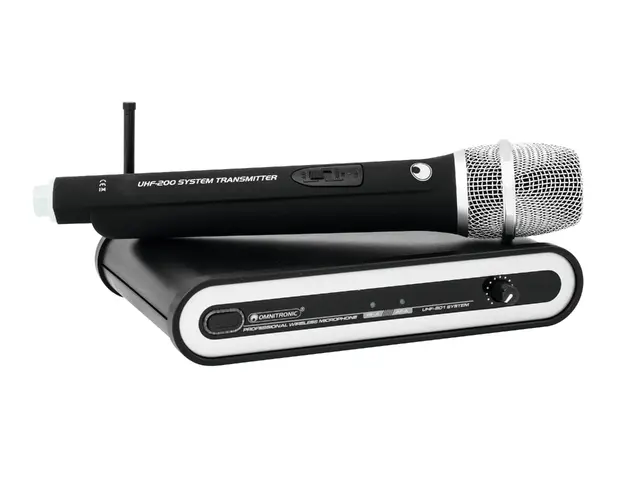

Wireless microphone system with UHF PLL technology
Microphone
| Type: | Wireless set |
| Frequency band: | UHF 823 - 832 MHz |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >105 dB |
| Number of channels: | 1 |
| Range: | 60 m |
| Carrier frequency: | 830,900 MHz |
| Housing design: | (19") 48.3 cm rack installation possible |
| Weight: | 0,72 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 500 mA |
| Power consumption: | 1,75 W |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Width: | 21 cm |
| Height: | 4,5 cm |
| Depth: | 15,5 cm |
| Microphone | |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Capsule type: | Dynamic |
| Material: | Plastic |
| Length: | 26,5 cm |
| Diameter: | 5 cm |
| Weight: | 0,185 kg |
| RF power output: | 10 mW |
| Modulation method: | F3E |
| Selectivity: | >80 dB |
| T.H.D.: | <0.5 % at 1 kHz |
| Audio outputs: | 400 mV, 2.2 kohms (XLR, bal.) |
| 200 mV, 2.2 kohms (6.3 mm jack, unbal.) | |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397533583 | 1,10 kg | 40cm x 34cm x 7cm |
| 10 | 4026397533590 | 12,20 kg | 71cm x 43cm x 40cm |
