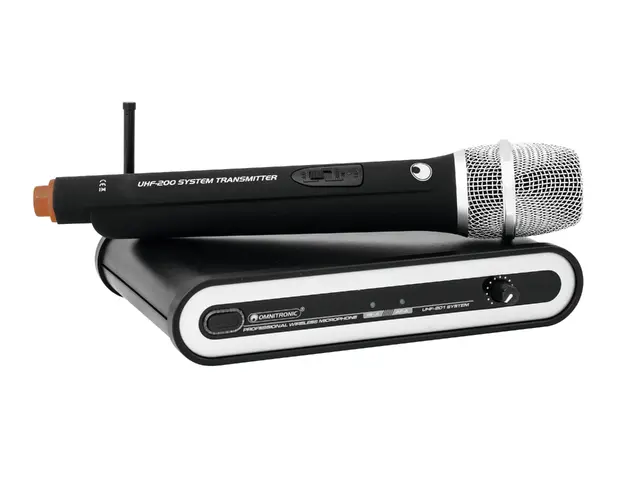

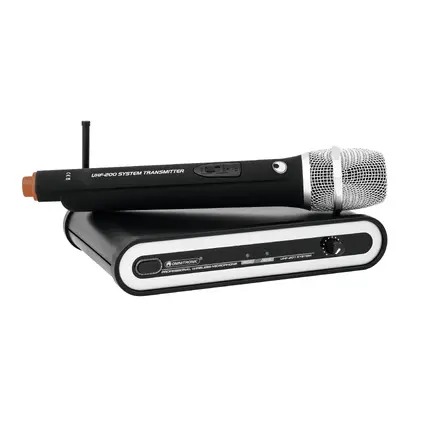

Wireless microphone system with UHF PLL technology
OMNITRONIC UHF-201 Wireless Mic System 824.925MHz

svg
Microphone 5 cm
svg
svg
OMNITRONIC

Wireless microphone system with UHF PLL technology

OMNITRONIC UHF-201 Wireless Mic System 824.925MHz

Stock for approx. 12 wk(s)
89,00 €
59,90
-33% STOCK CLEARING
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 13063231

Features

Wireless microphone system with UHF PLL technology

  • Receiver unit and hand-held microphone with UHF PLL technology
  • Operation in the low-interference UHF band
  • Parallel operation of up to 4 sets is possible without any interference
  • Volume control
  • XLR and 6.3 mm output
  • Jack cable included
  • LEDs for power, carrier and audio signal
  • Microphone with mute switch and color indication
  • Matching pocket transmitter can be ordered separately
  • Operation in the Duplex Gap 823-832 MHz
  • License-free in Germany and 13 other countries
  • Housing design: (19") 48.3 cm rack installation possible

Microphone

  • Polar pattern: Cardioid
  • Battery: 2 x Mignon (AA) (not included)
  • Mute function: On/off/mute switch
Technical specifications
Type:Wireless set
Frequency band:UHF 823 - 832 MHz
Frequency range:40 - 18000 Hz
Number of channels:1
Range:60 m
Carrier frequency:824,925 MHz
Housing design:(19") 48.3 cm rack installation possible
Weight:0,72 kg
Receiver
Power supply:100-240 V AC, 50/60 Hz
12 V DC 500 mA
Power consumption:1,75 W
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Width:21 cm
Height:4,5 cm
Depth:15,5 cm
Microphone
Power supply:3 V DC
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Power connection:Battery/battery pack
Capsule type:Dynamic
Material:Plastic
Length:26,5 cm
Diameter:5 cm
Weight:0,185 kg
RF power output:10 mW
Modulation method:F3E
S/N ratio:>105 dB
Selectivity:>80 dB
T.H.D.:<0.5 % at 1 kHz
Audio outputs:400 mV, 2.2 kohms (XLR, bal.)
200 mV, 2.2 kohms (6.3 mm jack, unbal.)
Packaging units
PU EAN Weight Dimensions
1 4026397533545 1,10 kg 40cm x 34cm x 7cm
10 4026397533552 12,20 kg 71cm x 43cm x 40cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13063231-Manual-89101-1.000-de_en.pdf (2 MB) 1.000 de_en
Catalog pages
All images
Name Version Language
13063231-Images.zip
