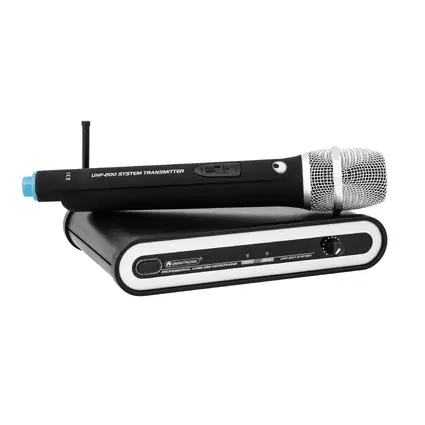

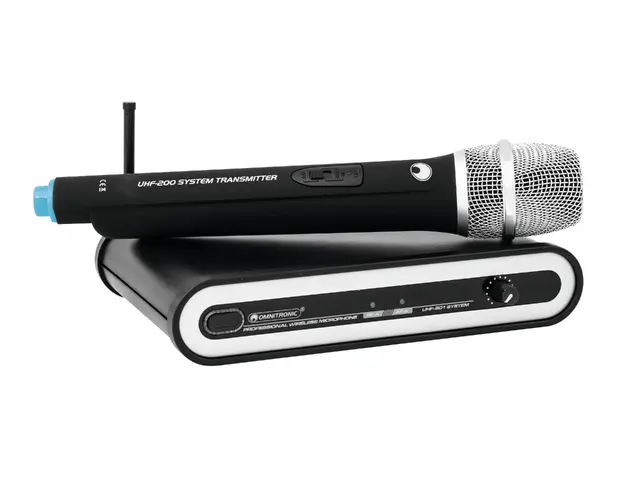

Wireless microphone system with UHF PLL technology
OMNITRONIC UHF-201 Wireless Mic System 823.100MHz

svg
svg
OMNITRONIC

Wireless microphone system with UHF PLL technology

OMNITRONIC UHF-201 Wireless Mic System 823.100MHz

Item no. 13063230

Features

Wireless microphone system with UHF PLL technology

  • Receiver unit and hand-held microphone with UHF PLL technology
  • Operation in the Duplex Gap 823-832 MHz
  • Parallel operation of up to 4 sets is possible without any interference
  • Volume control
  • XLR and 6.3 mm output
  • Jack cable included
  • LEDs for power, carrier and audio signal
  • Microphone with mute switch and color indication
  • Matching pocket transmitter can be ordered separately
  • License-free in Germany and 13 other EU countries
  • Polar pattern: Cardioid
  • Housing design: (19") 48.3 cm rack installation possible

Microphone

  • Battery: 2 x Mignon (AA) (not included)
  • Mute function: Yes
Technical specifications
Type:Wireless set
Power consumption:10 W
Polar pattern:Cardioid
Frequency band:UHF 823 - 832 MHz
Frequency range:40 - 18000 Hz
Capsule type:Dynamic
Housing design:(19") 48.3 cm rack installation possible
Width:21 cm
Height:4,5 cm
Depth:15,5 cm
Weight:0,72 kg
Microphone
Battery:2 x Mignon (AA) (not included)
System:Non-Diversity
Carrier frequency:823.100 MHz
Coverage:50 m (with line-of-sight)
RF power output:10 mW
Modulation method:F3E
S/N ratio:>105 dB
Selectivity:>80 dB
T.H.D.:<0.5 % at 1 kHz
Audio outputs:400 mV, 2.2 kohms (XLR, bal.)
200 mV, 2.2 kohms (6.3 mm jack, unbal.)
Power supply:
Receiver:100-240 V AC, 50/60 Hz via supplied power unit
Dimensions, weight:
Receiver:155 x 210 x 45 mm (W x D x H), 1 kg
Microphone:50 x 265 mm (D x L), 280 g
Packaging units
PU EAN Weight Dimensions
1 4026397533521 1,10 kg 40cm x 34cm x 7cm
10 4026397533538 12,20 kg 71cm x 43cm x 40cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13063230-Manual-89101-1.000-de_en.pdf (2 MB) 1.000 de_en
Catalog pages
All images
Name Version Language
13063230-Images.zip
