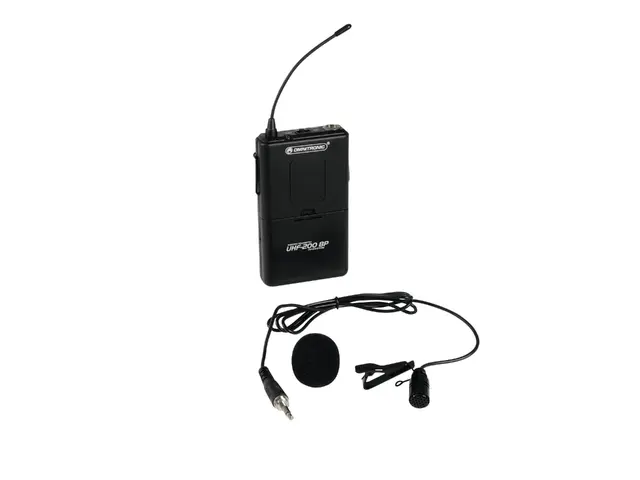

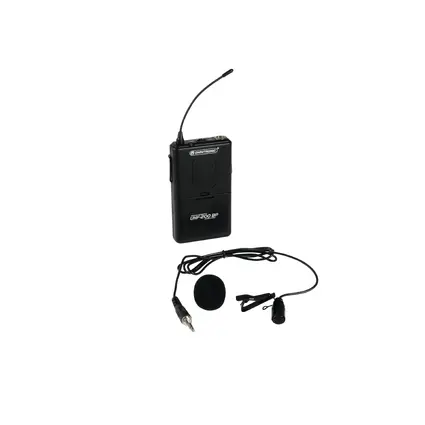

Pocket transmitter with lavalier microphone
OMNITRONIC UHF-200 BP Bodypack 864.990MHz

OMNITRONIC

Pocket transmitter with lavalier microphone

OMNITRONIC UHF-200 BP Bodypack 864.990MHz

Item no. 13063220

Features

Pocket transmitter with lavalier microphone

  • Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
  • Operation in the low-interference UHF band
  • Incl. lavalier microphone
  • Transmitting power 10 mW
  • Sensitivity adjustable
  • Power LED
  • Mute switch
  • Operation via 2 x 1.5 V batteries, type AA
  • License-free and approved in the EU
Technical specifications
Type:Bodypack with microphone
Battery:2 x Mignon (AA) (provided)
Frequency range:40 - 18000 Hz
Width:65 cm
Height:2.5 cm
Depth:20 cm
Carrier frequency:864.990 MHz
Coverage:50 m (with line-of-sight)
RF power output:10 mW
Modulation method:F3F
S/N ratio:>105 dB
Selectivity:>80 dB
T.H.D.:<0.5 % at 1 kHz
Connection:3.5 mm jack
Weight:75 g
Packaging units
PU EAN Weight Dimensions
1 4026397478693 0,17 kg 18cm x 13cm x 3,5cm
50 4026397594256 9,10 kg 42cm x 38cm x 35cm
100 4026397483222 14,80 kg 68cm x 38cm x 39cm
