Complete 4-channel UHF PLL microphone system
OMNITRONIC UHF-204 Wireless Mic System 863-865MHz

svg
OMNITRONIC

Complete 4-channel UHF PLL microphone system

OMNITRONIC UHF-204 Wireless Mic System 863-865MHz

Features

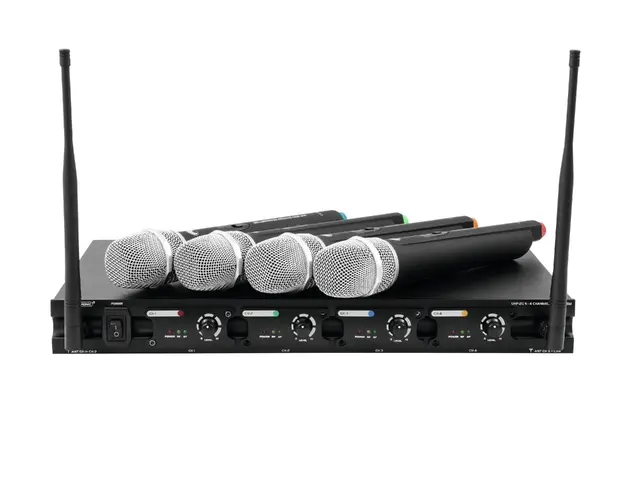

Complete 4-channel UHF PLL microphone system

  • 4-channel receiver unit and 4 hand-held microphones with UHF PLL technology
  • Operation in the low-interference UHF band (863-865 MHz) with 4 fixed frequencies
  • 4 separate channels with volume controls and LEDs for power supply, carrier signal and audio signal
  • Balanced XLR output per channel
  • 6.3 mm jack for mixed signal output
  • Jack cable included
  • Microphones with mute switch and color caps for distinction on stage
  • Matching pocket transmitters can be ordered separately
  • Removable antennas (TNC connection)
  • Receiver unit in a rugged metal housing
  • Incl. mounting brackets for 483 mm rack installation
  • License-free and approved in the EU
  • Polar pattern: Cardioid
  • UHF 863 - 865 MHz License-free and approved in Europe
  • Desktop console housing
  • (19") 48.3 cm rack installation possible

Package contents

  • 1 x microphone
Technical specifications
Type:Wireless set
Power consumption:10,00 W
Capsule type:Dynamic
Polar pattern:Cardioid
Frequency range:40 - 18000 Hz
Frequency band:UHF 863 - 865 MHz
Frequency selection:Fixed frequencies
Switch:Mute control; on/off switch
Housing design:Desktop console housing
(19") 48.3 cm rack installation possible
Dimensions:Width: 42 cm
Depth: 5 cm
Height: 22 cm
Microphone
Battery:8 x Mignon (AA) (not included)
System:Diversity, 4 channels
Carrier frequency:863.010 MHz, 863.420 MHz,
864.300 MHz, 864.990 MHz
Coverage:50 m (with line-of-sight)
RF power output:10 mW
Modulation method:F3F
S/N ratio:>105 dB
Selectivity:>80 dB
T.H.D.:<0.5 % at 1 kHz
Audio outputs:
Mic:4 x XLR, bal.
Level/impedance:400 mV, 2.2 kohms
Mic:6.3 mm jack, unbal.
Level/impedance:200 mV, 2.2 kohms
Power supply
Receiver:100-240 V AC, 50/60 Hz via supplied power unit
Dimensions, weight
Receiver:420 x 220 x 50 mm (L x W x H), 3 kg
Microphones:50 x 265 mm (D x L), 280 g
Packaging units
PUEANWeightDimensions
140263974784264,65 kg53cm x 29,5cm x 12cm
3402639751386814,80 kg55cm x 32cm x 40cm
4402639748178520,30 kg55cm x 31cm x 50cm
