Multifrequency wireless receiver

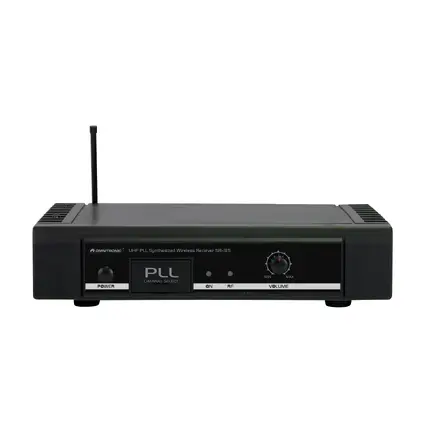

OMNITRONIC SR-315 Wireless receiver

OMNITRONIC

Multifrequency wireless receiver

OMNITRONIC SR-315 Wireless receiver

Item no. 13061500

Features
  • 16 UHF frequencies (800.100 - 813.000 MHz) selectable via DIP switches
  • Telescope antenna
  • LED display for power supply and signal input
  • Squelch control to eliminate noise bursts
  • Output level control
  • 6.3 mm and XLR output
  • Operation via supplied power unit
  • A wireless microphone or a belt transmitter with lavalier microphone or headset microphone can be ordered separately
  • License-free and approved in Germany
Technical specifications
System:Non-diversity, one channel
Carrier frequency:UHF 800.100-813.000 MHz (16 ch.)
800.875, 801.375, 802.375, 803.125, 803.875, 804.500, 805.125, 805.875, 806.625, 807.375, 807.875, 808.375, 809.125, 810.250, 810.875, 811.875 MHz
Frequency stability:±0.005 %
T.H.D.:<1 % at 1 kHz
Tone signal:32.768 kHz
S/N-ratio:>94 dB at 48 kHz deviation
Input sensitivity:8 dB
Selectivity:>50 dB
Dynamic range:>96 dB
Modulation method:FM-frequency modulation
Coverage:>30 m (with line-of-sight)
Frequency range:50-15000 Hz (±3 dB)
Audio output:Mono 6.3 mm jack socket or balanced XLR
Power supply:12 V DC
Dimensions (LxlxH):210 x 165 x 44 mm
Weight:0.5 kg
Frequency band:UHF
Power consumption:130.00 W
Height:4,4 cm
Depths:16,5 cm
Width:21 cm
Packaging units
PU EAN Weight Dimensions
1 4026397114027 1,40 kg 35cm x 31cm x 7cm
5 4026397313536 8,00 kg 38cm x 38cm x 33,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00043620.pdf 1.30 de/en/fr/es
Rack Installation DR-SR
00051524.pdf
0.00 en
Service document
Name Version Language
00002123.pdf 0.00 de/en/fr/es
All images
Name Version Language
13061500.zip
