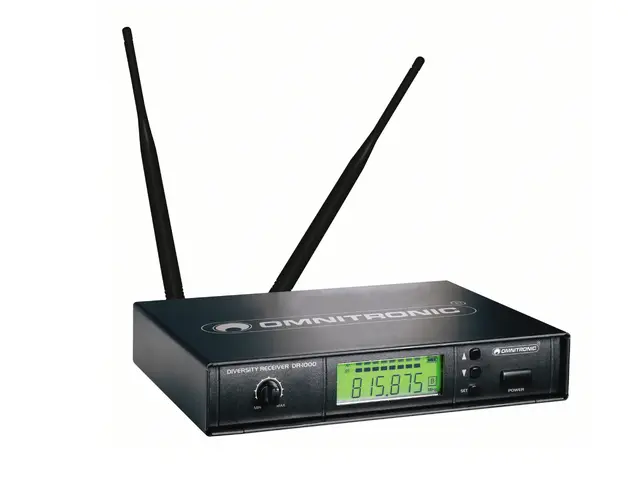

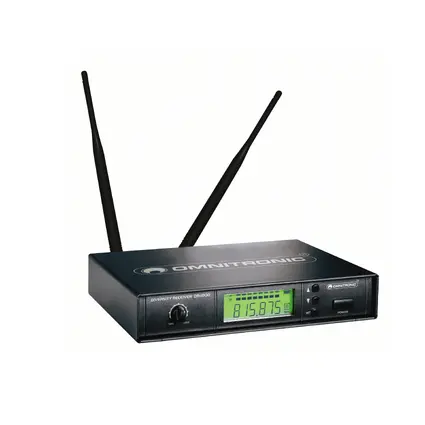

Multifrequency wireless receiver, True Diversity-MainBild

Multifrequency wireless receiver, True Diversity

OMNITRONIC DR-1000 Wireless receiver

The article is no longer in our assortment.

Check out the alternatives:

-58%

OMNITRONIC DR-1000 MK2 Wireless Receiver

alternative is the successor

Stock for approx. 4 wk(s)

No. 13061090

Here you find the manual and downloads for
OMNITRONIC DR-1000 Wireless receiver

A variety of options with multi-frequency wireless systems
With the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

Features

Multifrequency wireless receiver, True Diversity

True diversity system with two removable antennas (BNC connection)
Operation in the low-interference UHF band (790.000-814.000 MHz)
193 carrier frequencies switchable in 125 kHz steps
Operation range 100 meters
System expandable to up to 16 receivers with 16 microphones
LCD for battery status of the transmitter, antenna A/B, RF transmitting level, AF audio level and frequency
Automatic frequency scan
Output level control
Lock function avoids undesired changes by users
Mute mode when signal is absent or too weak
6.3 mm and XLR output
Operation via supplied power unit
Rugged metal housing
Optional mounting frame for rack installation available
Optional hand-held micropone, belt transmitter, lavalier microphone and headset available
License-free in Germany

Technical specifications

Power consumption:	6,00 W
Frequency band:	UHF
Diversity:	True diversity
Dimensions:	Width: 21 cm Depth: 15 cm Height: 4 cm
System:	Switching diversity, one channel
Carrier frequency:	UHF 790.000-814.000 MHz
Channel 61:	790.100-797.900 MHz
Channel 62:	798.100-805.900 MHz
Channel 63:	806.100-813.900 MHz
Frequency stability:	±0,005 %
T.H.D.:	<1 % at 1 kHz
Tone signal:	32.768 kHz
S/N ratio:	100 dB
Input sensitivity:	8 dB
Selectivity:	>60 dB
Dynamic range:	>96 dB
Modulation method:	FM
Coverage:	100 m (with line-of-sight)
AF response:	50-18000 Hz (±3 dB)
Audio output:	Mono 6.3 mm jack socket or balanced XLR
Power supply:	12-18 V DC, 600 mA
Dimensions:	210 x 150 x 40 mm
Weight:	0.55 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397142785	1,90 kg	30cm x 23cm x 9,5cm
5	4026397240337	10,50 kg	49,7cm x 31,2cm x 25,2cm
