Tie-clip microphone for the TM-105

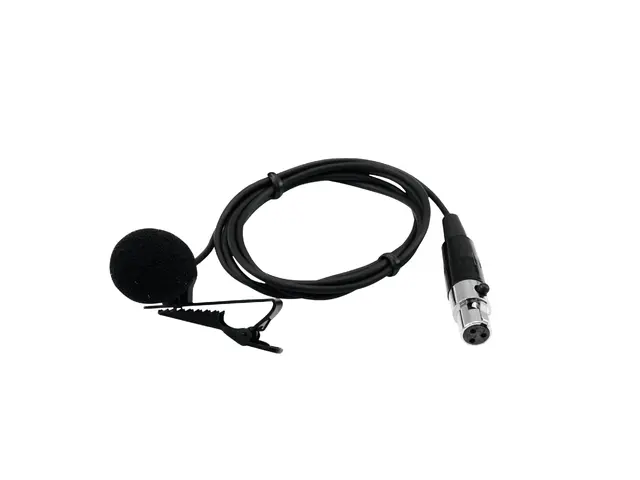

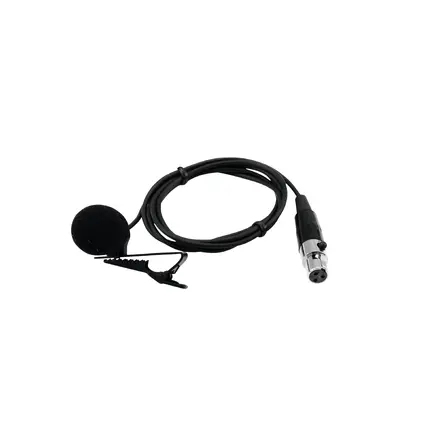

OMNITRONIC LS-105 Lavalier Microphone XLR WAMS-05

OMNITRONIC

Tie-clip microphone for the TM-105

OMNITRONIC LS-105 Lavalier Microphone XLR WAMS-05

Item no. 13056003

Features

Tie-clip microphone for the TM-105

  • Cardioid electret condenser microphone suitable for multifrequency transmitter TM-105
  • For voice pickup for vocal sound- and speech applications
  • Particularly suitable for applications requiring hands-free operation, such as aerobics, acting or percussion
  • For attaching to the user's tie, shirt or collar
  • Connection with the pocket transmitter via mini XLR plug
  • Delivery includes windshield
Technical specifications
Frequency range:80 - 18000 Hz
Type:Back electret condenser
Directivity pattern:Cardioid
Sensitivity:-66 dB (±3 dB)
Impedance:600 ohms (±30 %)
Power supply:1.5-10 V DC
Connection:mini XLR
Cable length:1 m
Weight:20 g
Packaging units
PU EAN Weight Dimensions
1 4026397480399 0,05 kg 13cm x 8cm x 5cm
30 4026397573046 2,50 kg 30cm x 29cm x 38cm
50 4026397480450 3,20 kg 43cm x 39,5cm x 20cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13056003-Manual-87854-1.100-de_en.pdf (39 KB) 1.100 de_en
Catalog pages
All images
Name Version Language
13056003-Images.zip
