Universal multifrequency pocket transmitter

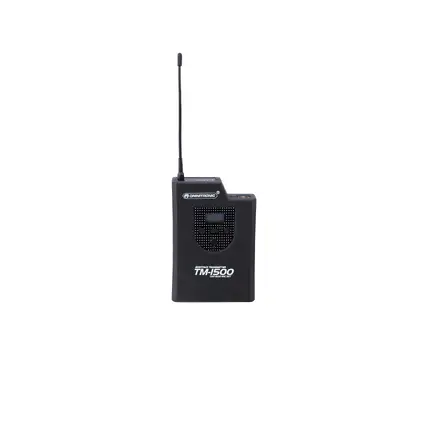

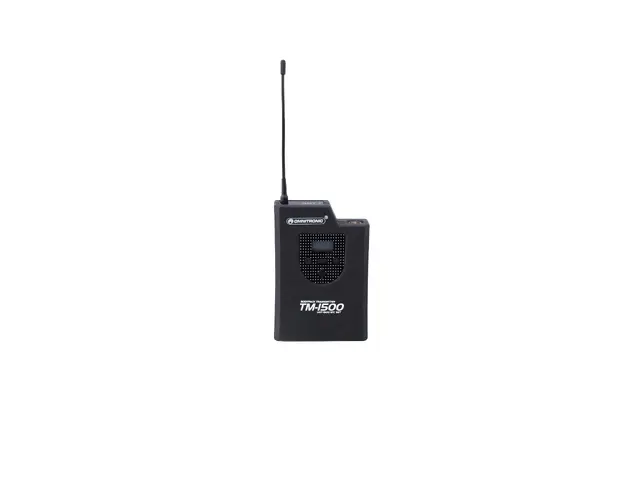

OMNITRONIC TM-1500 Pocket transmitter

OMNITRONIC

Universal multifrequency pocket transmitter

OMNITRONIC TM-1500 Pocket transmitter

Item no. 13055512

Features

Universal multifrequency pocket transmitter

  • Transmitts microphone signals to a receiver with the same carrier frequency
  • Operation in the low-interference UHF band (792,500-814000 MHz)
  • Up to 8 pocket transmitters with 8 receivers can be operated simultaneously
  • Frequency and sensitivity switchable via mini switches
  • Can also be used for direct instrument pickup
  • 500 carrier frequencies switchable in 50 kHz steps
  • Sensitivity can be adjusted continously
  • LCD display with battery capacity and frequency
  • Battery capacity transmission to receiver
  • Lock function for preventing unintented shutoff
  • For 2 x 1.5 V mignon batteries (type AA)
  • Operation range 200 meters
  • Connection via mini XLR socket
  • A lavalier microphone or a headset microphone can be ordered separately
  • License-free and approved in Germany
  • Battery: 2 xMignon (AA) (provided)
Technical specifications
Type:Pocket transmitter
Power connection:Battery/battery pack
Battery:2 xMignon (AA) (provided)
Frequency band:UHF 792 - 814 MHz
Width:7,5 cm
Height:11 cm
Depth:3,5 cm
Weight:0,17 kg
Channel 61:792.500-797.900 MHz
Channel 62:798.100-805.900 MHz
Channel 63:806.100-813.900 MHz
Modulation:FM
Frequency stability:±0,005 %
T.H.D.:<0.5% at 1 kHz
AF response:50-18000 Hz
Maximum deviation:±48000 Hz
RF power output:10 mW
Coverage:200 m (with line-of-sight)
Current consumption:<100 mA @ 3V
Audio input: Mini XLR
Antenna (L):105 mm
Packaging units
PU EAN Weight Dimensions
1 4026397233452 0,42 kg 27cm x 12cm x 7,5cm
25 4026397251654 12,66 kg 62cm x 31cm x 46,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13055512-Manual-43574-1.400-de_en_fr_es.pdf (9 MB) 1.400 de_en_fr_es
All images
Name Version Language
13055512-Images.zip
