Multifrequency pocket transmitter set

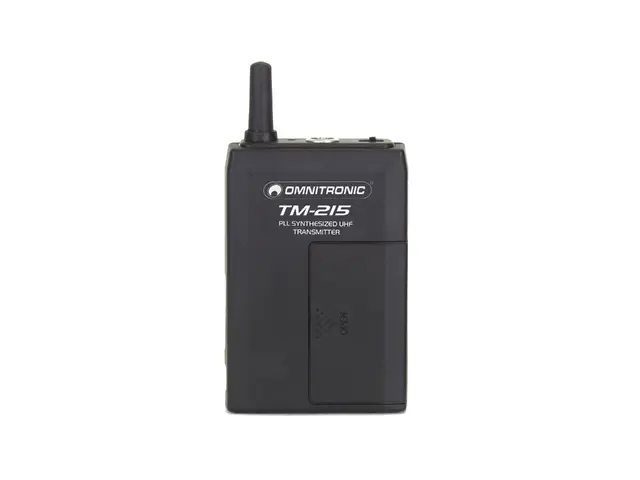

OMNITRONIC TM-215 Pocket transmitter set

OMNITRONIC

Multifrequency pocket transmitter set

OMNITRONIC TM-215 Pocket transmitter set

Item no. 13055502

Features

Multifrequency pocket transmitter set

  • Set includes multifrequency transmitter and lavalier microphone
  • Matches receiver UHF-215 with the same carrier frequency
  • 16 UHF frequencies (842.000-862.600 MHz) via DIP switches selectable
  • On/off/mute operation selector
  • LED indicator for battery capacity
  • Adjustable sensitivity
  • Transmitting power 10 mW
  • Connection via 3.5 mm mini jack
  • Power supply via 2 x 1.5 V mignon batteries (type AA) (not supplied)
  • License-free and approved in Germany
Technical specifications
Frequency band:UHF
Width:13,4 cm
Height:3,3 cm
Depth:6,6 cm
Antenna:Built-in
Carrier frequency:UHF 842.000-862.600 MHz
Modulation:FM
Frequency stability:<±30 ppm
T.H.D.:<1 % at 1 kHz
Tone signal:32.768 kHz
AF response:50-15000 Hz (±3 dB)
Maximum deviation:±48000 Hz
RF power output:10 mW max.
Power supply:2 mignon batteries (type AA)
Current consumption:approx. 65 mA
Battery life:approx. 6 hours
Dimensions (L x W x H):135 x 66 x 33 mm
Weight:100 g
Packaging units
PU EAN Weight Dimensions
1 4026397231236 0,26 kg 18,5cm x 14,2cm x 7cm
40 4026397306217 14,15 kg 57cm x 36cm x 37,8cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13055502-Manual-43572-1.100-de_en_fr_es.pdf (3 MB) 1.100 de_en_fr_es
Data sheet
All images
Name Version Language
13055502-Images.zip
