Multifrequency pocket transmitter

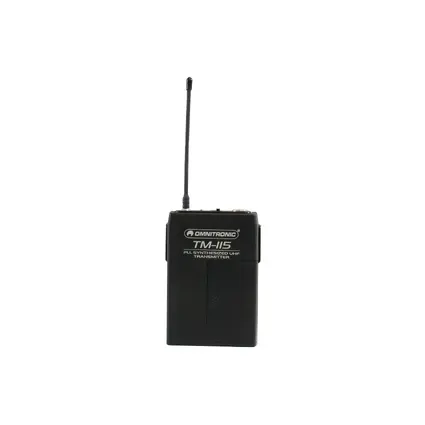

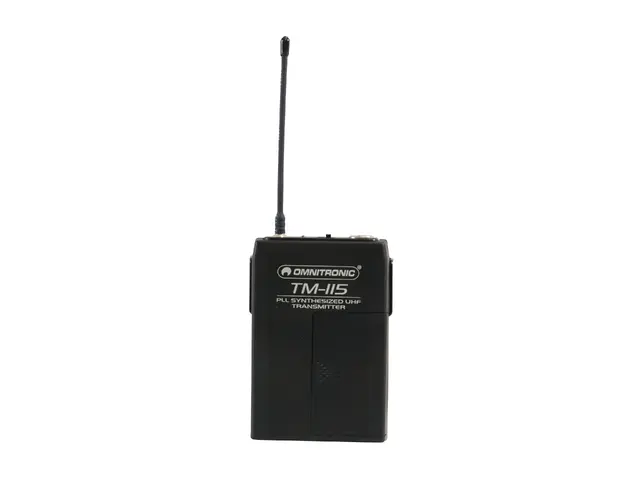

OMNITRONIC TM-115 Pocket transmitter

OMNITRONIC

Multifrequency pocket transmitter

OMNITRONIC TM-115 Pocket transmitter

Item no. 13055500

Features

Multifrequency pocket transmitter

  • Integrated multifrequency transmitter with UHF PLL technology
  • Transmits signals to a receiver with the same carrier frequency
  • Operation in the low-interference UHF-band (800.100-813.000 MHz) with 16 frequencies selectable
  • Line/mic selector for use as in-ear system or for instrument pickup
  • On/off/mute operation selector
  • LED indicator for battery capacity
  • Adjustable microphone sensitivity
  • Connection via mini XLR socket
  • Power supply via 2 x 1.5 V mignon batteries (type AA) (not supplied)
  • A lavalier microphone or a headset microphone can be ordered separately
  • License-free and approved in Germany
Technical specifications
Width:6,4 cm
Height:9,7 cm
Depth:2,4 cm
Antenna:Detachable
Carrier frequency:UHF 800.100-813.000 MHz (16 ch.)
800.875, 801.375, 802.375, 803.125, 803.875, 804.500, 805.125, 805.875, 806.625, 807.375, 807.875, 808.375, 809.125, 810.250, 810.875, 811.875 MHz
Modulation:FM
Frequency stability:±0,005 %
T.H.D.:<1 % at 1 kHz
Tone signal:32.768 kHz
AF response:50-15000 Hz (±3 dB)
Maximum deviation:±48000 Hz
RF power output:10 mW max.
Power supply:2 mignon batteries (type AA)
Current consumption:approx. 65 mA, ±5 mA
Battery life:approx. 12 hours
Dimensions (L x W x H):97 x 64 x 24 mm
Weight:140 g
Packaging units
PU EAN Weight Dimensions
1 4026397121629 0,20 kg 21,5cm x 7,5cm x 6,5cm
50 4026397285970 10,90 kg 40cm x 34cm x 46cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
13055500-Manual-46340-1.300-de_en.pdf (147 KB) 1.300 de_en
Service document
Name Version Language
13055500-Service-14398-2.000-de.pdf (234 KB) 2.000 de
All images
Name Version Language
13055500-Images.zip
