Optional pocket transmitter for UHF-400

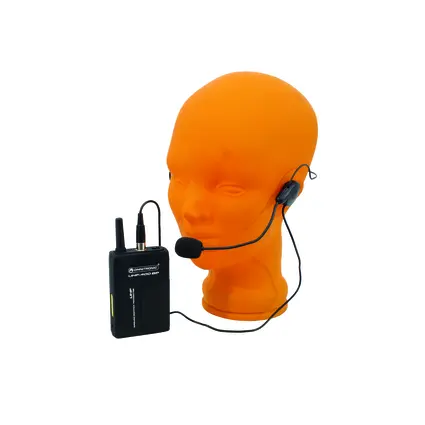

OMNITRONIC UHF-400 BP Transmitter 808MHz

OMNITRONIC

Optional pocket transmitter for UHF-400

OMNITRONIC UHF-400 BP Transmitter 808MHz

Item no. 13055495

Features
  • For transmitting the microphone signals to the receiver with the same carrier frequency
  • Operation in the low-interference UHF band
  • For 2 mignon batteries (type AA)
  • Battery capacity LED display
  • On/off operation selector
  • Incl. headset microphone (mini XLR socket)
  • License-free and approved in Germany
Technical specifications
Antenna:Rubber
Carrier frequency:UHF 808.975 MHz
Modulation:FM
Frequency stability:±0,005 %
T.H.D.:<1 % at 1 kHz
Tone signal:32.768 kHz
AF response:50-15000 Hz (±3 dB)
Maximum deviation:±48000 Hz
RF power output:10 mW max.
Power supply:2 mignon batteries (type AA)
Current consumption:approx. 65 mA, ±5 mA
Battery life:approx. 12 hours
Dimensions (L x W x H):135 x 65 x 30 mm
Weight:90 g
Frequency band:UHF
Height:13,5 cm
Depths:3 cm
Width:6,5 cm
Packaging units
PU EAN Weight Dimensions
1 4026397220087 0,24 kg 17,5cm x 14cm x 5cm
40 4026397232950 10,50 kg 54cm x 36,5cm x 31cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00043568.pdf 1.30 de/en/fr/es
Catalog pages
Name Version Language
00067128.pdf 21.00 de
00067887.pdf 21.00 en
All images
Name Version Language
13055495.zip
